📌Overview

The Zalmotek Feather Carrier Board is a SoM expansion platform designed in the Adafruit Feather form factor, allowing easy integration of Renesas RA6M1, RA8M1, and RZ/A3U SoMs and providing expansion options for various sensors, motors, and communication modules.
Notably, the official product page lists the W5500 Ethernet module as a planned compatible module, making this carrier board an attractive foundation for Feather-based SoM projects that require stable wired network connectivity.

📌Features

Modular carrier board compatible with the Adafruit Feather SoM form factor
Includes four expansion ports (SPI/I2C/UART/GPIO with 3.3V, 5V, and VIN)
Features a microSD slot (for RZ-A3UL/RA8M1 SoMs)
Built-in rotary encoder with RGB LED, Qwiic I²C connector, and GEN4-ULCD display header
XT30 power input, power switch, and support for an expansion ecosystem suited for robotics and industrial control

📌System Architecture

Centered around the Feather SoM Carrier Board, power and key interfaces (SPI, UART, ADC, GPIO, I²C) are distributed across four expansion ports, while peripherals such as a display, Qwiic sensors, rotary encoder, LED, and microSD are integrated to provide a modular configuration suitable for robotics and industrial control.

As shown in the image, the Feather SoM Carrier Board places four expansion ports—labeled PORT1 through PORT4—on the back of the board, allowing peripheral functions to be added like modules around the central Feather SoM for easy system expansion. Matching these four ports, four compatible modules are planned for sequential release, enabling users to select and combine only the functions they need:

Ethernet Module: Provides wired network connectivity and industrial communication expansion
Dynamixel Motor Driver Module: Offers a motor interface for controlling robotic joints and actuators
Particle M-SoM Breakout Module: Expands wireless and cloud-integration features using a Particle M-SoM
CAN Module: Supports CAN communication for automotive and industrial equipment

Through this ecosystem—carrier board + four expansion ports + dedicated modules—the platform enables rapid configuration, reuse, and upgrading of robotics and industrial control systems using only the necessary functional blocks.

📌Role and Application of the W5500

The Feather Carrier Board is designed to be directly compatible with the WIZnet W5500 Ethernet FeatherWing.
By using hardware TCP/IP, it reduces the processing load on the SoM and greatly improves network stability.
Wired Ethernet is essential for real-time control, sensor data streaming, and communication with industrial equipment.

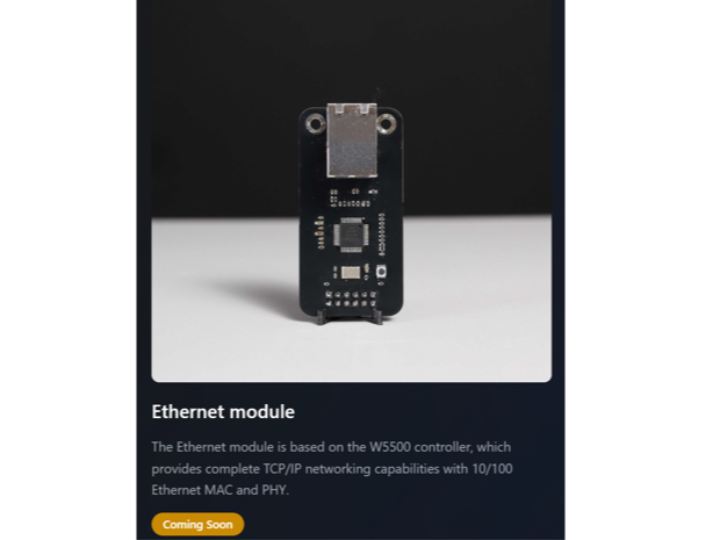

Zalmotek has officially announced a “W5500 Ethernet Module coming soon,” indicating that Ethernet expansion is becoming a core feature of the platform.

📌Market & Application Value

Application Areas

Robotics and automation control systems
Industrial controllers and IoT gateways
High-performance MCU/MPU–based research and education platforms
Prototype development for products built on the Feather ecosystem

Advantages

Compatible with a wide range of FeatherWings in the Feather ecosystem
Enables rapid product development and experimentation using SoMs
Provides all the expandability required for robotics and industrial environments

📌External Indicators

Featured on CNX Software

Source : https://www.cnx-software.com/2025/04/28/zalmotek-ra6m1-ra8m1-and-rz-a3u-soms-follow-adafruit-feather-form-factor-support-carrier-board-for-robotics-and-industrial-control/

Updated resources on GitHub

Source : https://github.com/Zalmotek/zalmotek-feather-carrier-board

📌WIZnet Strategic Value

Promotion

Source : https://x.com/particle/status/1851664804080926731

Contents

Source : https://www.particle.io/blog/how-to-build-a-parking-management-system-with-the-particle-m-som/

Source : https://zalmotek.com/case-studies/smartbuildings

Zalmotek has been producing breakout boards based on Particle’s M-SoM module, accompanied by a variety of demos and tutorials created through its own content production service. These materials are promoted not only by Zalmotek but also through Particle’s official social media channels, resulting in strong visibility and outreach.

This model can be applied directly to WIZnet as well. The Zalmotek Feather Carrier Board has announced official compatibility with the W5500 Ethernet FeatherWing, and by applying the same structure—extension board development → content creation → joint promotion—WIZnet can significantly expand awareness of the practical value of the W5500.

📌Summary

The Zalmotek Ethernet Module, based on the Feather Carrier Board, is a powerful platform that enables Renesas SoMs to be expanded within the Feather ecosystem alongside networking, sensing, and motor control capabilities. The planned official compatibility with the W5500 Ethernet FeatherWing is a major advantage for implementing stable wired connections required in industrial and robotics applications. It is a highly useful option for embedded projects that demand high-reliability networking.
