RC2014 Wiznet 5300

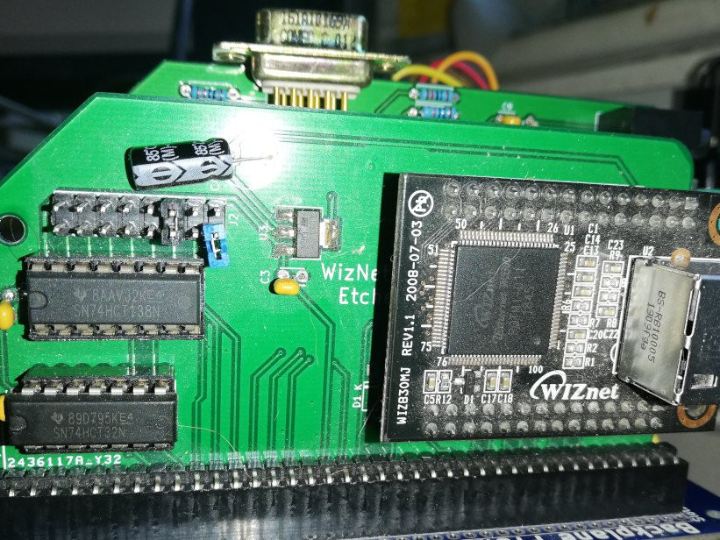

A fairly simple adapter for the WIZ830MJ to connect it to the RC2014 bus.
2
Components
Hardware componentsProject description
The WizNet 830MJ contains pretty much everything we need apart from a small amount of chip select logic on a single carrier board. The RC2014 interface is extremely simple. A 74HCT138 generates a base chip select signal, a 74HCT32 qualifies the read/write signals to the WIZ830MJ and an LD1117 generates 3.3v to supply the WizNET. The I/O interfaces are 5v tolerant so the only remaining issues to deal with are the timing, the reset and the voltage shifting. The reset relies upon the RC2014 backplane reset, which usually works but isn't perfect - it would be good to add a proper reset control…
