Fabric Formwork
Develop a mean of replicable linear concrete (cement) component manipulation utilizing robotically-controlled, flexible fabric formworks.
7
Components
Hardware components
Arduino - Arduino Ethernet Rev. 3
x 1
Project description

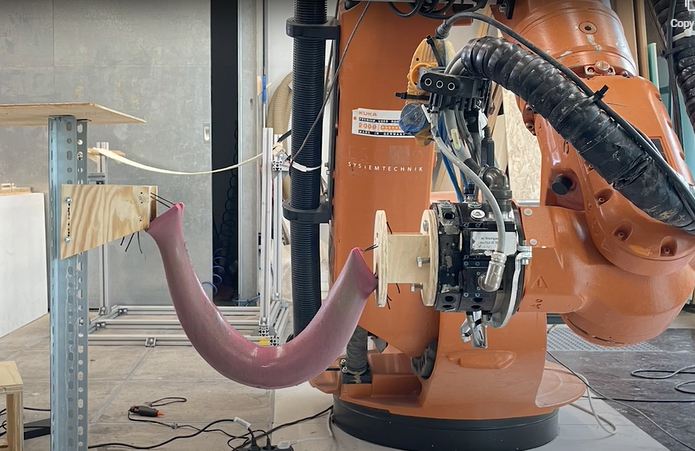

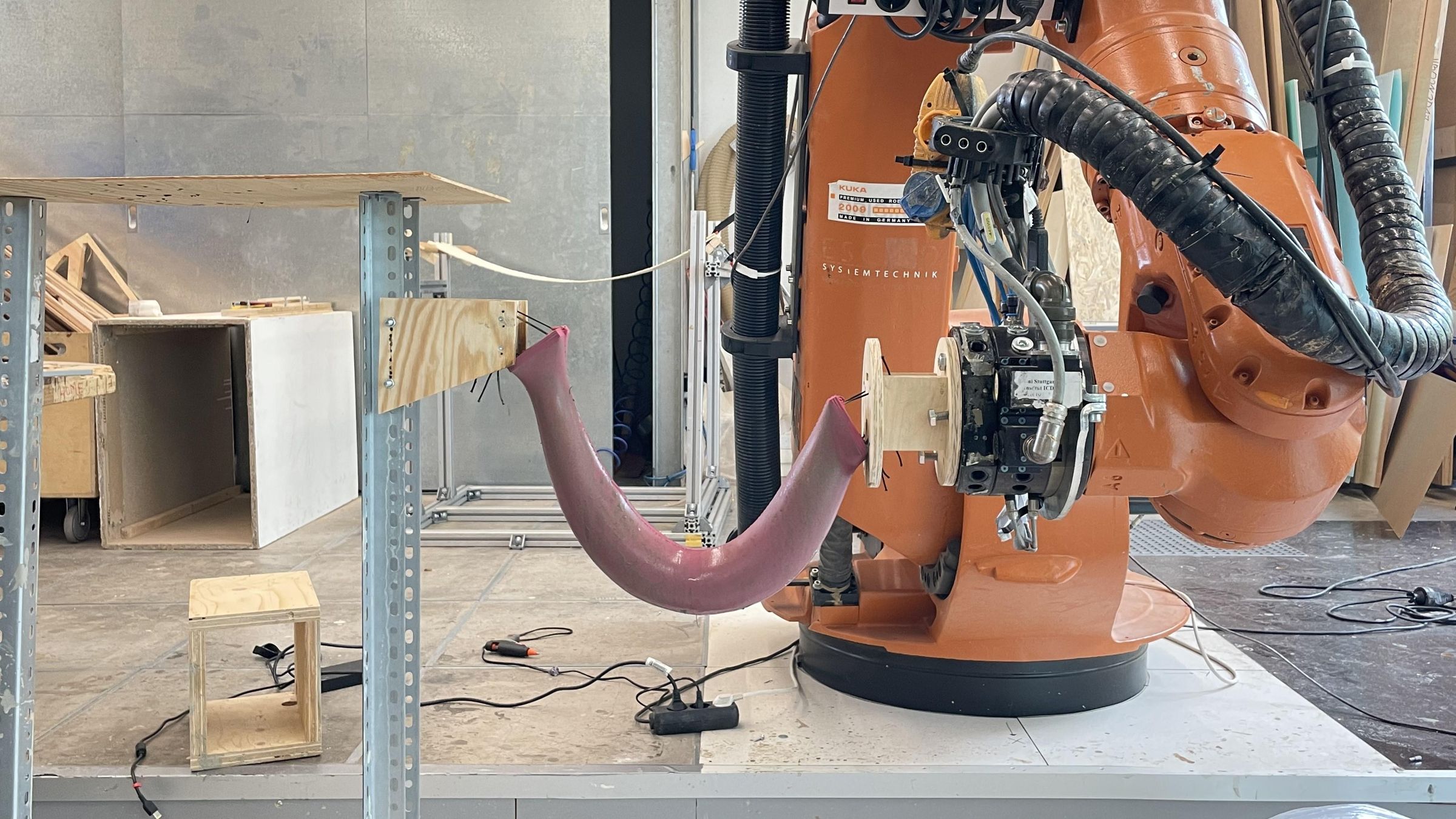

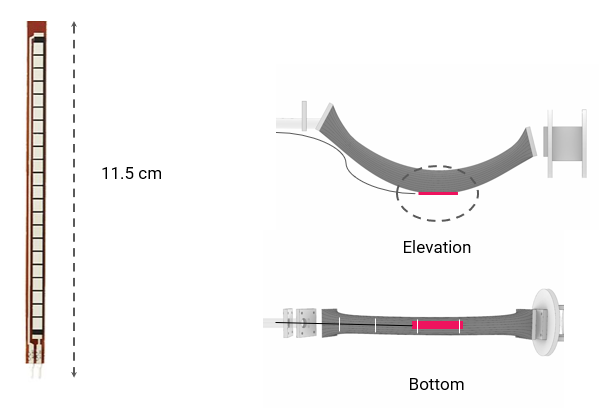

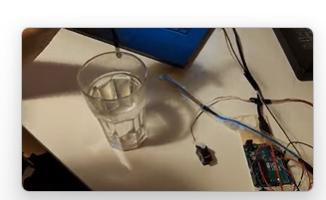

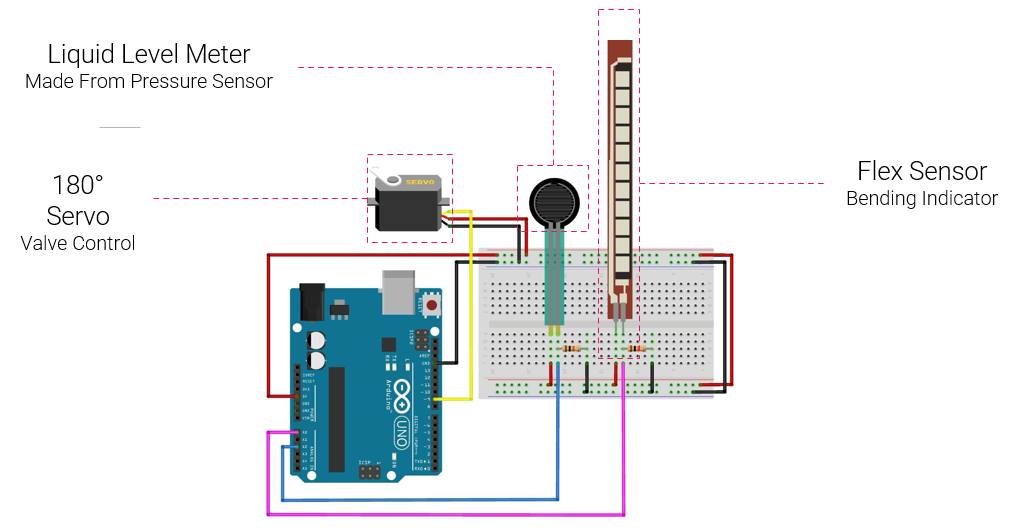

Introduction : Traditional rigid formwork has distinct disadvantages for casting complex forms from concrete. Moreover, the wood formwork of a specific component can hardly be reused after disassembly. This project focuses on developing a mean of replicable linear concrete (cement) component manipulation utilizing robotically-controlled, flexible fabric formworks. Flex Sensor - Measure the Curvature -Model: RP-C10-ST -Pressure measuring range: 20 g ~ 2 kg -Activation time: less than 0.01 S -Response time: <10 ms -Waterproof Pressure Sensor - Check if casting finishes -Model: SEN0064 -Flat…
