Big Alphanumeric Display Board – A pile of ultra-bright palm-sized 16-segment alphanumeric displays with network-based control

wiz_chandana

Published February 02, 2023

Original author: Ben Patterson · AustraliaOriginal source (new tab)

Alpha Centauri

Project description

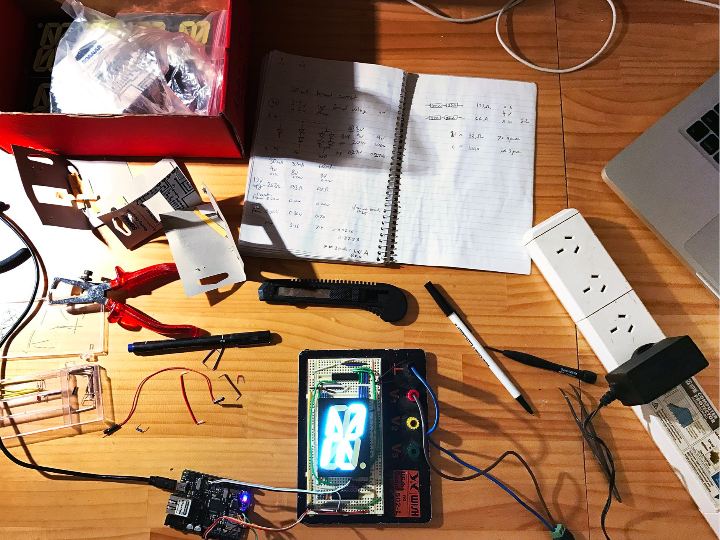

This one has been sitting in a box for years. At the time I wasn't entirely sure how to power these huge and bright displays, but I did get the ideas around control right. Using high power output shift registers, the 128 segments can be individually controlled from a single set of data, clock and enable pins. Prototyping with the Freetronics Ethernet, an Arduino reference design with WizNet ethernet control is custom built into pluggable, multi-purpose modules supporting open lighting control protocols. COMPONENTS 16×TPIC6B595 Power Logic 8-Bit Shift Register 8×BL-S230B-12 LED NUMERIC…
