Arduino Ethernet Shield

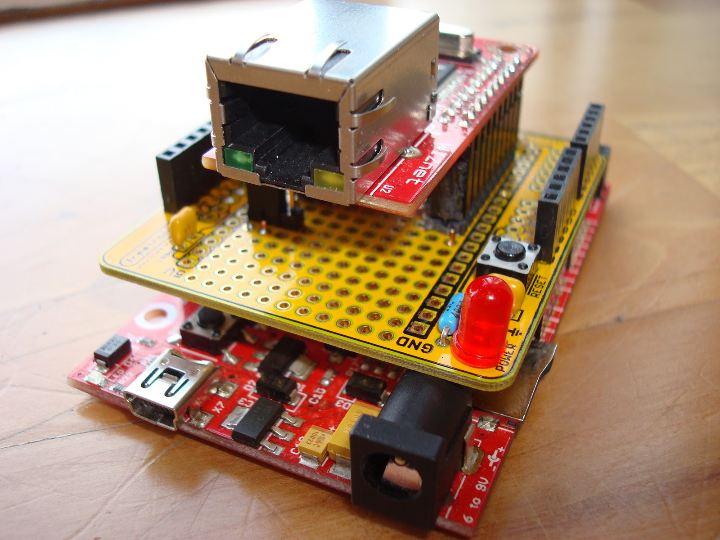

Here is another Ethernet shield for Arduino. It mates an Arduino Duemilanove or compatible board with the WIZnet WIZ811MJ module.

WIZnet

Published March 03, 2023

Original author: davevw · United States of AmericaOriginal source (new tab)

Arduino Ethernet Shield

Components

Hardware components
WIZ811MJ

WIZnet - WIZ811MJ

x 1

Project description

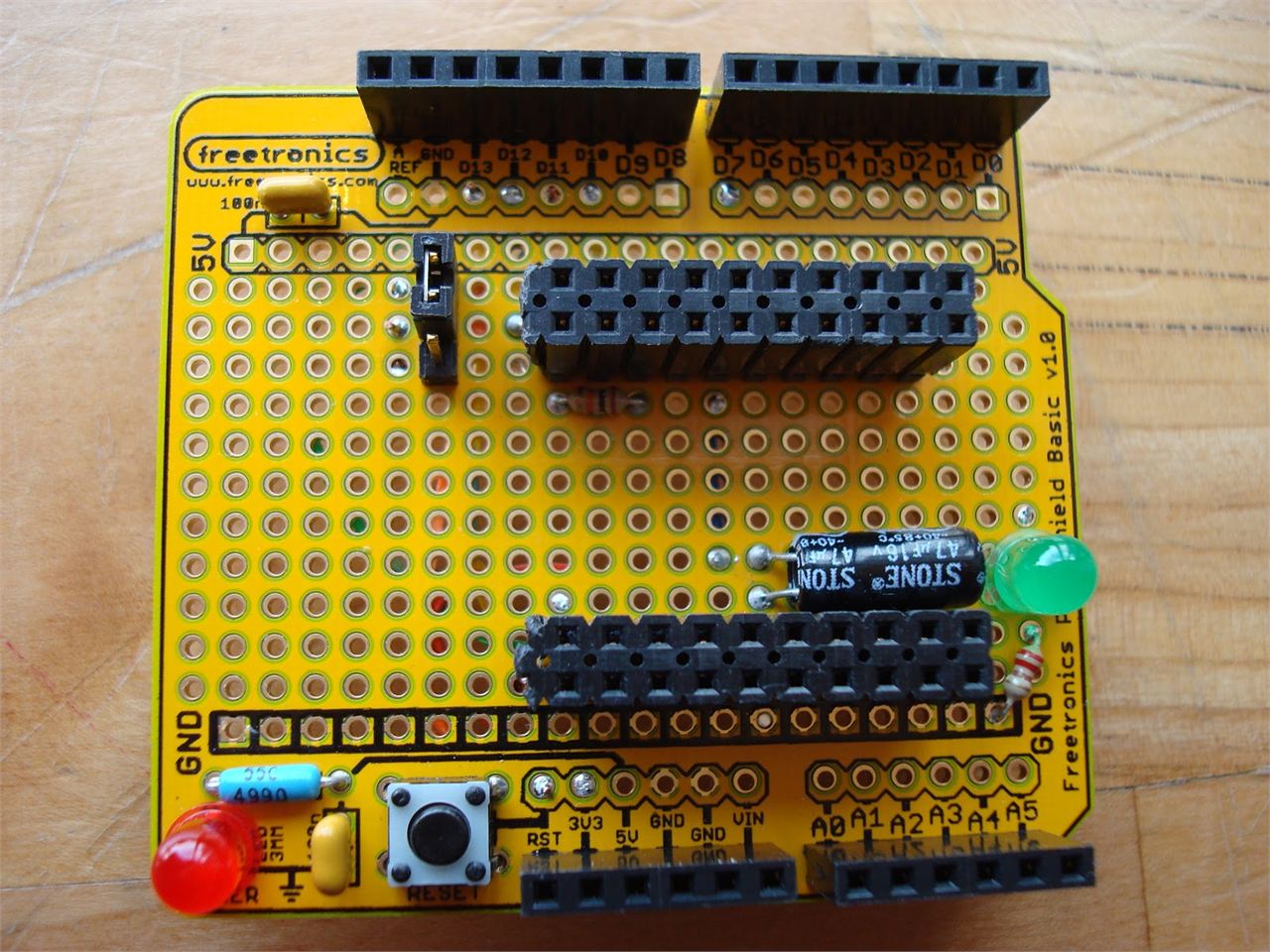

Original : https://techwithdave.davevw.com/2012/03/arduino-ethernet-shield.html Author : Dave Van Wagner Published On : 2012-03-19 The author made a board by hand using ProtoShield Pro for Arduino. This board is for connecting the WIZ811MJ module to the Arduino Duemilanove. WIZ811MJ is based on the W5100 Ethernet chip and includes all the necessary hardware and software to implement an Ethernet interface. The W5100 chip provides a full-featured TCP/IP stack with support for TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. It also includes a 10/100Mbps Ethernet MAC and PHY, as well as…
