Project description

Original : https://github.com/raduleo19/Production-Line-Monitor

Production-Line-Monitor

I developed this solution to monitor a production line in real time.

Hardware

For input, you can use sensors of your choice, in this case I used 4 mechanical limit switches with rollers, with 4 pull-down resistors.

To know the date and time I used a real time clock module, namely RTC3231.

For the web server and data storage I used a W5100 Ethernet Shield, which also contains an SD card slot.

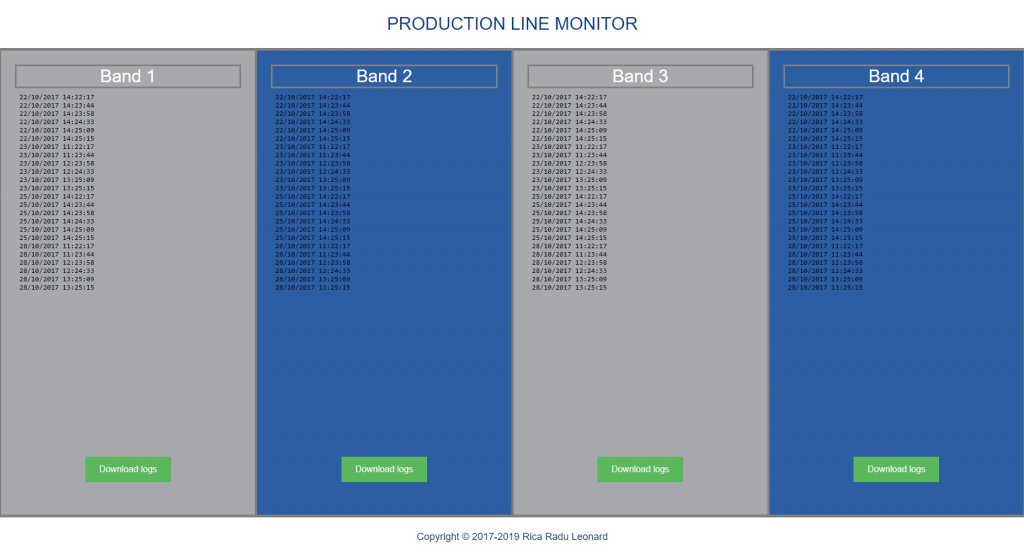

Production-Line-Monitor, Hardware
