Model Railroad DCC Controller & Decoder Experimental Environment Part 40
Project using Railroad DCC controller
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

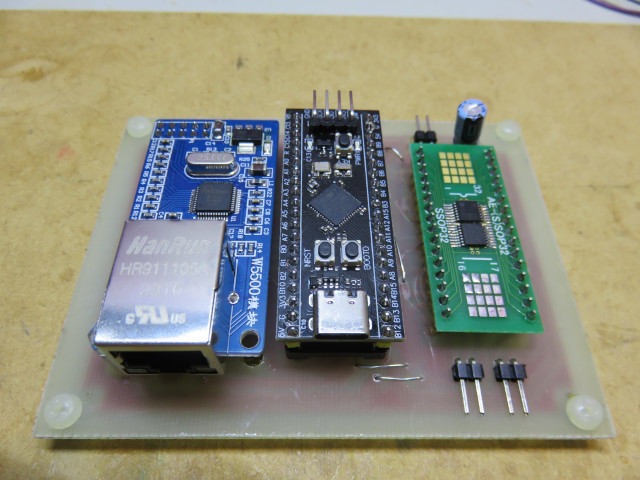

The blog post on Seisaku Memocyou provides an in-depth guide on building a compact LAN-compatible DCC-EX command station using the STM32F411 BlackPill microcontroller and various modules. Here is a detailed explanation with subheadings: Introduction The author introduces the goal of creating a small, LAN-compatible DCC-EX command station. This project is part of a series on model railway DCC controllers. Components and Circuit Diagram The post lists the required components, including the STM32F411 BlackPill, LAN8720 module for Ethernet, and various other supporting modules. A detailed…
