Raspberry Pi Pico Relay Board

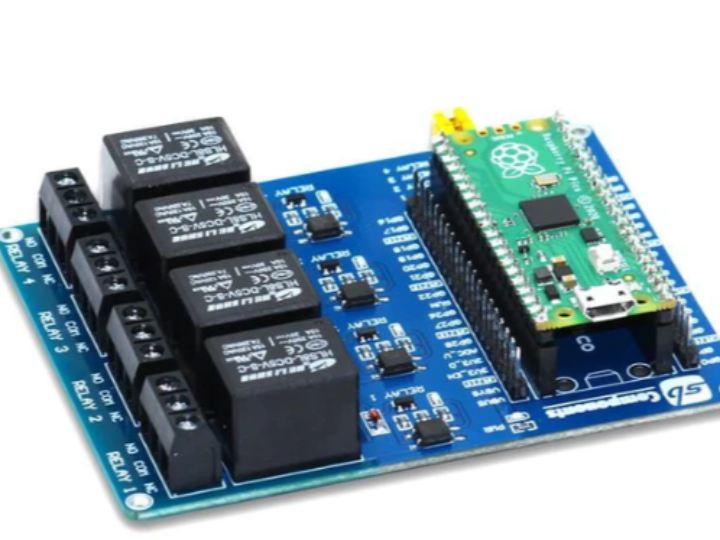

The Raspberry Pi Pico Relay Board allows your Raspberry Pi Pico to control up to 4 devices with loads up to 240V AC / 7A or 30V DC / 10A!
0
Project description
The Raspberry Pi Pico Relay Board allows your Raspberry Pi Pico to control up to 4 devices with loads up to 240V AC / 7A or 30V DC / 10A! The board uses an optocoupler that allows the circuit to transmit an electrical signal between two isolated circuits through light energy. The optocouplers work to prevent the high voltages in one part of the circuit from affecting the other part of the circuit. Each relay also includes an indicator LED for easy debugging. Relay control jumpers allow users to control the relays by custom pins other than the default pins. A Raspberry Pi Pico is not included…
