Embedded 101: Unusable Registers in MCUs – TBMan Only Serves as Identifier
This article introduces RP2040 Sysinfo identification registers, Syscfg system configuration registers and the simulation-only TBMan module.
0
Project description

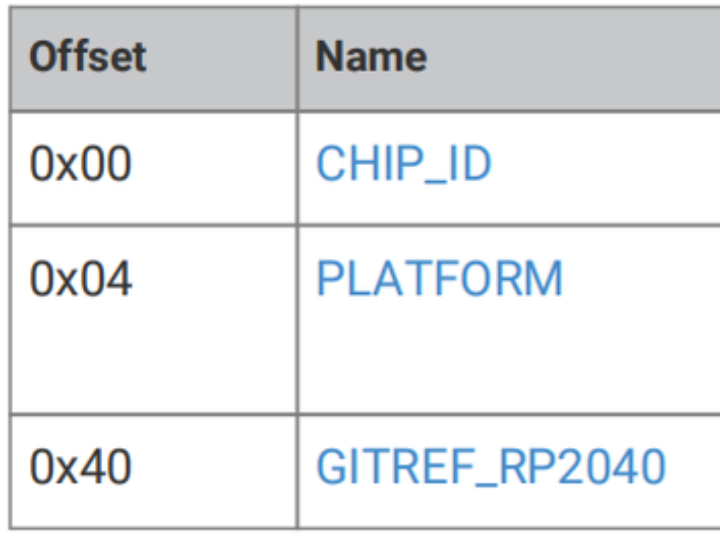

【Preliminary Note】The original hardware example in this article was written based on the RP2040. The actual hardware used in this hands-on demonstration features the W55RP20 as the main controller chip. The circuit logic and UF2 flashing operation principles are universally applicable, with only the main controller model differing. The original chip model mentioned in the circuit descriptions below is provided for reference purposes only. 1. Sysinfo Register Sysinfo registers can be understood as the "About This Device" information area of a chip: just like the page on a mobile phone where…
