Popular Science: What is MicroPython REPL?

It explains MicroPython REPL on Raspberry Pi Pico, its interactive debugging functions and commonly used shortcut keys.

ruilixin6

Published July 30, 2026

Project description

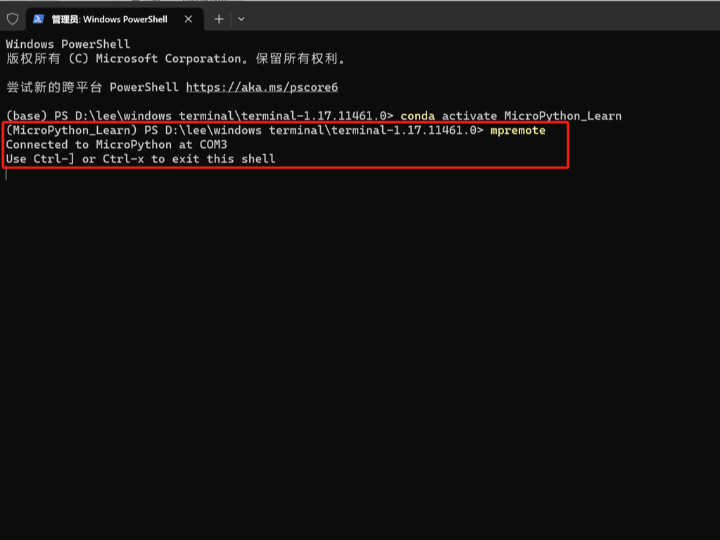

【Preliminary Note】The original hardware example in this article was written based on the RP2040. The actual hardware used in this hands-on demonstration features the W55RP20 as the main controller chip. The circuit logic and UF2 flashing operation principles are universally applicable, with only the main controller model differing. The original chip model mentioned in the circuit descriptions below is provided for reference purposes only. After we finish flashing the firmware to our Raspberry Pi Pico, if we use a remote terminal to connect the computer to the Raspberry Pi Pico via serial…
