Embedded 101: Pico GPIO Interrupts – LED Control, Far More Efficient Than Polling
It shows GPIO external interrupt experiment on Fengya No.1 board to toggle LED, including debounce, type annotation and PEP8 coding standards.
0
Project description

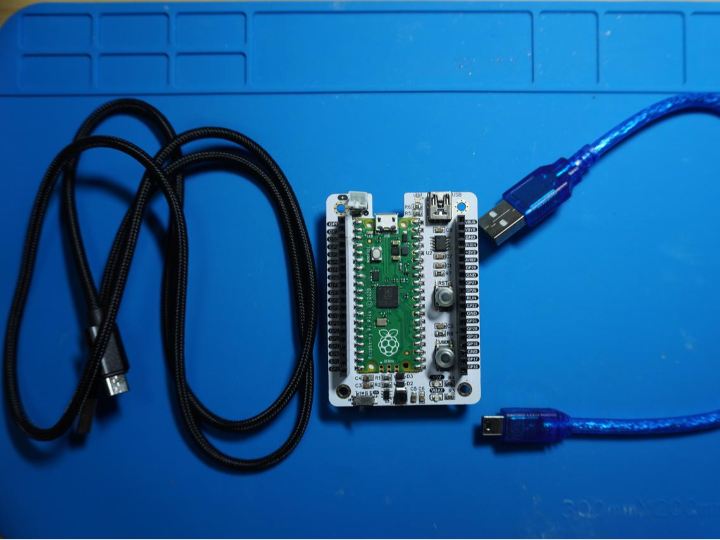

【Preliminary Note】The original hardware example in this article was written based on the RP2040. The actual hardware used in this hands-on demonstration features the W55RP20 as the main controller chip. The circuit logic and UF2 flashing operation principles are universally applicable, with only the main controller model differing. The original chip model mentioned in the circuit descriptions below is provided for reference purposes only. In the following experiment, we use Fengya No. 1 Board - Universal Compatible Expansion Board. When using external interrupts, we need to specify which…
