RGB Led data transmission through Ethernet
RGB Led data transmission through Ethernet
0
Components
Hardware componentsWS2812B
x 64
RGB LED
thonny.org - Thonny
x 1
CircuitPython 7.2.5
x 1
Visual Studio 2019
x 1
Project description
# Overview

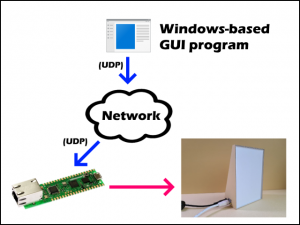

This project shows you how to send WS2812B data file through Ethernet.
# Hardware

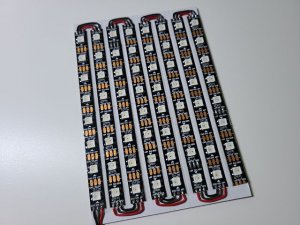

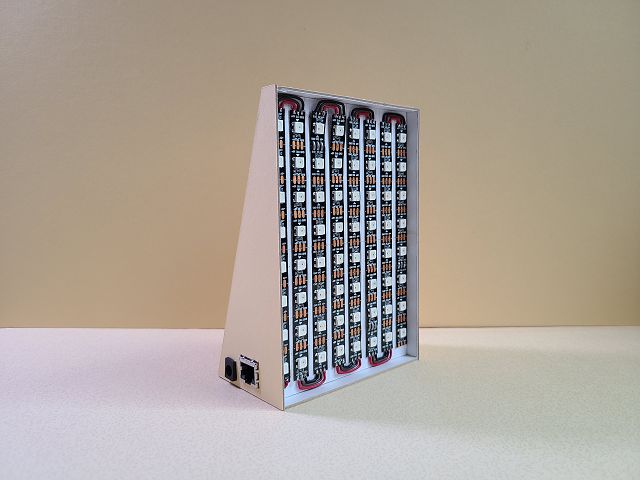

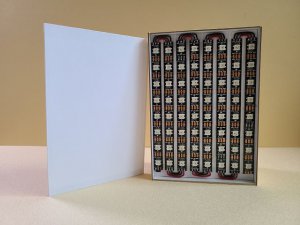

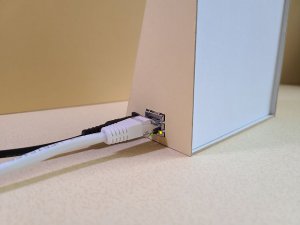

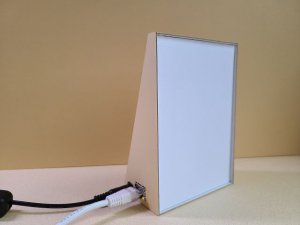

I made a matrix display board using 64 pcs of WS2812B leds.
# Software (Transmitter - Host)

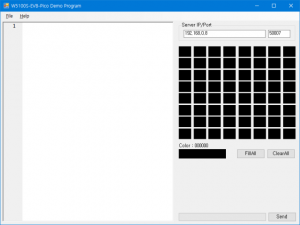

I have developed a Windows-based GUI program to use the led data easily. This application can control each and whole leds and also send pre-written RGB led script file through Ethernet.
# Software (Receiver - Slave)

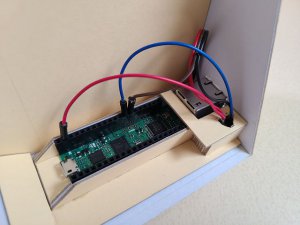

If GUI program send a file to W5100S-EVB-Pico through Ethernet UDP packet, W5100S-EVB-Pico receive until getting whole data. after then execute a file on W5100S-EVB-Pico.
