STM32CubeMX series | Use bear pie hardware SPI to drive W5500 Ethernet module
his article records in detail how to use STM32CubeMX to configure the hardware SPI peripheral of STM32L431RCT6 to communicate with W5500, an
4
Components
Hardware components
WIZnet - W5500
x 1
Project description

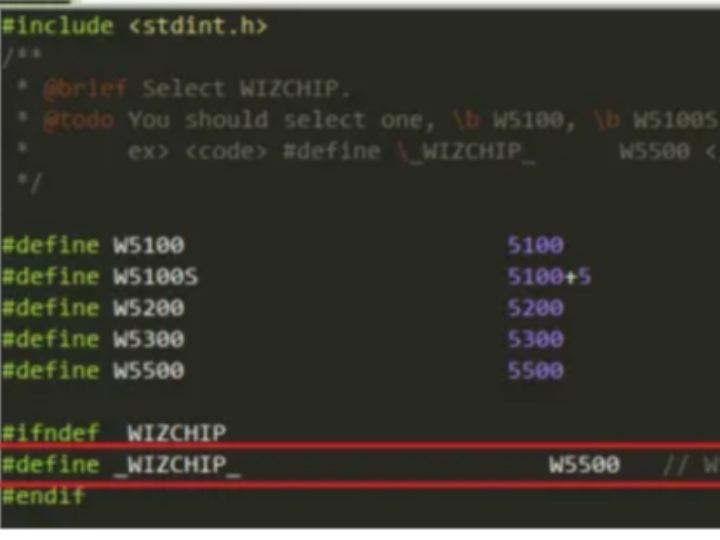

This article records in detail how to use STM32CubeMX to configure the hardware SPI peripheral of STM32L431RCT6 to communicate with W5500, and transplant the official W550 driver to drive the Ethernet module. 1. Preparations hardware preparation development board First, you need to prepare a development board. Here I am preparing the STM32L4 development board (BearPi): W5500 Ethernet Module Here I use the common Ethernet module W5500, which integrates the TCP/IP protocol stack: software preparation It is necessary to install Keil-MDK and the corresponding package of the chip in order to…
