Ultra-low-cost, network-based HDMI output module

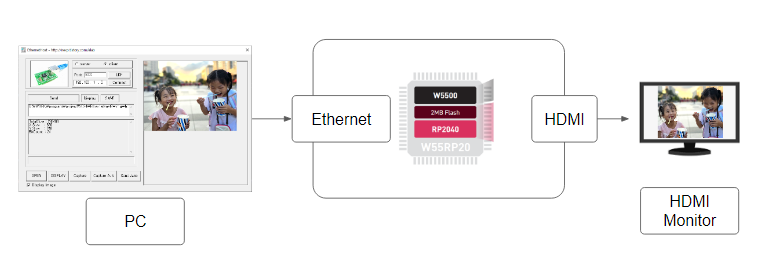

This project captures any image or screen in real-time, sends it over Ethernet, and outputs it to HDMI.

nexp

Published October 19, 2024

3 Contests

Ultra-low-cost, network-based HDMI output module

Components

Hardware components
W55RP20-EVB-Pico

WIZnet - W55RP20-EVB-Pico

x 1

W55RP20

WIZnet - W55RP20

x 1

Software Apps and online services
WIZnet RP2040-HAT-C

WIZnet - WIZnet RP2040-HAT-C

x 1

Project description

The W55RP20 is a System in Package (SIP) that combines the W5500, a low-cost Ethernet solution chip, and the low-cost RP2040 with ARM dual-core base into one chip.
It seems to be a very good chip for a small and inexpensive Ethernet solution.

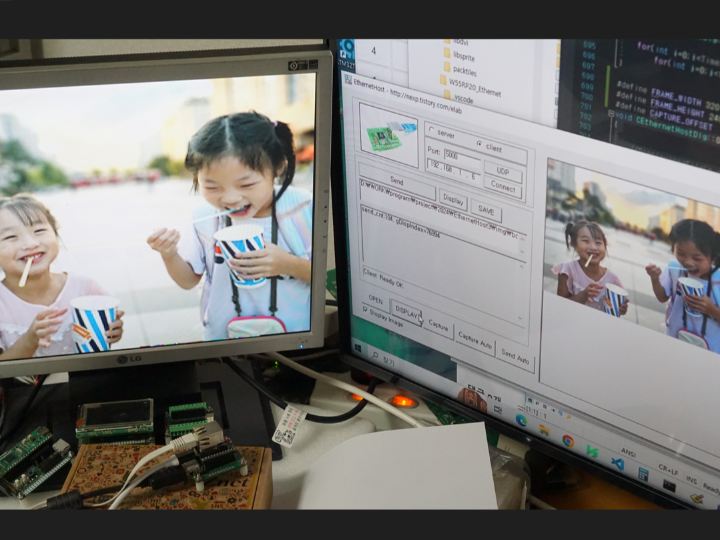

 As a small and inexpensive network example, we want to build an inexpensive module that can output an advertisement image sent over Ethernet to an HDMI monitor.

Ultra-low-cost, network-based HDMI output module



https://nexp.tistory.com/category/RaspberryPi/W55RP20



Documents

  • W55RP20_NET_HDMI Project git

    W55RP20 Code github

  • W55RP20 Building Guide

    W55RP20 Building Guide Link
