W5500 Ethernet Shield +Raspberry Pi Pico+ Wizfi360

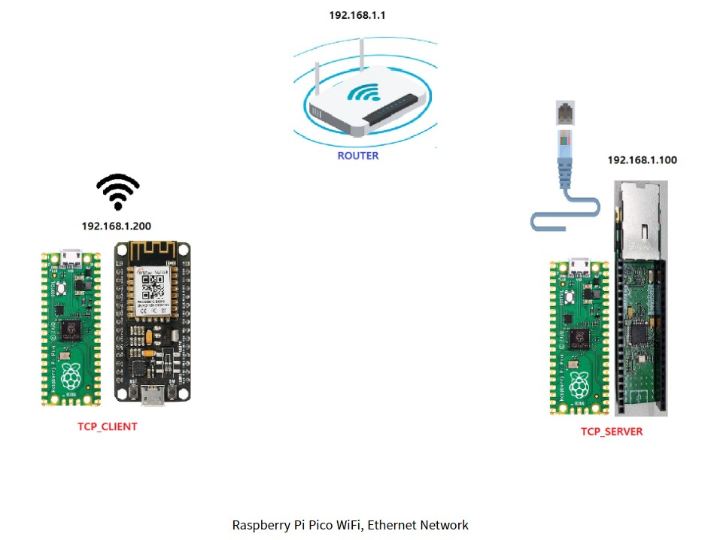

W5500 Ethernet Shield (Raspberry Pi Pico) Server + Wizfi360 WiFi Module (Raspberry Pi Pico)Client Passes Temperature Measurement Data
3
Components
Hardware components
WIZnet - WizFi360
x 1
Raspberry Pi - Raspberry Pi Pico
x 1
WIZnet - W5500 Ethernet Shield
x 1
Project description

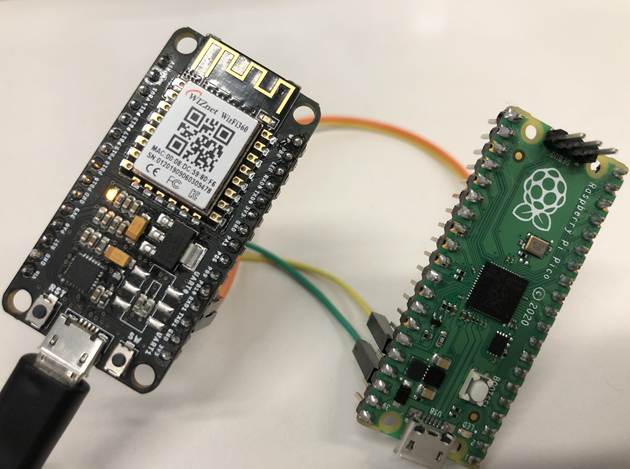

ESTABLISHING SOCKET COMMUNICATION OVER TCP/IP.
Conceptual description
*PROTOCOL
Protocols are originally diplomatic languages, meaning rituals or commitments between states, and in communication, communication protocols, commitments that allow one system to accept communication with another system smoothly.
*IP
A unique identifying address assigned to computers around the world
*PORT
A port is a unique number that must be assigned by a process internally on the host in order to communicate over the network. Because this value is used to identify a process that is communicating with a network within one host, different processes within the same host cannot have the same port number. That is, a number that identifies a program within the same computer.

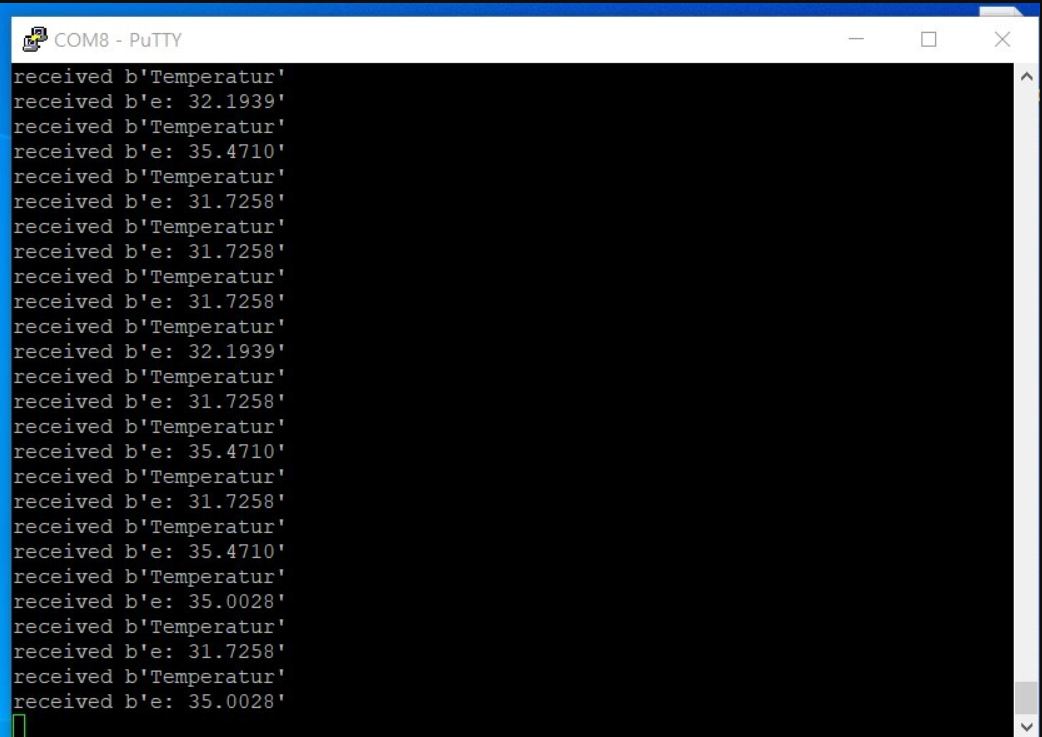

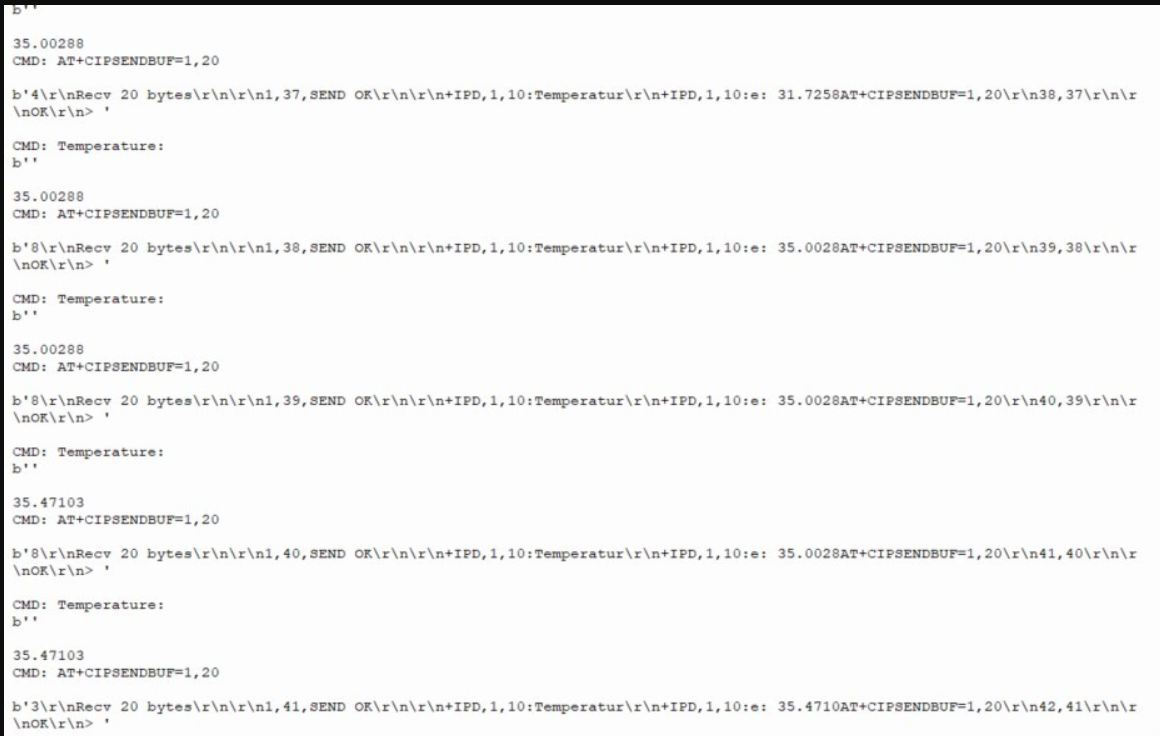

Transmission of temperature measurement data from client to server.
WizFi360 Client
W5500 Server
