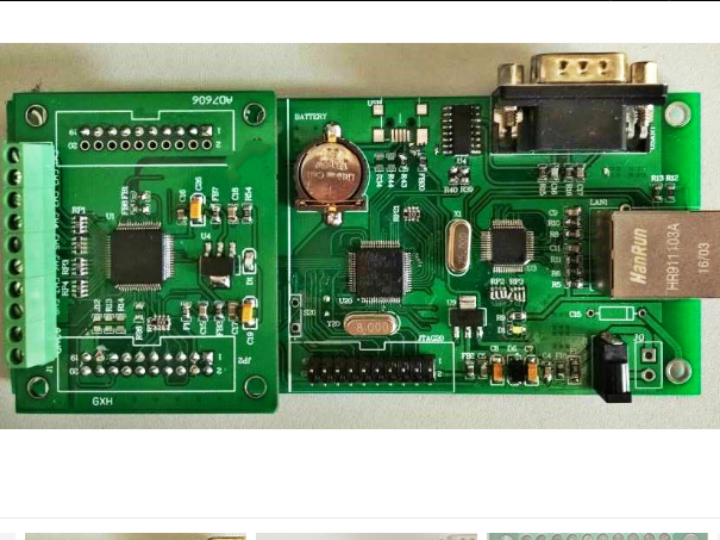

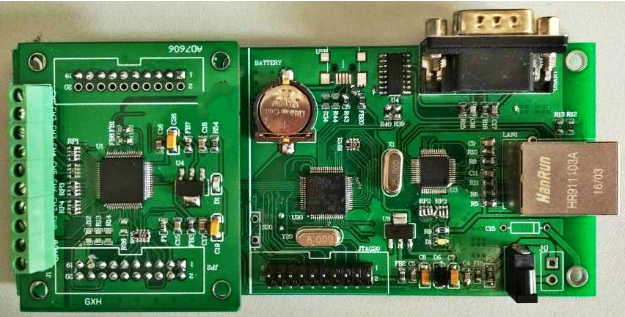

STM32+W5500+AD7606 8-channel network data acquisition board design

The product adopts 32-bit floating-point DSP, STM32F103, the main frequency is 72MHz, the memory is 48KB, and the FLASH is 256KB.

WIZnet

Published October 31, 2022

Original author: cirmall · ChinaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

Onboard peripherals
※8-channel 16-bit high-precision AD acquisition chip AD7606
※2MB serial FLASH
※Internal RTC high-precision real-time clock can be used for time synchronization
※One RS232 serial port can be used for data printing or program programming
※20-pin JTAG, compatible with uLink and JLink, can program and emulate online
※ SD card slot (back), can insert up to 32GB SD card, the board can store data files through the file system
※One 10/100M Ethernet port can realize communication with Ethernet devices.
