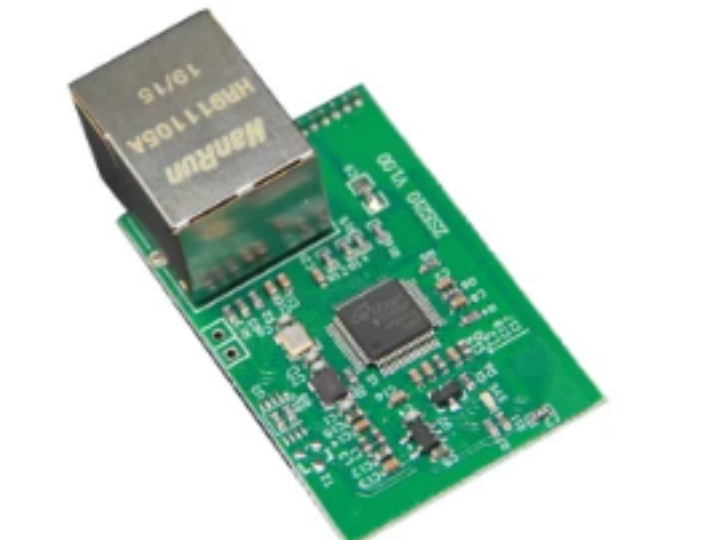

Ethernet Module Ttl Serial Port Transparent Transmission Embedded Serial Networking Server
It supports simultaneous connection with 4 sockets,each socket can be individually configured as TCP server,TCP client,UDP Master,UDP Slave.
3
Components
Hardware components
WIZnet - W7500
x 1
Project description
INTRODUCTION Product Characteristics Characteristic Description Power supply DC3.5V~6V 500mA Power consumption DC5V supply Online standby current ≈40mA Network port 10M/100M self-adapt Serial port TTL level Baud rate:300-115200bps Data bits:7/8bits Parity: N/E/O Stop bits: 1/2bits Temperature range Working temperature: -25ºC- +70ºC Storage temperature: -40ºC- +85ºC Humidity range Relate humidity: ≤95% no condensation Physical Characteristic Length: 44mm Width: 28mm High:20mm Net weight: 10g Interconnection connector 1.27mm straight pin The version without network port has led out pins HOW TO…
