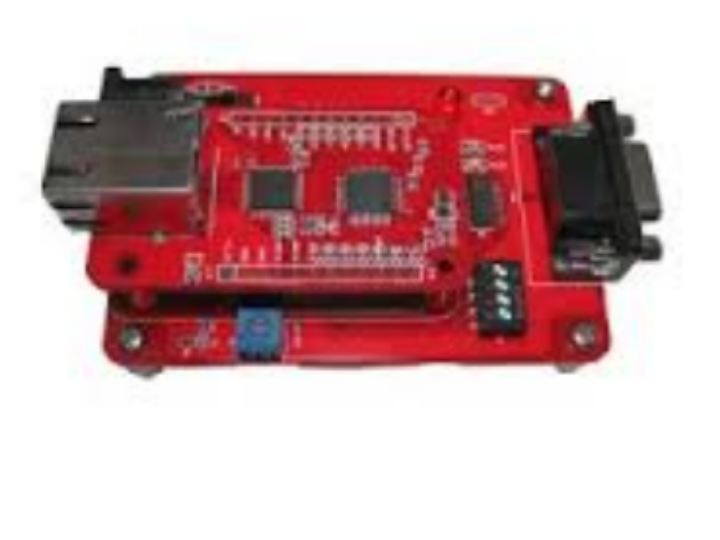

ECM5200-WIO + Test Board

ECM5200-WIO product is a module that can remotely analog input/output or digital input/output through WEB server mode or TCP/UDP communicati

WIZnet

Published September 27, 2022

Original author: eleparts · South KoreaOriginal source (new tab)

ECM5200-WIO + Test Board

Components

Hardware components

WIZnet - W5200

x 1

Project description

Main Specifications and Features I/O 1. UART: 1 channel 2. Digital output : 4 channels 3. Digital input : 4 channels 4. PWM output : 2 channels (256 step) => Can be used for lighting brightness / motor speed control 5. Analoginput(10bit ADC): 2channels+supply voltage(1channel) + MCUtemperature(1channel) 6. UserWEBpage: 16KB 7. Send/receive statusLEDcontrol output: 2 EA l Download user web page l Support login / logout function in WEB server mode l Built-in simple communication protocol forgeneral TCP/UDP communication l Firmware upgrade function to support various devices and environments l…
