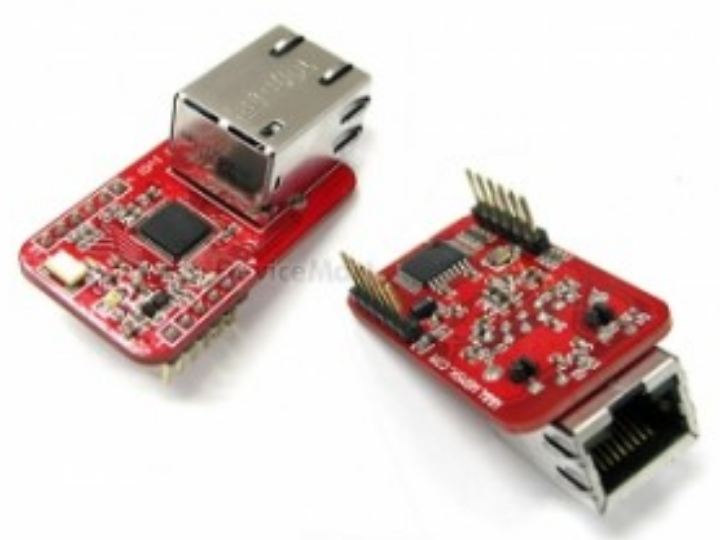

[ECM5200-UART] Ultra-small Ethernet to serial converter module

ECM5200-UART is an Ethernet <-> serial conversion module that converts UART protocol to TCP/IP protocol

WIZnet

Published September 27, 2022

Original author: eleparts · South KoreaOriginal source (new tab)

[ECM5200-UART] Ultra-small Ethernet to serial converter module

Components

Hardware components

WIZnet - W5200

x 1

Project description

[ECM5200-UART] Ultra-small Ethernet to serial converter module

Main Specifications and Features

[ECM5200-UART] Ultra-small Ethernet to serial converter module

l  Can be used by connecting to a serial device

Add Internet function to serial device quickly and easily

Firmware upgrade function to support various devices and environments

l  Subminiature 24.2mm x 43.2mm size

l  Provides Configuration Tool Program (ecmConfig) for easy setting

l  Supports User Password function for security

l  10/100 Base-T Ethernet interface

l  Auto MDI/MDIX ( Direct / Cross Cable Recognition )

l  UART: 3.3V-TTL level , 1200 ~ 115.2K bps, supports

l  Secured stability and reliability by W5200 hardware chip

l  Static ( static IP), DHCP ( dynamic IP) setting support

l  Supports easy access (DNS) functionthrough hostname

l  Keep Alive support

l  Equipped withoperation status LEDs , transmit / receive status LED control signal : 2EA => Easy to check operation .

l  Serial <-> TCP/IP virtual driver VSP (Virtual Serial Port) program provided







[ECM5200-UART] Ultra-small Ethernet to serial converter module

Provide setting program (ecmConfig)

[ECM5200-UART] Ultra-small Ethernet to serial converter module



The ecmConfig program is a program that supports firmware upgrade or network configuration easily.

[ECM5200-UART] Ultra-small Ethernet to serial converter module







[ECM5200-UART] Ultra-small Ethernet to serial converter module

Provides VSP (Virtual Serial Port)

[ECM5200-UART] Ultra-small Ethernet to serial converter module





It is a program that converts serial communication program to enable TCP/IP communication through VSP. If you use VSP, you can use the
serial communication program as it is without modification.





[ECM5200-UART] Ultra-small Ethernet to serial converter module
