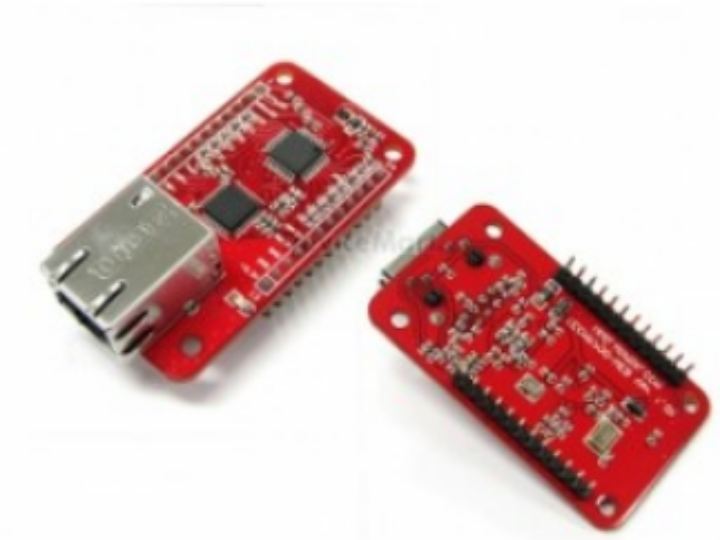

[ECM5200-WIO] Remote Ethernet I/O Control Module
ECM5200-WIO product is a module that can remotely analog input/output or digital input/output through WEB server mode or TCP/UDP communicati
3
![[ECM5200-WIO] Remote Ethernet I/O Control Module](/upload/_thumb/1280/project/6880/cover43.jpg.jpg)
Components
Hardware componentsWIZnet - W5200
x 1
Project description
![[ECM5200-WIO] Remote Ethernet I/O Control Module](/upload/_thumb/1280/mirror/body/6061220e87f46ede1190.jpg.jpg){kind=small} | Main Specifications and Features |
| |
![[ECM5200-WIO] Remote Ethernet I/O Control Module](https://img2.eleparts.co.kr/goods_old/design/product_file/page_img/product_bar.jpg){kind=small}
I/O | 1. UART: 1 channel 2. Digital output : 4 channels 3. Digital input : 4 channels 4. PWM output : 2 channels (256 step) => Can be used for lighting brightness / motor speed control 5. Analoginput(10bit ADC): 2channels+supply voltage(1channel) + MCUtemperature(1channel) 6. UserWEBpage: 16KB 7. Send/receive statusLEDcontrol output: 2 EA |
l Download user web page | |
l Support login / logout function in WEB server mode | |
l Built-in simple communication protocol forgeneral TCP/UDP communication | |
l Firmware upgrade function to support various devices and environments | |
l Secured stability and reliability by W5200 hardware chip | |
l Provides Configuration Tool Program (ecmConfig) for easy setting | |
l User ID/Password function for security | |
l 10/100 Base-T Ethernet interface | |
l Auto MDI/MDIX ( Direct / Cross Cable Recognition ) | |
l UART: 3.3V-TTL level , 1200 ~ 115.2K bps, supports | |
l Static ( static IP), DHCP ( dynamic IP) setting support | |
l Supports easy access (DNS) functionthrough hostname | |
l Keep Alive support | |
l Equipped withoperation status LEDs , transmit / receive status LED control signal : 2EA => Easy to check operation . | |
l Serial <-> TCP/IP virtual driver VSP (Virtual Serial Port) program provided | |
| Provide setting program (ecmConfig) |
The ecmConfig program is a program that supports firmware upgrade or network configuration easily.
| |
| Ex) Smartphone access to web server |
| |
The picture below shows the screen connected with a smartphone by operating the ECM5200-WIO as a web server using the DDNS function of the router .
| Provides VSP (Virtual Serial Port) |
| |
It is a program that converts serial communication program to enable TCP/IP communication through VSP. If you use VSP, you can use the
serial communication program as it is without modification.
| Related products |
| |
Test Board The test
board that can test the ECM5200-WIO board is composed as follows.
