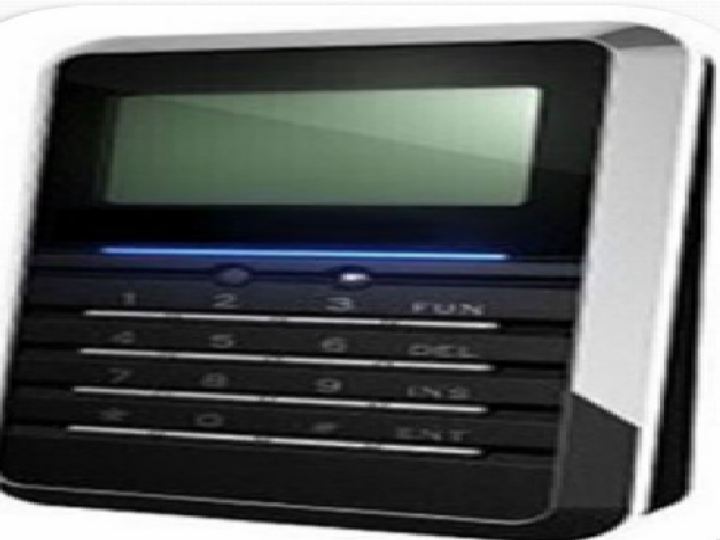

Attendance Monitoring System using RFID Technology
The initial policy on attendance monitoring was approved by the Academic Standards and Development Committee (ASDC).
3
Components
Hardware components
WIZnet - WIZ110SR
x 1
SparkFun - RFID Reader ID-12
x 1
FTDI Chip - VDIP1
x 1
Project description
The Full system RFID Reader ID-12 Features: 5V supply 125kHz read frequency EM2400 64-bit RFID tag compatible 9600bps TTL and RS232 output Magnetic stripe emulation output 100mm read range . VDIP USB Host Controller Description: The VDIP1 module is an MCU to embedded USB host controller development module for the VNC1L IC device. Features: Single 5V supply input from USB connection. Built-in 8/32 bit MCU. Handles the FAT file structure via a simple command set. Program or update firmware for data transfer function. Low power operation (25µA at running,2µA at stand By). 24C65 EEPROM…
