Create an LED electronic display controller using Wiz110sr

Components

Hardware components

Project description





This document provides a step-by-step guide for hardware connections using an RJ45 cable and for configuring software settings through both the WIZ110SR Configuration Tool and Davit  software. It outlines how to set the IP configuration, designate port numbers, and verify that communication between the signboard and PC is functioning properly.



Create an LED electronic display controller using Wiz110sr



Create an LED electronic display controller using Wiz110sr

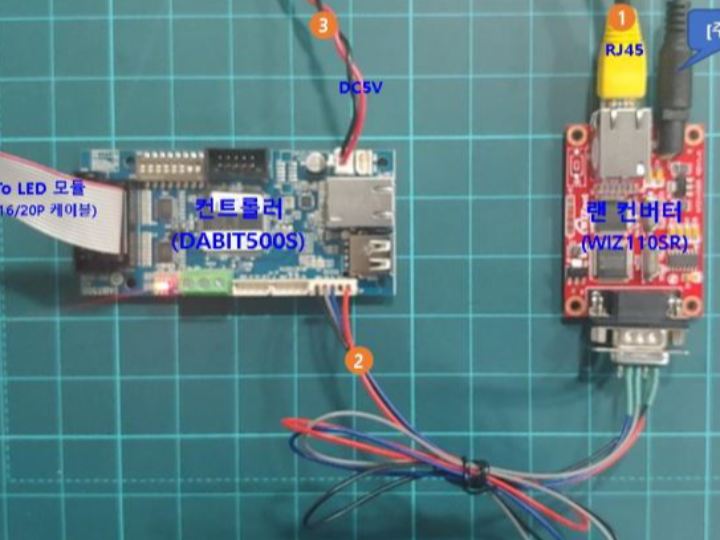

While the LAN converter requires a separate DC5V power supply, connecting a 'power supply jumper wire' on the back of the LAN converter allows for direct power supply from the DABIT signboard controller through the DC5V terminal (red) of the RS232 cable.



Create an LED electronic display controller using Wiz110sr

For detailed instructions, refer to the full manual.
