ETH_CANable: IRIS-ITS’s W5500-Based Dual CAN-to-Ethernet Bridge

Overview

CAN is widely used inside robots for communication between motor controllers, actuators, sensors, and embedded control boards. Development PCs and higher-level control systems, however, are often connected through Ethernet.

ETH_CANable bridges these two environments.

Instead of connecting a USB-to-CAN adapter directly beside a PC, ETH_CANable uses the W5500 to make two CAN buses accessible as an Ethernet endpoint. A host computer can configure CAN bitrates, transmit frames, and receive bus traffic over UDP.

Development PC / Robot Computer
              │
              │ UDP + SLCAN
              ▼
        WIZnet W5500
              │ SPI
              ▼
       STM32G474CBT6
         ┌────┴────┐
         ▼         ▼
      CAN 0      CAN 1

ETH_CANable is not an application gateway that interprets motor commands or sensor values. Its main purpose is to act as a transparent bridge that moves raw CAN frames between Ethernet and two CAN buses.

About IRIS-ITS

Source: IRIS-ITS https://iris.its.ac.id/

IRIS — ITS Robot with Intelligent System is a student robotics team representing Institut Teknologi Sepuluh Nopember (ITS) in Surabaya, Indonesia.

Founded in 2017, IRIS develops autonomous wheeled soccer robots and has participated in competitions including the RoboCup Middle Size League, FIRA RoboWorld Cup, and Kontes Robot Indonesia. The team is organized into four main divisions: Programming, Electrical, Mechanical, and Non-Technical. (iris.its.ac.id)

The Electrical Division is particularly relevant to ETH_CANable because it works on motor controllers and communication networks. The current IRIS team page also lists Ari Rangga Prasetio, whose name corresponds to the author of the repository’s initial commit, as a member of the Electrical Division. The repository itself, however, is published as an IRIS-ITS organization project rather than as an individual project.

IRIS’s GitHub organization also reflects its broader system-level development. Public repositories cover ROS development environments, robot base stations, referee-box integration, STM32 utilities, neural-network experiments, UDP communication libraries, and embedded firmware such as ETH_CANable.

IRIS-ITS on Social Media

IRIS-ITS is notable not only for its engineering work but also for its organized public communication and social-media activity.

The team has a dedicated Non-Technical Division responsible for sponsorship, media, event management, and public relations, showing that outreach is an intentional part of team operations. (iris.its.ac.id)

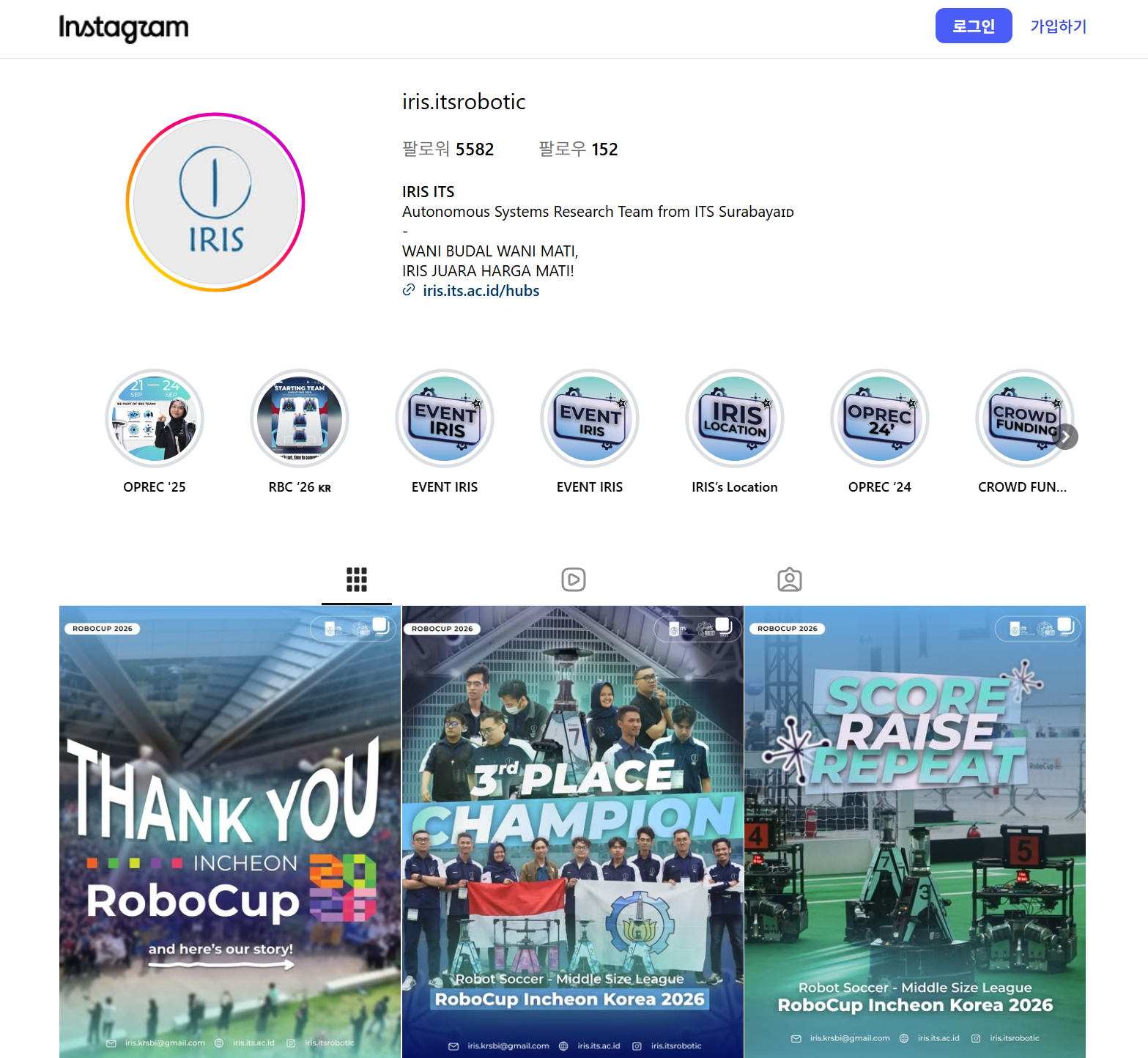

Instagram — Competition and Team Storytelling

source: https://www.instagram.com/iris.itsrobotic/

Instagram: @iris.itsrobotic

IRIS uses Instagram to document international competitions, robot development, and team activities through a consistent visual style.

During RoboCup 2026, for example, the team published a continuing series covering match days, robot preparation, field activities, the final result, and post-event reflections. Rather than showing only finished robots, the feed also includes the students working on, testing, and maintaining them.

This gives Instagram the role of a more polished public record of IRIS’s competition journey, engineering process, and official team achievements.

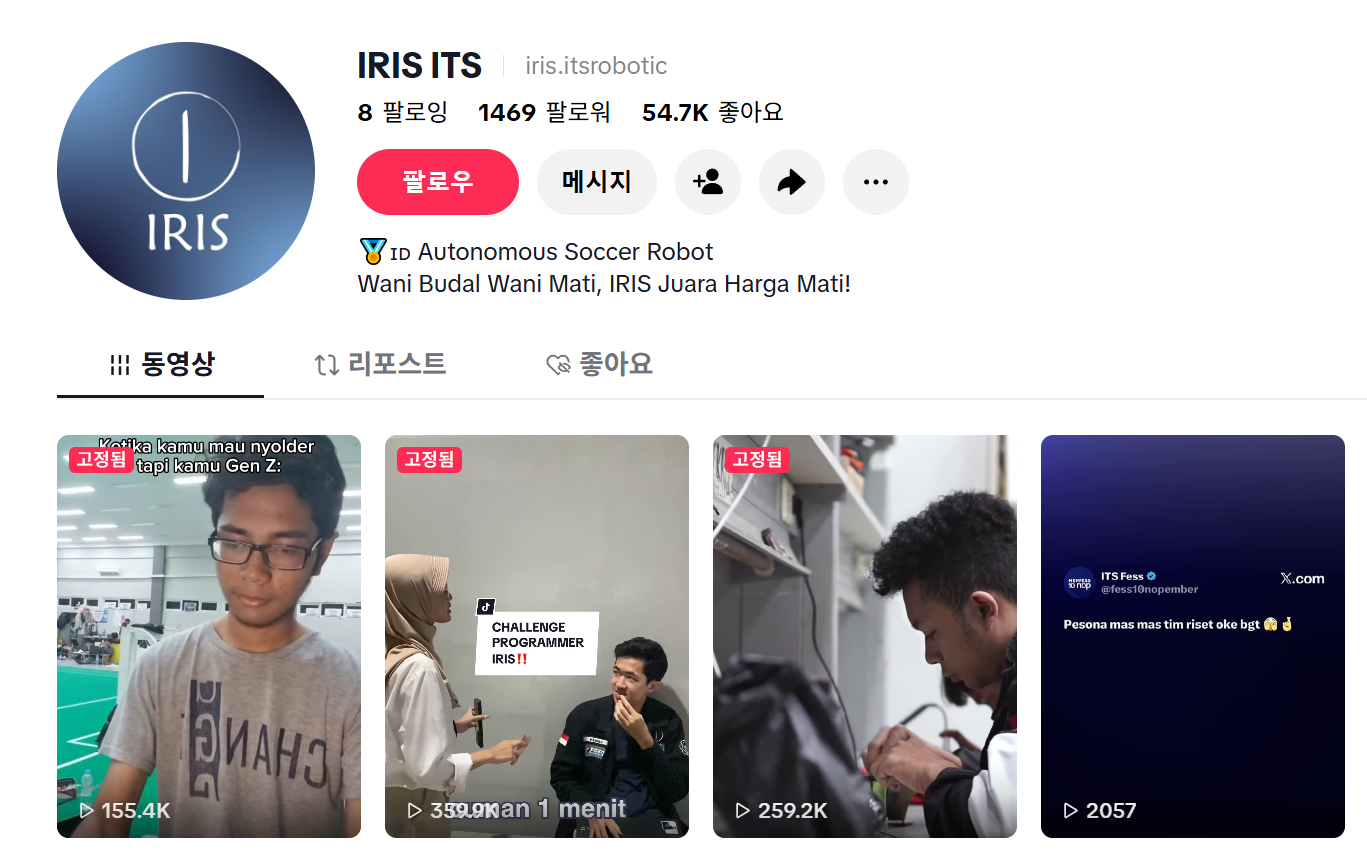

TikTok — Workshop Culture and Informal Engineering Content

source: https://www.tiktok.com/@iris.itsrobotic

TikTok: @iris.itsrobotic

TikTok presents a more casual side of the same robotics team.

Reviewed posts include soldering, programming challenges, robot assembly, workshop activities, competition scenes, and team-life moments. The videos often use Indonesian-language humor and short-form storytelling to make engineering work more approachable.

While Instagram presents competitions and achievements in a more structured format, TikTok gives viewers a closer look at how the students actually work, solve problems, and spend time in the robotics workshop.

LinkedIn — Research, Education, and Industry Collaboration Collaboration

LinkedIn: IRIS ITS

IRIS uses LinkedIn for more professional and institutional activities, including robotics education, school visits, research exhibitions, technical events, sponsor activities, and industry collaboration.

This channel presents IRIS not only as a competition team, but also as a university robotics group involved in education, research, and external partnerships.

YouTube — Team Profile and Qualification Content

IRIS also publishes longer-form video content through YouTube.

IRIS’s official website highlights:

• IRIS ITS Team Profile 2026
• RoboCup 2026 Qualification Video

The RoboCup Qualification Video is also linked from the official Research & Publications page alongside Team Description Papers and engineering documentation. (iris.its.ac.id)

YouTube therefore provides a longer-form view of the team, its robots, and its competition preparation.

GitHub and Publications — Technical Evidence

GitHub: github.com/IRIS-ITS
Publications: iris.its.ac.id/publications

Behind its public-facing social media, IRIS also publishes firmware, robotics software, Team Description Papers, qualification materials, and engineering documentation.

The channels serve different but complementary roles:

Rather than posting the same material everywhere, IRIS appears to adapt its communication to each platform: Instagram for competition storytelling, TikTok for workshop and team culture, LinkedIn for professional outreach, and YouTube for longer-form team and technical content.

This broader public activity is relevant to ETH_CANable because it shows that the repository is part of the engineering ecosystem of an active autonomous-robotics team, rather than an isolated personal prototype.

What Is ETH_CANable?

ETH_CANable is a dual-channel CAN-to-Ethernet bridge firmware that extends the concept of the open-source CANable adapter.

Each SLCAN command is prefixed with 0 or 1 to select one of the two CAN channels.

0S6\r  → Set CAN 0 to 500 Kbit/s
0O\r   → Open CAN 0
1O\r   → Open CAN 1

The repository documents bitrates from 10 Kbit/s to 1 Mbit/s, as well as normal, silent-monitoring, and internal-loopback modes.

How It Works

PC Application
      │
      │ UDP / SLCAN
      ▼
 WIZnet W5500
      │ SPI
      ▼
 STM32G474
      │
  SLCAN Parser
    ┌─┴─┐
    ▼   ▼
 CAN 0 CAN 1

A host PC sends SLCAN commands to UDP port 5001. The STM32 then parses the command and its channel prefix.

When a CAN frame is received, the firmware converts it back into SLCAN ASCII format and sends it to the UDP client over Ethernet.

Standard and extended CAN identifiers, data frames, and remote frames are supported.

Role of the WIZnet W5500

W5500 use can be verified not only in the README but also directly in the firmware source code.

Core/Src/eth.c includes WIZnet ioLibrary and directly calls its hardware-socket APIs:

• socket()
• recvfrom()
• sendto()

The firmware opens a W5500 UDP socket, receives SLCAN commands, and sends CAN responses back through the same Ethernet path.

w5500_stm32_hal.c connects WIZnet ioLibrary to STM32 SPI1 and implements chip-select, reset, byte transfer, and burst transfer callbacks.

WIZnet ioLibrary
      │
      │ UDP Hardware Socket
      ▼
    W5500
      │ SPI1
      ▼
 STM32G474
      │
      ▼
 Dual CAN

The responsibilities are divided clearly:

W5500 turns the two CAN buses into a standalone network-accessible endpoint and carries SLCAN data through ioLibrary hardware UDP sockets.

Why This Project Matters

From USB-to-CAN to Network CAN

A conventional USB-to-CAN adapter must normally remain physically close to its host computer.

ETH_CANable moves the CAN interface onto Ethernet, creating an architecture that can be useful for:

• Robot development benches
• Remote diagnostics
• Motor-controller testing
• CAN logging
• Distributed test equipment
• Autonomous-system laboratories

Two CAN Buses, One Ethernet Connection

One STM32 and one W5500 expose two independent CAN buses through a single Ethernet interface.

This can be useful in robots that separate drive motors, actuators, sensors, or other embedded subsystems across different CAN segments.

Direct WIZnet ioLibrary Integration

ETH_CANable does more than simply list W5500 in its hardware description.

The application source directly uses WIZnet ioLibrary hardware-socket APIs, making the project a useful reference for:

• STM32 + W5500
• CAN-to-Ethernet gateways
• UDP embedded gateways
• Robotics diagnostics
• Distributed test equipment

Built Inside a Complete Robotics Ecosystem

IRIS-ITS develops AI, vision, motion planning, embedded electronics, mechanical systems, and competition operations as part of one autonomous-robot platform.

ETH_CANable therefore illustrates how W5500 can fit into the actual development workflow of a competitive robotics team, rather than serving only as a standalone Ethernet demonstration.

Testing and Current Status

The repository includes working firmware and test code rather than only a concept description.

Publicly available material includes:

• STM32CubeIDE project
• Dual FDCAN firmware
• W5500 ioLibrary integration
• SLCAN parser
• UDP transport
• Error tracking
• Basic connectivity tests
• Internal and physical loopback tests
• Robot motor-control frame tests

test_loopback.py documents a physical CAN1-to-CAN2 test using 120-ohm termination at both ends and verifies frame transfer in both directions.

The README also describes an application-level loopback test using CAN frame formats from the Hitam robot motor-control system, including CANopen SYNC frames, motor commands, and simulated TPDO feedback frames.

Current Limitations

Based on the currently available public material:

• The repository currently contains only the initial commit reviewed here.
• There is no tagged release.
• No completed ETH_CANable hardware photograph or schematic is included.
• The firmware uses a default static IP and MAC configuration.
• Responses are returned to the most recently active UDP client.
• UDP itself does not guarantee delivery or ordering.
• Authentication and encryption are not implemented.
• The STM32 uses FDCAN peripherals, but the published frame format is based on Classic CAN.
• No independent latency, throughput, or packet-loss benchmark is published.
• The README references LICENSE.md, but that license file was not found in the reviewed repository root.

ETH_CANable is therefore best understood as a working firmware reference and robotics development tool, rather than a finished commercial CAN-to-Ethernet appliance.

Related WIZnet Maker Projects

1. Osaka Univ. RoboHan Gaku-Robo 2025 Circuit Board & Motor Driver

View on WIZnet Maker

Osaka University’s RoboHan 2025 robot main board also combines STM32 + W5500 + dual FDCAN.

The difference is architectural: ETH_CANable is a dedicated bridge for raw CAN access, while the RoboHan board integrates Ethernet, CAN, encoders, and robot I/O into a main robot controller.

ETH_CANable
Ethernet ↔ CAN diagnostic bridge

RoboHan Board
Ethernet + CAN + Robot Main Control

2. Controlling Xiaomi CyberGear via CAN with M5Stack

View on WIZnet Maker

This project uses an ESP32-based M5Stack system to control Xiaomi CyberGear actuators over CAN, with a W5500 + PoE LAN module available for network integration.

ETH_CANable differs by remaining application-neutral: it transports raw CAN frames instead of interpreting a specific motor protocol.

3. W5500Ethernet for STM32

View on WIZnet Maker

W5500Ethernet is a general STM32 networking reference for W5500.

ETH_CANable goes one step further at the application level by using WIZnet ioLibrary UDP sockets in a complete dual-channel CAN gateway.

Conclusion

ETH_CANable extends the familiar USB-to-CAN adapter concept into a dual-channel Ethernet CAN interface.

Its architecture combines:

UDP / SLCAN
     │
   W5500
     │
 STM32G474
   ┌─┴─┐
 CAN0 CAN1

The role of W5500 is particularly clear because WIZnet ioLibrary’s socket(), recvfrom(), and sendto() APIs are directly used in the firmware data path.

IRIS-ITS is also an important part of the story. The team uses Instagram to share competitions and development activities, LinkedIn for research, education, and industry collaboration, YouTube for team profiles and qualification videos, and GitHub and its Publications page for source code and deeper technical documentation.

ETH_CANable is both a W5500-based CAN-to-Ethernet bridge and a useful example of how an active university robotics team integrates open-source engineering, competition, and public technical communication.

FAQ

Q. What is ETH_CANable?
A. It is firmware that uses an STM32G474 and W5500 to expose two CAN buses over Ethernet using UDP-based SLCAN.

Q. How is it different from the original CANable?
A. It replaces the USB serial connection with Ethernet/UDP and expands the design from one CAN interface to two independent CAN channels.

Q. Is W5500 actually used in the firmware source?
A. Yes. eth.c directly uses WIZnet ioLibrary functions such as socket(), recvfrom(), and sendto(), while a separate STM32 HAL layer controls W5500 over SPI.

Q. Does it support CAN FD?
A. The STM32 uses FDCAN peripherals, but the currently documented SLCAN protocol and frame formats are based on Classic CAN with payloads of up to eight bytes.

Q. Is it ready to use as a commercial CAN-to-Ethernet gateway?
A. It is currently closer to an open development reference. A tagged release, complete hardware package, independent network benchmarks, and a clearly available project license would still need to be confirmed.

Key Links

• Project: ETH_CANable Firmware
• IRIS GitHub: github.com/IRIS-ITS
• Official Website: iris.its.ac.id
• Instagram: @iris.itsrobotic
• LinkedIn: IRIS ITS
• Research & Publications: iris.its.ac.id/publications
• YouTube – Team Profile 2026: Watch
• YouTube – RoboCup 2026 Qualification: Watch

Source Snapshot

The repository defines ETH_CANable as a transparent dual-channel CAN-to-Ethernet bridge based on STM32G474CBT6 + W5500. It moves the SLCAN concept of the original USB-based CANable onto Ethernet and extends the interface from one CAN channel to two independent FDCAN channels.

Key Sources

• ETH_CANable GitHub Repository
• README — Hardware, Protocol, and Architecture
• eth.c — WIZnet ioLibrary UDP implementation
• w5500_stm32_hal.c — STM32/W5500 SPI interface
• IRIS-ITS Official Website
• IRIS-ITS GitHub
