ESP32 SDK(M5Stack)+W5500 Ethernet(LAN Base) (1. Basic Example DHCP)

matthew

Published June 09, 2021

166 UCC

9 WCC

47 VAR

1 Followers

1 Following

Original source (new tab)

Components

Hardware components

M5Stack Core

x 1

M5Stack(ESP32)

LAN BASE

x 1

W5500 Ethernet Module

USB Cable

x 1

Cable

LAN Cable

x 1

Cable

Software Apps and online services

Python - Python

x 1

Python

ESP-IDF

x 1

ESP SDK

Project description

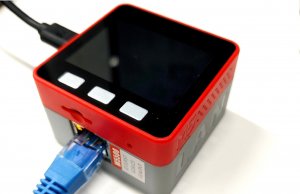

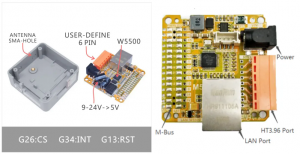

M5Stack is a module with built-in WiFi and BLE communication. However, Ethernet, which is a wired connection, is not supported by itself, and a separate LAN BASE (W5500) must be connected to use Ethernet. This article describes the process of running Ethernet Basic Example using M5Stack and LAN BASE. Ethernet Basic Example is a basic example of connecting to a Dynamic Host Configuration Protocol (DHCP) server. M5Stack(ESP32) + LAN BASE(W5500) will be assigned an IP after being connected to the DHCP server, and Ping (Packet Internet Grouper) test can be performed with the assigned IP. ESP32 SDK(M5Stack)+W5500 Ethernet(LAN Base) (1. Basic Example DHCP)
