ViewMarq MD4-0112T
ViewMarq LED message displays use the latest LED and communications technologies to display both critical and non-critical information to ap
4
Components
Software Apps and online services
Arduino - Arduino IDE
x 1
Project description

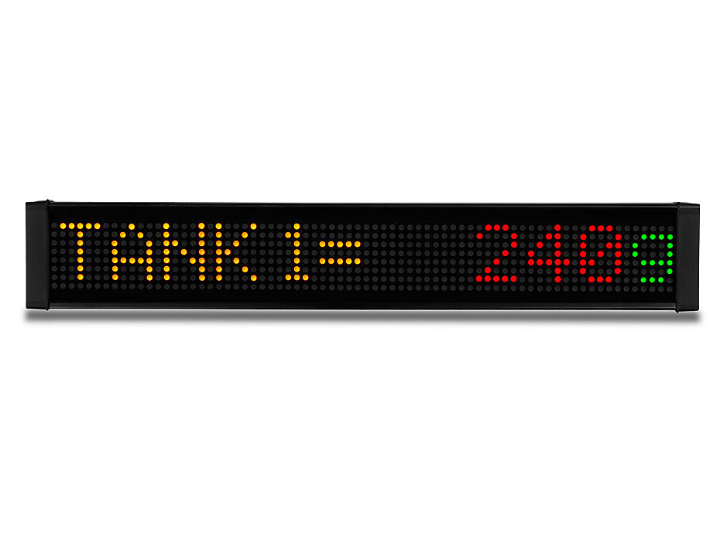

ViewMarq MD4 series industrial LED message display, 1 line x 12 characters, 1.5in and 2in, (2) serial and (1) Ethernet port for configuration and external message control, NEMA 4/12, indoor use only.
| Technical Attributes | |
|---|---|
| Brand | ViewMarq |
| Item | Industrial LED message display |
| Series | MD4 |
| Display Size | 1 line x 12 characters |
| Display Type | Tri-color LED |
| Character Size | 1.5in and 2in |
| Character Color | Red, amber and green |
| Character Type | Embedded string and numeric variables |
| Scrolling | Right, left, up and down |
| Recommended Maximum Viewable Distance | 100ft |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Housing Material | Extruded aluminum |
| Housing Rating | NEMA 4/12 |
| Environmental Requirements | Indoor use only |
| Includes | Mounting hardware, cable glands and (1) Ethernet patch cable |
| Programming Software | MD-PGMSW configuration software v2.0 or later |
