PoE-Powered VFD Tube Clock

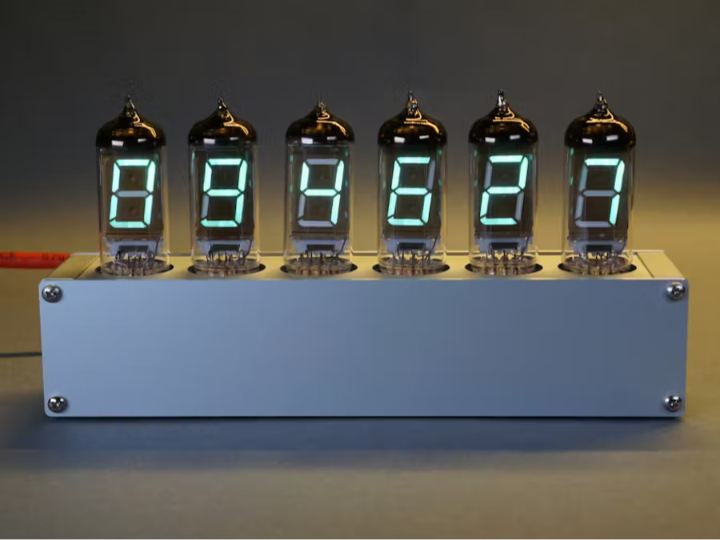

This is a vintage VFD tube clock that uses Ethernet for both power and data.

louis_m

Published July 01, 2024

Original author: bikerglenOriginal source (new tab)

PoE-Powered VFD Tube Clock

Components

Hardware components

WIZnet parts

Project description

Story This is a vintage VFD tube clock that uses Ethernet for both power and data. The power is provided using 802.3at PoE+ and a Molex PD Jack that contains both integrated magnetics and a PoE Type 2 PD controller. The IP stack runs on a Microchip PIC18F67J60 microcontroller that has an integrated Ethernet MAC and PHY. The IP stack includes DHCP, DNS, NTP, and LLDP functionality. The clock powers up and receives its IP address and a DNS server address via DHCP. LLDP is used to negotiate 7.5 Watts of power. The clock performs a DNS lookup to get an NTP server address from pool.ntp.org. Once…
