Project Overview

In the field, answering "what device is connected to this port?" usually means pulling out a laptop, manually setting an IP, logging into a switch CLI, or hauling out dedicated network analysis equipment — a process that takes several minutes at best.

MAC-scan compresses that entire process into 5 seconds. It is a pocket-sized network diagnostic tool that combines the WIZnet W5500's MACRAW socket mode, an RP2040 MCU, and a low-power 2.66-inch e-paper display. The moment a cable is plugged in, the tool automatically detects link-up, extracts the source MAC address from the very first Ethernet frame the peer transmits, and displays it on screen.

Why W5500? — The Reasoning Behind the Hardware Choice

The core requirement of this project is to receive raw Ethernet frames without any protocol processing. This is where the W5500's MACRAW socket mode becomes essential.

With a typical Ethernet solution, data must travel up through the TCP/IP stack to the application layer before user code can touch it. But reading a MAC address requires intercepting a packet at Layer 2 — the Data Link layer — long before the TCP/IP stack ever sees it.

The W5500 solves this with MACRAW mode.

Key advantages of MACRAW mode:

• Opening socket 0 in MACRAW mode delivers every Ethernet frame on the link, raw and unmodified, directly to the RX buffer.
• Bytes 6–11 of each frame (the source MAC field) can be read directly, with zero TCP/IP stack involvement.
• The entire implementation runs over SPI from the RP2040 — no Linux OS, no host PC required.
• The complete driver fits in roughly 40 lines of Python.

The same functionality could theoretically be achieved with a software TCP/IP stack (like lwIP) on a general-purpose MCU, or with a Linux-based system running libpcap. However, W5500's hardwired TCP/IP offload engine and native MACRAW support dramatically reduce both code complexity and power consumption, making a fully standalone, battery-friendly tool feasible.

Why W5500-EVB-Pico specifically:

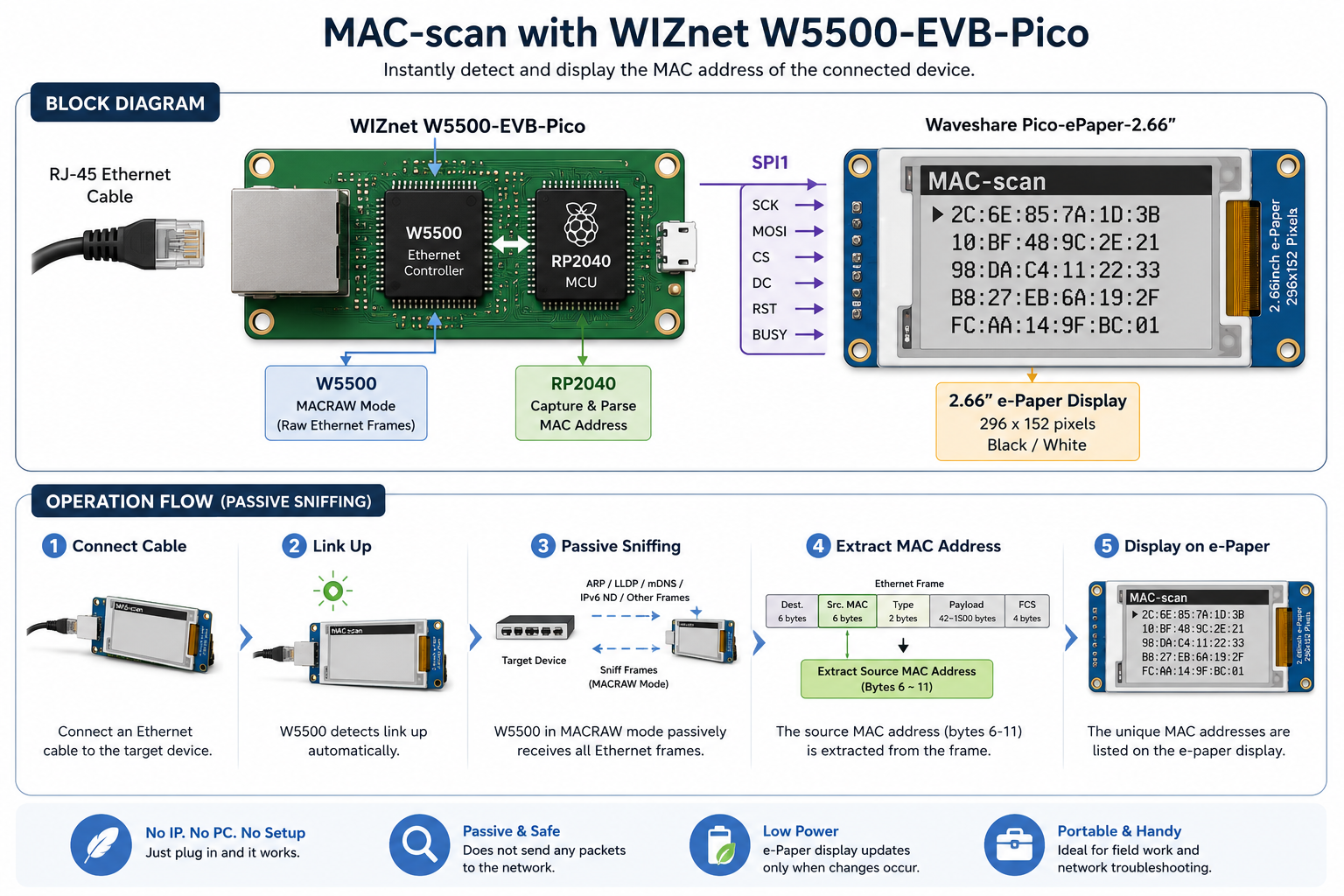

Hardware Configuration

The two modules stack directly on the 40-pin header with zero pin conflicts.

The only additional component needed is a single RJ-45 patch cable.

How It Works

The operation is entirely passive. Once link-up is established, virtually every networked device transmits something within a few seconds — ARP, STP, LLDP, DHCP, IPv6 Neighbor Discovery, mDNS, and so on. The source MAC is captured from the very first frame, leaving zero trace on the network.

RX buffer stability: The RSR (Received Size Register) is read twice consecutively and only trusted when both reads agree, preventing corrupted reads caused by mid-update register states. If the buffer falls out of sync (e.g. an unexpected frame length), the entire buffer is flushed and re-synchronized.

Software Structure

Measured Results

Comparison with Similar Projects on WIZnet Maker

Two notable projects in the WIZnet community also leverage the W5500's raw Ethernet access capabilities. Here is how MAC-scan compares to each.

Comparison 1: multiSniff Masters Project

WIZnet Maker: maker.wiznet.io — multiSniff Masters Project
GitHub: github.com/voytex/multiSniff_project

multiSniff is a graduate thesis project that uses a TI CC2652RB + W5500 combination to capture BLE and IEEE 802.15.4 wireless traffic, encapsulate it in UDP datagrams, and forward it over Ethernet to a PC for real-time analysis in Wireshark. It is a high-capability, multi-protocol wireless sniffer.

Key distinction: multiSniff uses the W5500 as a transmission channel, while MAC-scan uses the W5500 itself as the capture engine. Both leverage W5500's raw Ethernet access, but their purpose and complexity are fundamentally different. MAC-scan is optimized for instant field independence; multiSniff is built for deep protocol analysis in conjunction with Wireshark.

Comparison 2: Raspberry Pi Pico PicoDV

WIZnet Maker: maker.wiznet.io — Raspberry Pi Pico PicoDV
GitHub: github.com/Akkiesoft/w5500-module-mounter-for-pico

PicoDV is a hardware adapter project that designs a custom PCB to mount a WIZnet Ethernet HAT (W5500 module) onto a Raspberry Pi Pico. Its focus is on the physical integration of the two boards.

Key distinction: PicoDV provides the hardware infrastructure to connect a W5500 to a Pico; MAC-scan is the finished application that runs on top of it. The two projects are complementary rather than competing — MAC-scan's software could in principle run on a PicoDV-style adapter as well.

Significance for WIZnet & Application Potential

A Rare Real-World Reference for W5500 MACRAW Mode

The vast majority of W5500 use cases focus on TCP/UDP socket communication. MAC-scan is one of the few publicly available reference implementations that uses the W5500's MACRAW mode in a pure embedded environment with no host OS. While MACRAW is clearly documented in the W5500 datasheet, concrete working examples are rare in the community. This project demonstrates the feature's practical value and lowers the barrier for others who want to build on it.

Expanding the W5500-EVB-Pico Ecosystem

This project shows that the W5500-EVB-Pico is more than an IoT connectivity module — it can serve as a Layer 2 (Data Link) network diagnostic tool. Because it is implemented in MicroPython, the project is accessible to network engineers and field technicians who are not embedded specialists, providing a new entry point into the W5500 ecosystem.

Concrete Application Scenarios

Network infrastructure management:

• Data center patch panel audits — instantly identify which device is connected to which port
• Collecting MAC inventories during switch replacement or cable re-patching
• Physical layer diagnostics — detecting faulty cables or ports via link-up/down behavior

Factory automation and industrial IoT:

• MAC address inventory collection for Ethernet-based industrial equipment (PLCs, sensors, actuators)
• Pre-installation device identification before IP assignment
• On-site verification of unauthorized devices connected to the production network

Smart buildings and campus environments:

• Field collection of MAC addresses from IP cameras, VoIP phones, wireless APs, and other devices at scale
• Instant manufacturer identification when combined with an OUI (Organizationally Unique Identifier) lookup database

Education and research:

• A hands-on teaching tool that makes Ethernet frame structure and MAC addressing tangible and visible
• Live demonstration of passive sniffing principles in network security courses

Upgrade paths already identified in the project:

• OUI database integration → automatic manufacturer lookup from MAC address
• Active ARP request transmission → force a response from silent devices
• Forwarding the collected MAC list to a central server via W5500 TCP socket
• 3D-printed enclosure + battery pack integration → a fully finished field diagnostic instrumentTroubleshooting Notes
