[RE]Ethernet (e1.31) - RS-485 (DMX) Booster Pack PCB
Ethernet - RS-485 Booster Pack PCB
1
Project description

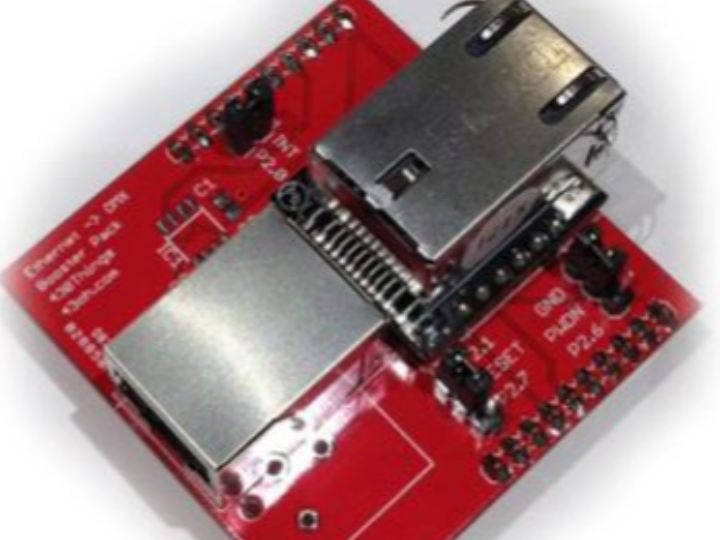

Details WIZ820io on the Ethernet (receiver) side SN65HVD12 on the RS-485 (transmitter) side XLR (NC3FAH or similar) or RJ45 socket can be used Compatible with MSP430, Stellaris, C2K, and Tiva LaunchPads The Ethernet e1.31 RS-485 DMX Booster Pack PCB, available on Tindie, is a versatile PCB designed for converting Ethernet-based e1.31 signals into RS-485 DMX signals for controlling lighting equipment. This product is suitable for those looking for an easy way to control DMX devices over Ethernet. Here's a curation of the product, including who it might be recommended for: Product Overview…
