IRIV IO Controller Series: RS-485 (Modbus) → Ethernet → Cloud (Blynk / ThingSpeak / MQTT) + Agricult
Read RS-485 Modbus sensors on IRIV, send data via WIZnet W5x00 to Blynk, ThingSpeak, and MQTT (Adafruit IO), then build an irrigation automation example.
0
Project description

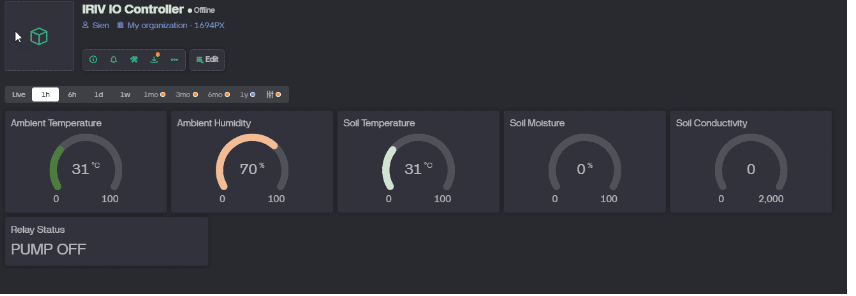

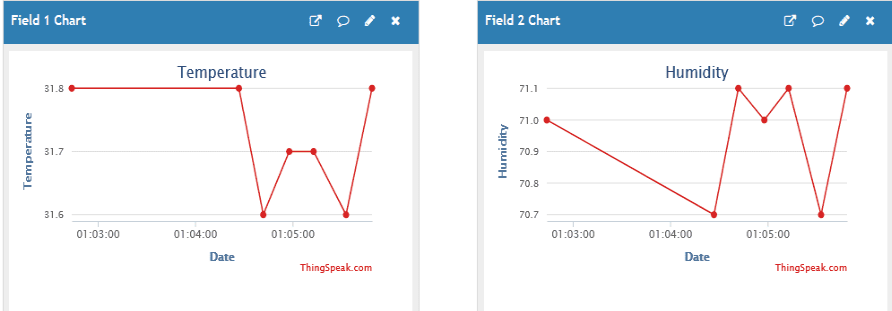

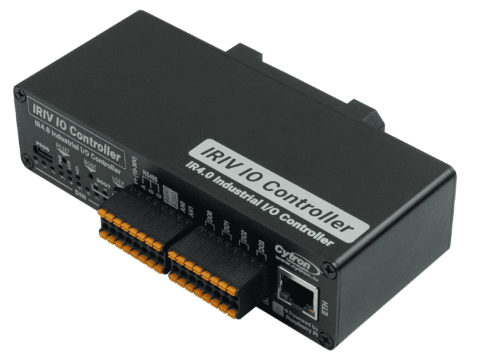

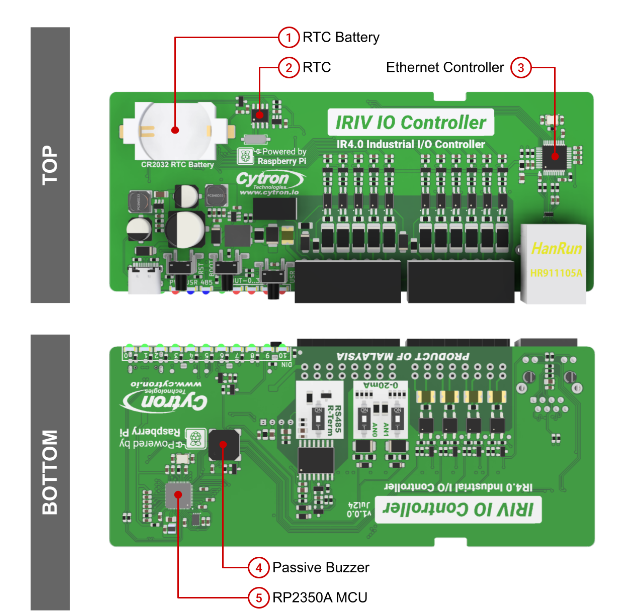

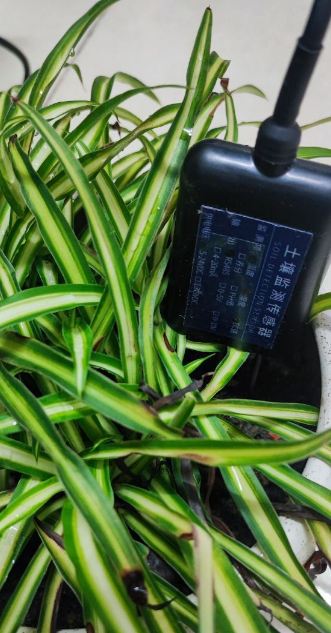

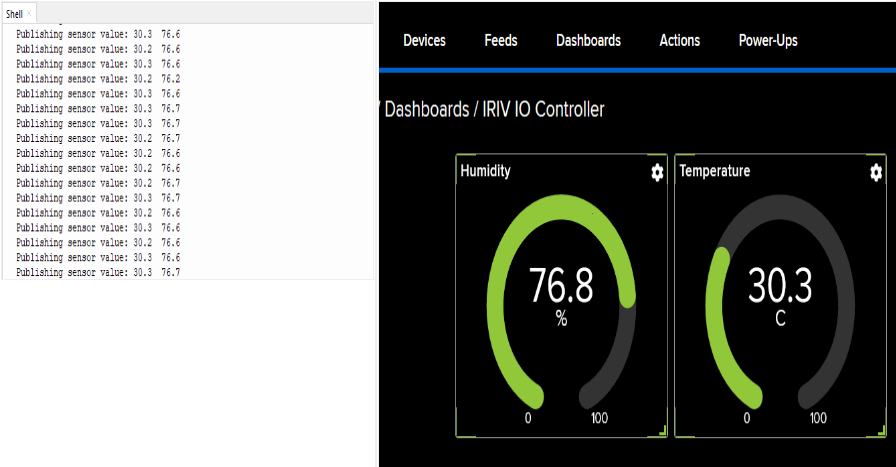

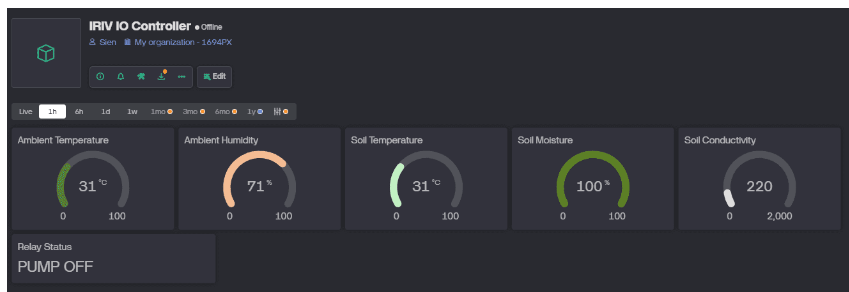

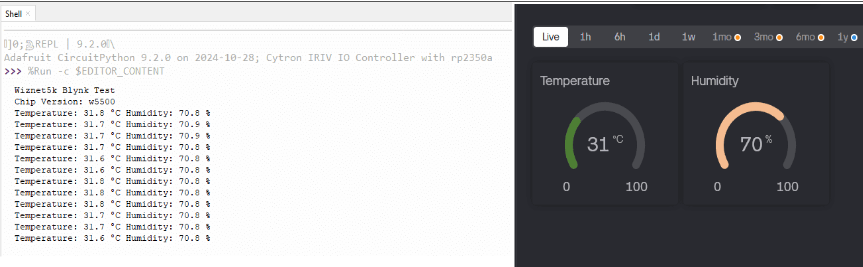

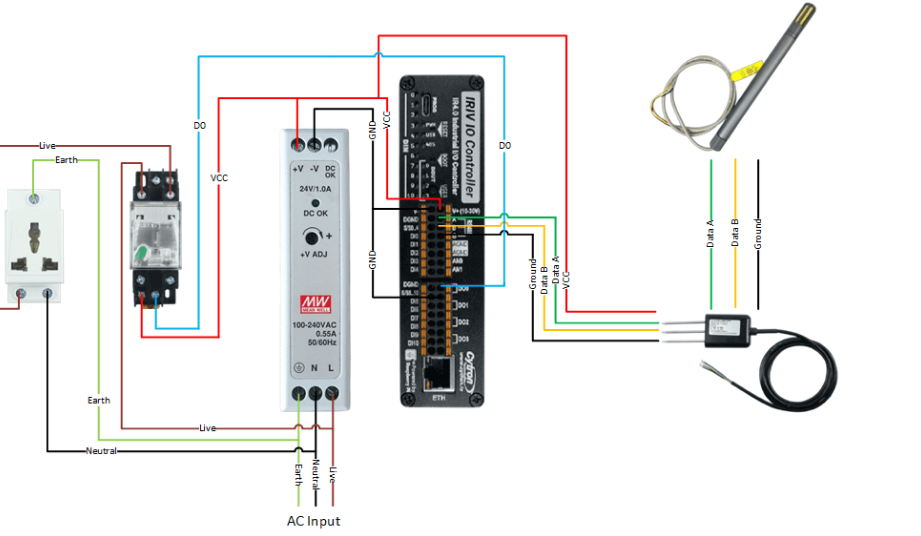

This series shows how to read RS-485 (Modbus RTU) sensors on the IRIV IO Controller and send data over Ethernet using a WIZnet W5x00 driver (CircuitPython) to three cloud paths—Blynk, ThingSpeak, and MQTT (Adafruit IO)—and then apply it to an agriculture automation example (moisture-based pump control). H/W : IRIV IO Controller - https://maker.wiznet.io/viktor/resellers/iriv%2Dio%2Dcontroller/ COMPONENTS IRIV IO Controller × 1 (RJ-45 Ethernet, RS-485, DO relay): with W5500 RS-485 (Modbus RTU) Temp/Humidity Sensor × 1 RS-485 Soil Sensor (Moisture/Temp/EC) × 1 (for automation section) 24 V DC…
