IRIV IO Controller IoT Gateway : MQTT

Read RS-485 Modbus temperature/humidity on IRIV IO Controller and publish to Adafruit IO via MQTT over Ethernet using WIZnet W5x00 in CircuitPython.

irina

Published August 27, 2025

Original author: Hussien Jawhar SathikOriginal source (new tab)

IRIV IO Controller IoT Gateway : MQTT

Project description

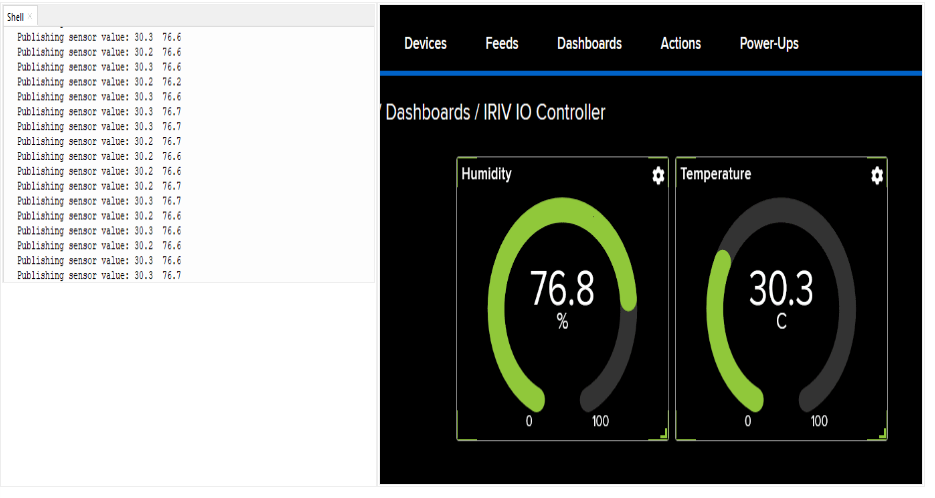

This tutorial shows how to use an IRIV IO Controller to read temperature and humidity from an RS-485 (Modbus RTU) sensor and publish both values to Adafruit IO over MQTT via Ethernet using a WIZnet W5x00 driver in CircuitPython. You’ll create an Adafruit IO account, collect your AIO Key, create two feeds (Temperature/Humidity), place credentials in settings.toml, then publish with adafruit_minimqtt—exactly as in the original Cytron guide. 🔧 Project Overview Project Name: IRIV IO Controller IoT Gateway : MQTT Author (Tutorial): Hussien Jawhar Sathik (Cytron) Platform: IRIV IO Controller…
