Step400

Step400

irina

Published March 29, 2022

187 UCC

5 WCC

66 VAR

Original source (new tab)

Components

Hardware components

STEP400

x 1

Project description

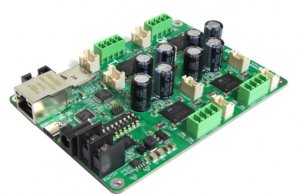

STEP400 is a 4-axis stepper motor driver designed for art or design projects. STEP400 combines the following elements into one single board:

  • Arduino Zero
  • Ethernet shield
  • Four stepper motor drivers
  • Sensor inputs for homing and limiting

The?current firmware?is focused on working with?Open Sound Control?(OSC) via Ethernet, which is a common protocol for creative coding environments, like openFrameworks, Processing, Max, Unity, or Touch Designer.

Stepper driver chips are STMicroelectronics's?powerSTEP01?which provide most of functionalities as a stepper driver.

Step400

Firmware

Important Note:?The latest firmware is available at?STEP-series Universal Firmware?repository. Following directories and Releases are not maintained anymore.

Hardware

/hardware?: Eagle design files, BOM lists, and schematics PDFs

Others

/configTool?: The configuration tool consists of a html and JavaScritpts.
