Node-red reading data via ethernet with Arduino

WIZnet

Published January 30, 2023

Original author: Thales Gonçalves FerreiraOriginal source (new tab)

Node-red lendo dados via ethernet com Arduino / Node-red reading data via ethernet with Arduino

Components

Hardware components
W5500

WIZnet - W5500

x 1

Microchip Technology - ATmega1280

x 1

Software Apps and online services
Node-RED

node-red - Node-RED

x 1

WIZnet parts

Project description

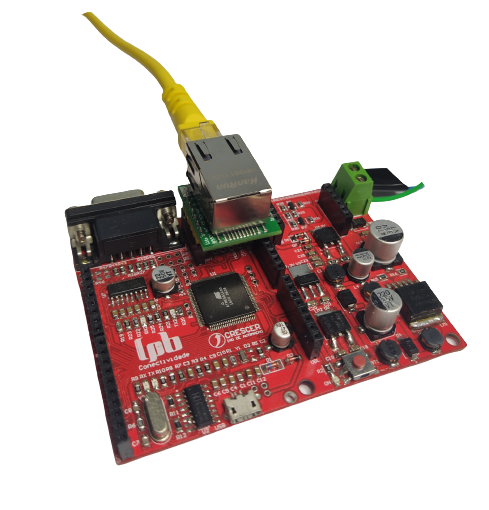

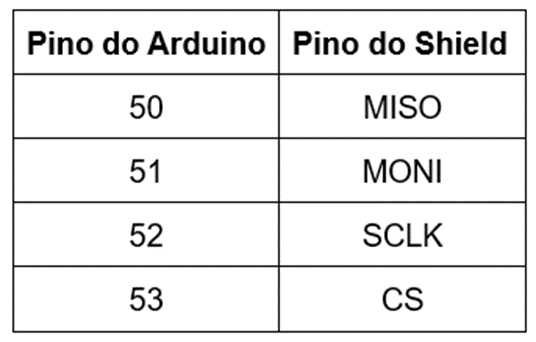

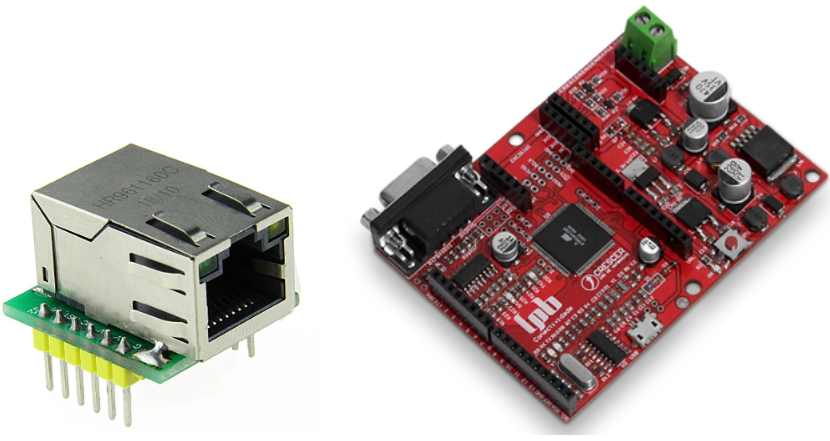

3. Sending data from Arduino. Now let's leave Node-red aside for a bit and let's prepare the arduino to send the data. For this implementation, the CPB Mini board was used, together with the W5500 ethernet shield. The CPB Mini has an ATmega1280, so it behaves like an Arduino mega. The following figure represents the topology of the system, the CPB communicates over ethernet with the modem that sends data via wifi to Node-red. In the following table we can see the pins that were used for communication with the ethernet shield, it is worth mentioning that from these we can only change the Chip…
