Please review my PCB

Question

Hey guys, I am pretty new to this whole thing, but I’d like some input if possible. Can you tell me what I am immediately doing wrong? I’m sure there is plenty. I’m trying to keep all the components on one side, but let me know if that’s stupid. I really appreciate any input at all. 2024-08-06-160705_427x895_scrot427×895 97.3 KB 2024-08-06-160627_1167x763_scrot1167×763 105 KB

Alan · Answer

PMODE allows you to set the speed you want to communicate. Currently, it’s floating

Alan · Answer

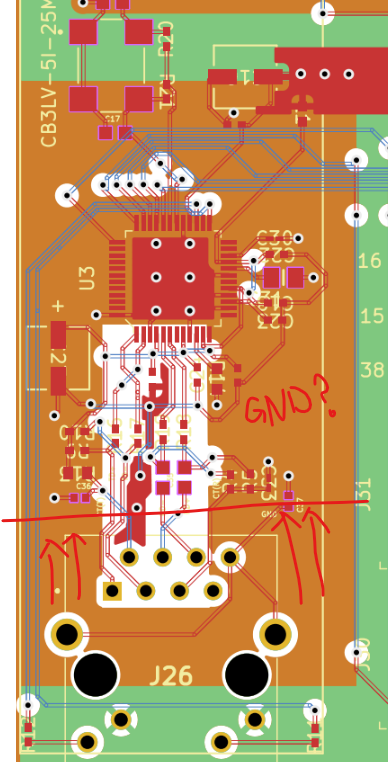

image388×762 145 KB Is the brown GND? GND should not be placed around the Ethernet connector.

munderwoods · Answer

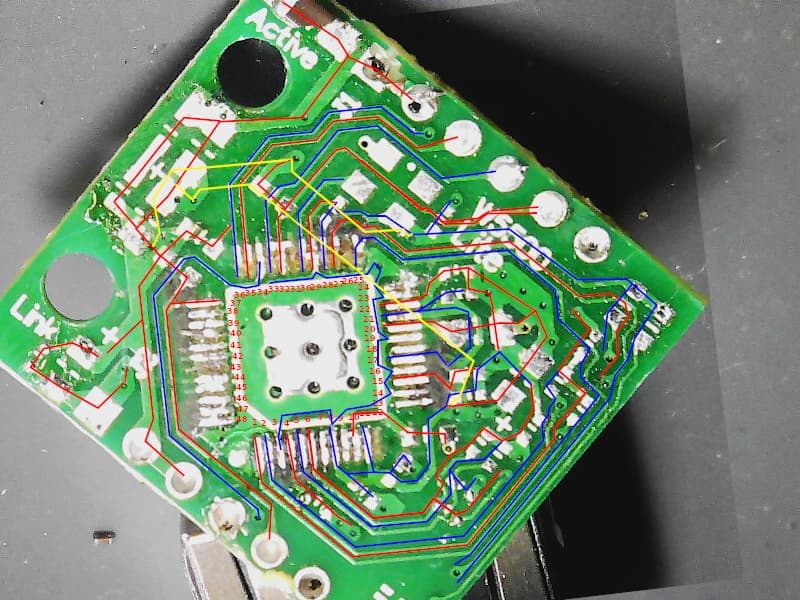

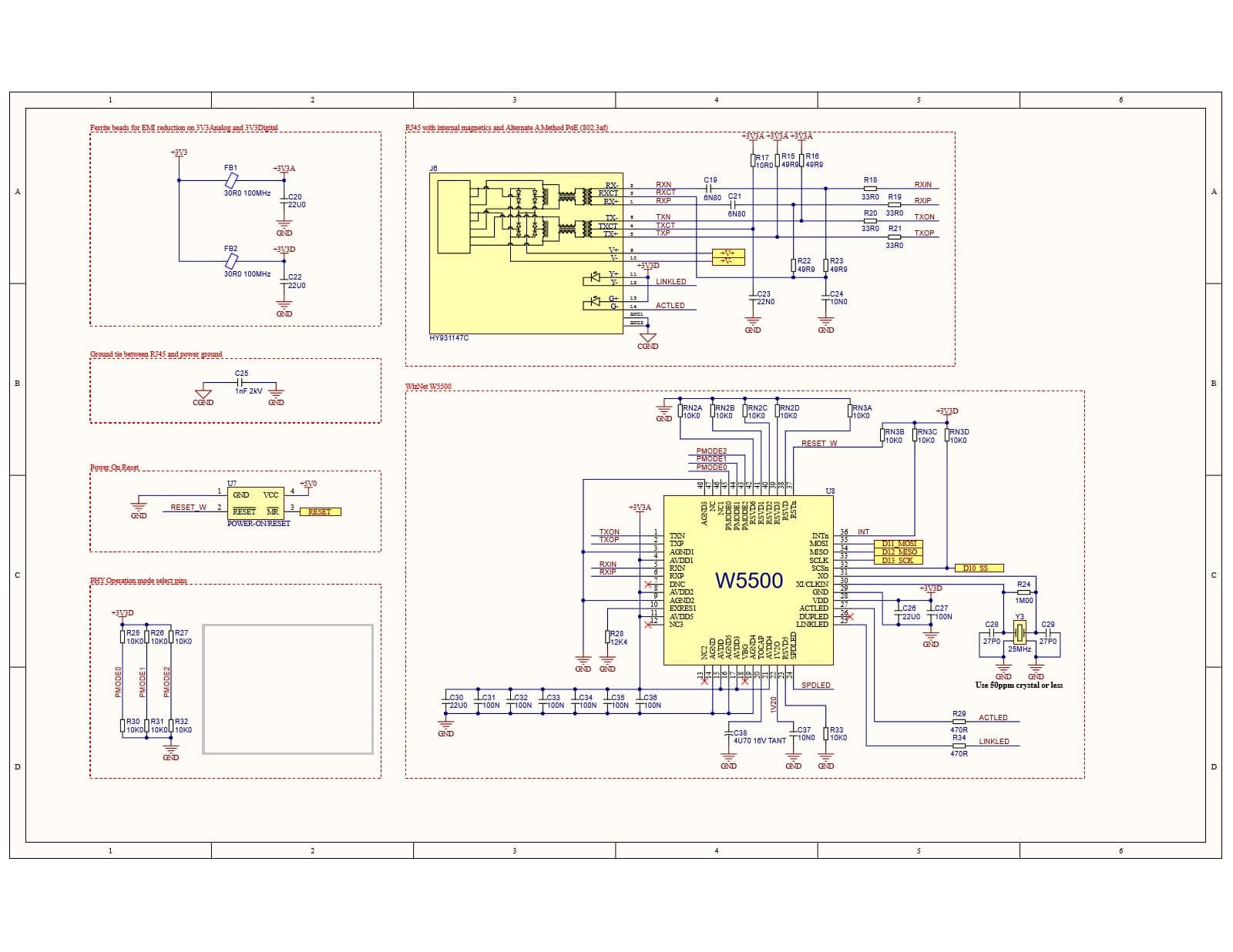

Thanks so much! So can the green 3V3 is fine where it is running under the edge of the rj45 or is it safer to just run traces under there? I actully based this circuit partially off of this common W5500 module I pulled apart which appears to have them floating. I’ll connect them to ground since it seems like 10BT half-duplex is probably fine for the esp32 I’m using. image800×600 85.6 KB

munderwoods · Answer

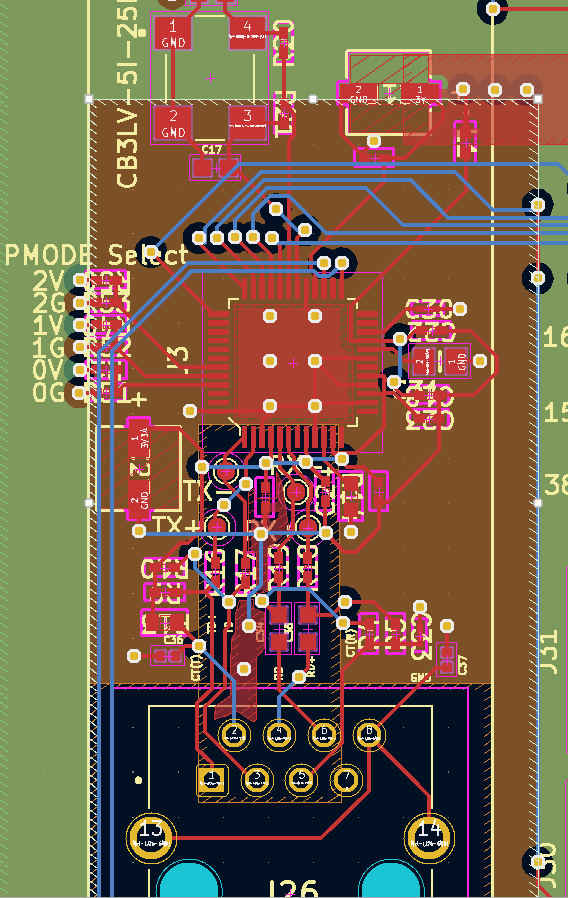

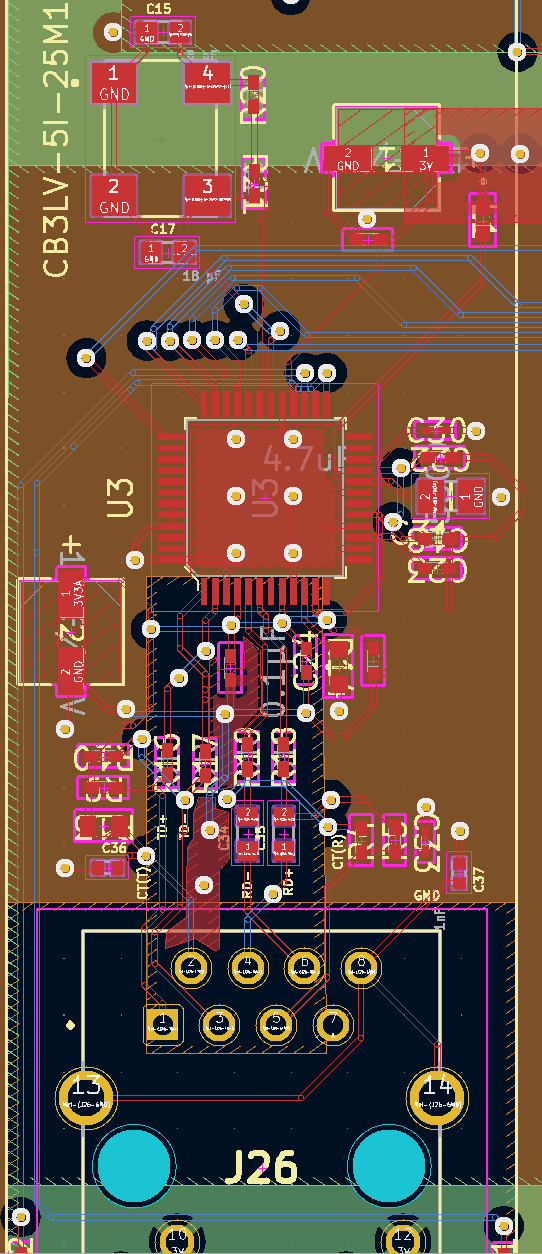

2024-08-07-085858_542x1254_scrot542×1254 36.3 KB Revised

munderwoods · Answer

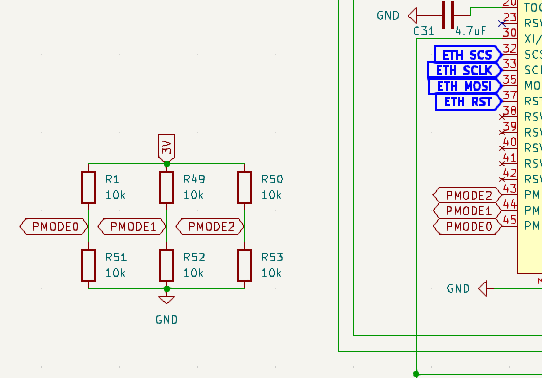

image1600×1236 131 KB Am I actually supposed to do something like this for PMODE? If so, I must be missing that in the documentation. Can someone point me in the right direction?

Alan · Answer

Yes, that’s right. Exactly
