W5500 IC does not boot up, crystal issues

Question

I have my rp2040 custum board, with w5500 on spi bus, when i power up the w5500 ic does not boot up, no link led or act led glow, but if i touch crystal trace with finger, it starts working fine, no issues. i think my 25Mhz crystal doesnt start automatically, but start when gets excitation by finger. i have hc49/us crystal and reference schematic provided by wiznet. how to resolve this issue? w5500schematic1600×900 114 KB ethernetw55001600×900 219 KB

codev123 · Answer

@Eugeny sir please help!!

bruno · Answer

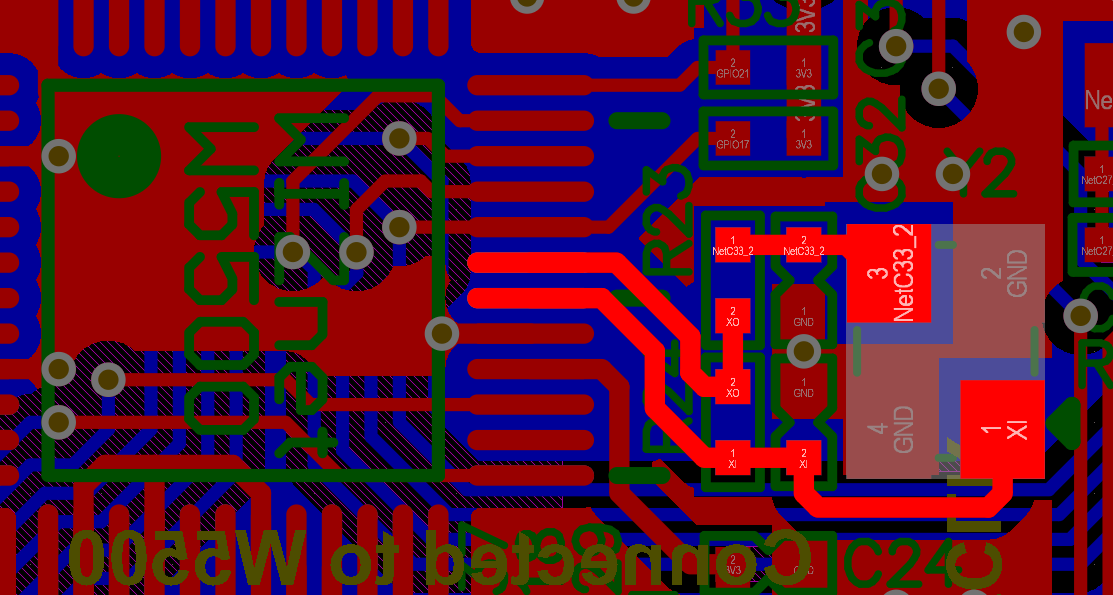

hi Looking at your artwork file, it looks like there are lines and some parts placed underneath the crystal circuit. The presence of signal traces running underneath the crystal oscillator of your W5500-based circuit can indeed cause problems. Here’s why and how you can address it: Electromagnetic Interference (EMI): Powerful signal traces can generate electromagnetic interference that disrupts the normal oscillation of the crystal. This can degrade the precise and stable environment required for the crystal to start oscillating properly. Noise Induction: Noise from nearby signal traces can be inductively coupled into the crystal pins, especially if those traces are carrying digital switching signals. Thermal Effects: Traces carrying high currents can generate heat, which may affect the temperature of the crystal. Crystals are sensitive to temperature changes, and this could influence their oscillating frequency. Parasitic Capacitance Changes: If signal traces are placed too close to parts of the crystal oscillator circuit, it can alter the parasitic capacitance, which affects the characteristics of the crystal’s oscillation. To mitigate these issues, consider the following steps: Keep the traces associated with the crystal circuit as short as possible. Place a ground plane between the crystal and its load capacitors to shield against EMI from the signal traces. Ensure there is adequate spacing between any signal traces and the crystal. If possible, create a keep-out area with no signals directly underneath or near the crystal. Add shielding around the crystal to protect from external noise sources. W5500-EVB-PICO w5500 크리스털 회로1113×595 82.7 KB Related forums Debugging the 25MHz crystal oscillator W5500 I’ve been having trouble getting my ATmega32U4 + Wiznet W5500 to work and I think I’ve traced the problem down to the crystal oscillator loop. The problem is that there is no network activity. The LEDs on the RJ45 ethernet jack don’t light up at any time, and none…

codev123 · Answer

Sir, i have soldered a 1M ohm resistor between clock signals and now it works properly. Meanwhile as you have seen in my design i have made a gaurd ring around crystal traces and other traces, i also kept crystal traces small. I didn’t used 1M ohm resistor in my design, i thought it’s unnecessary. But there is one issue now. When i power up my board sometimes(not all times, most of times it works as expected) my w5500 doesn’t work, and leds on my rj45 connector blinks, first green led light up, then yellow and then both off and it keeps repeating this pattern. I have added electrolytic capacitor 10uF at 3v3A line, i thought it may be power issue. Let’s see what happens.

Eugeny · Answer

If it is not a crystal then check reset line and then sufficient power.
