W5500 PHY Link failed when system reboot
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
Hi I’m jaden

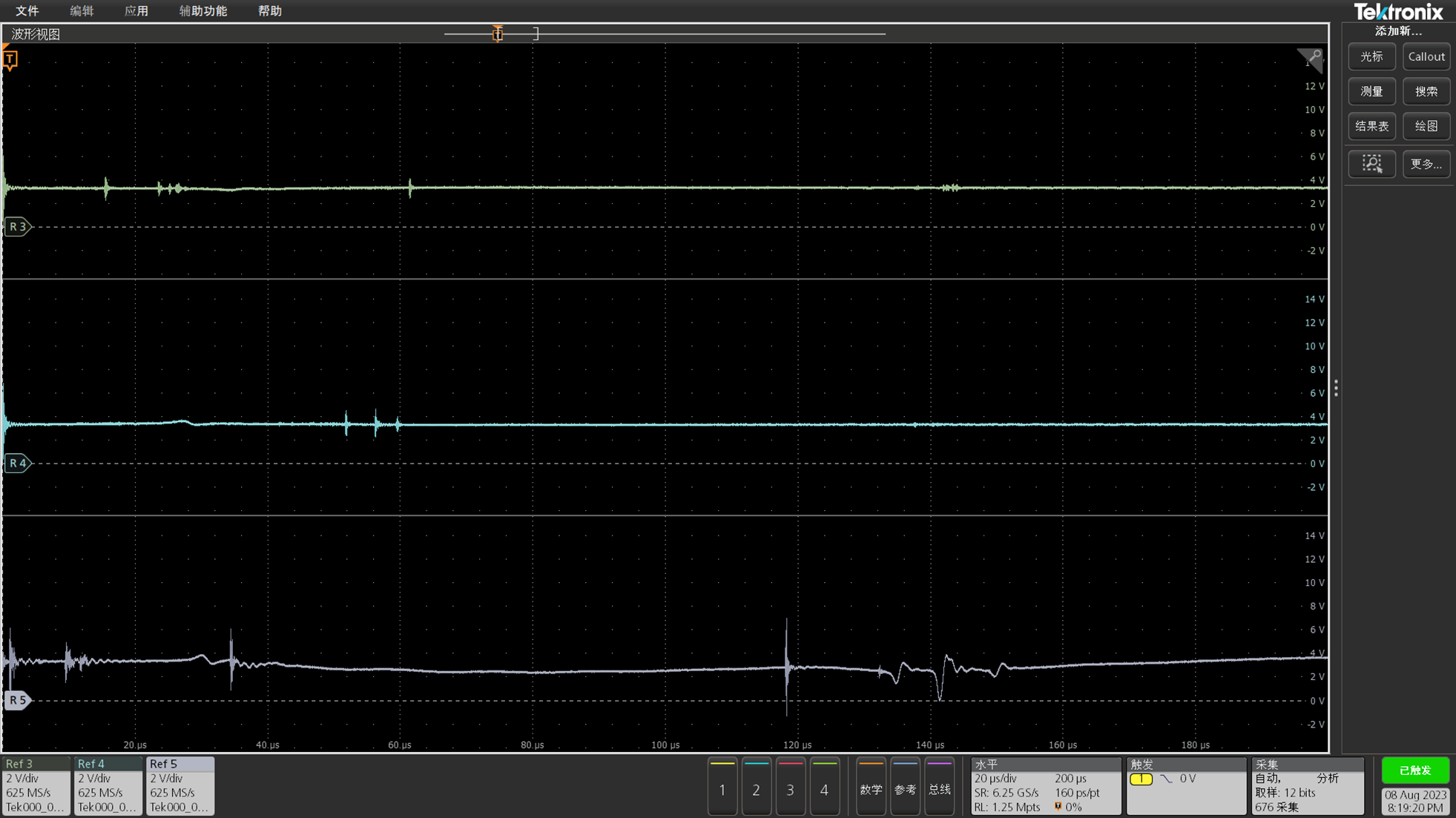

Noise is visible in the measured oscilloscope waveform.
What part of the waveform did Ref1, 2, and 3 each measure?
Can you please confirm that the Link LED on the W5500 also does not light up when the IP connection is lost?
RE: RE: W5500 PHY Link failed when system reboot
by xdhxdh123 ·
Hello, Jaden.
Ref1, 2 and 3 all measure the 3.3v analog voltage which supplies the W5500.
Just measure 3 times. I put all the 3 waveform in one table sheet.
And it’s very interesting that the Linked Led will sometimes not lighting up, sometimes still lighting up.
But network connection in both cases are already lost.
In most cases, the Linked Green Led is off when it happens.
will the PHY functions bad but it kept the status(maybe lights on, maybe lights off)?
we tried to reset the PHY when the SPI detected the Linked status is 0(off), but it not work.
The error status (ping not available) will keep unless we perform a whole reset of W5500 or repower.
and now in code when we meet this situation, we reset the W5500 in a loop until the Linked Status is 1(lights on). And it worked. In my mind, this workaround works is another evidence that it’s only the PHY of the chip functions bad.
We are super curious about this problem and want to know the root cause.
In which Situations will break the PHY only but keep the W5500 working.
And as a beginner of hardware, me and my team what to go further about this topic.
if you want more information, we are glad to share more.
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
Send me a schematic and I’ll take a look at the W5500 HW part.
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
Is the VDD, 3V3, 3V3A is same power source?
I mean are they connected 0R or bead in other page?
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
“The system reboot” is mean 24V power on-off?
What happens if you try to reset W5500 when lose network connection after a system reboot
RE: W5500 PHY Link failed when system reboot
by xdhxdh123 ·
Not really, the 24V power keep supplying.
“The system reboot” means the device which the controller(network cable) connects perform a reboot. It’s like a personal computer perform a reboot process. But the device connected has a solenoid valve which will also perform on and off in reboot and will let other 24V power on and off.
But it will not impact the 24V power for the controller with W5500.
Do you think some electromagnetic interference will impact the behavior of W5500 chip?
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
Yes, I saw the noise measured by your oscilloscope and asked.
Does this noise only occur during system reset?
RE: W5500 PHY Link failed when system reboot
by xdhxdh123 ·
Yes, I make a trigger point, and the noise come form the system reset.
However, it’s not the case that each time this kind of noise is encountered and the 5500 lose network connection.
Some times the 3.3v pressure waveform is quite good and the 5500 chip still functions bad.

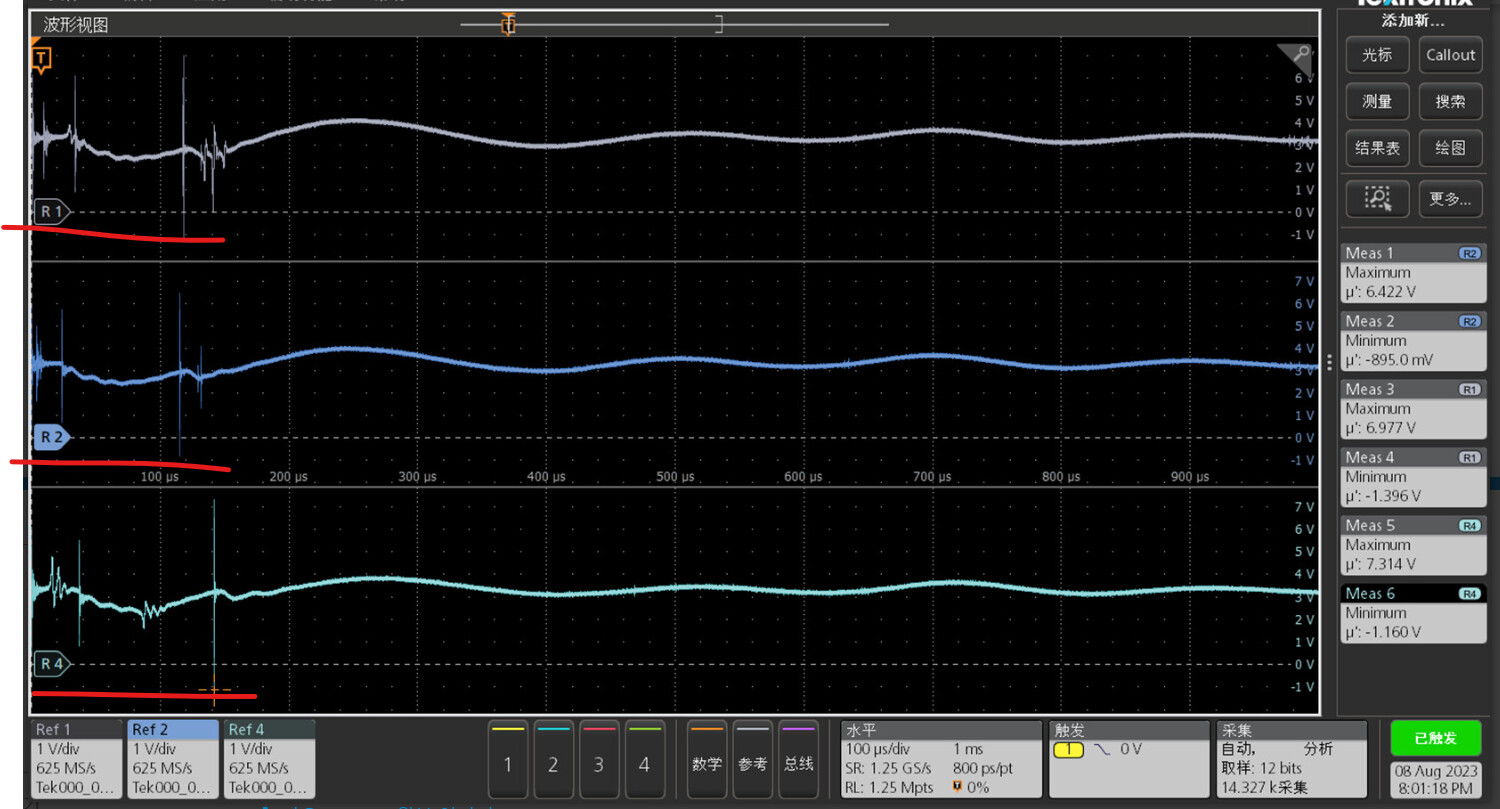

The following picture shows the error case for another 3 different measurement.
However, the first one and the second one has not much fluctuations.
if the electromagnetic interference will probably be a cause, we would go further to have an investigation about it.
Because we have several systems, and only in one system this error situation will reproduce frequently.
By some measurement, we could have a comparison upon the electromagnetic interference on different systems.
Do you have other suggesstions?
RE: W5500 PHY Link failed when system reboot
by jaden WIZnet ·
I’ll check the running environment cause there’s nothing wrong in your circuit and it’s not a problem with all devices.
If there is a noise source (solenoids, inverters, motors) close around the W5500, would you like to remove that noise source and change the Ethernet cable to Cat6 to test it out?
