wiz750sr firmware uploaded correctly, but no blue light

Question

i uploaded firmware as flash programming as i done before, but now the blue light is not showing now. previously it was there when i uploaded the firmware, but it not now. when i upload the firmware, it shows a sudden bluelight and then no bluelight. How to solve it???

rena · Answer

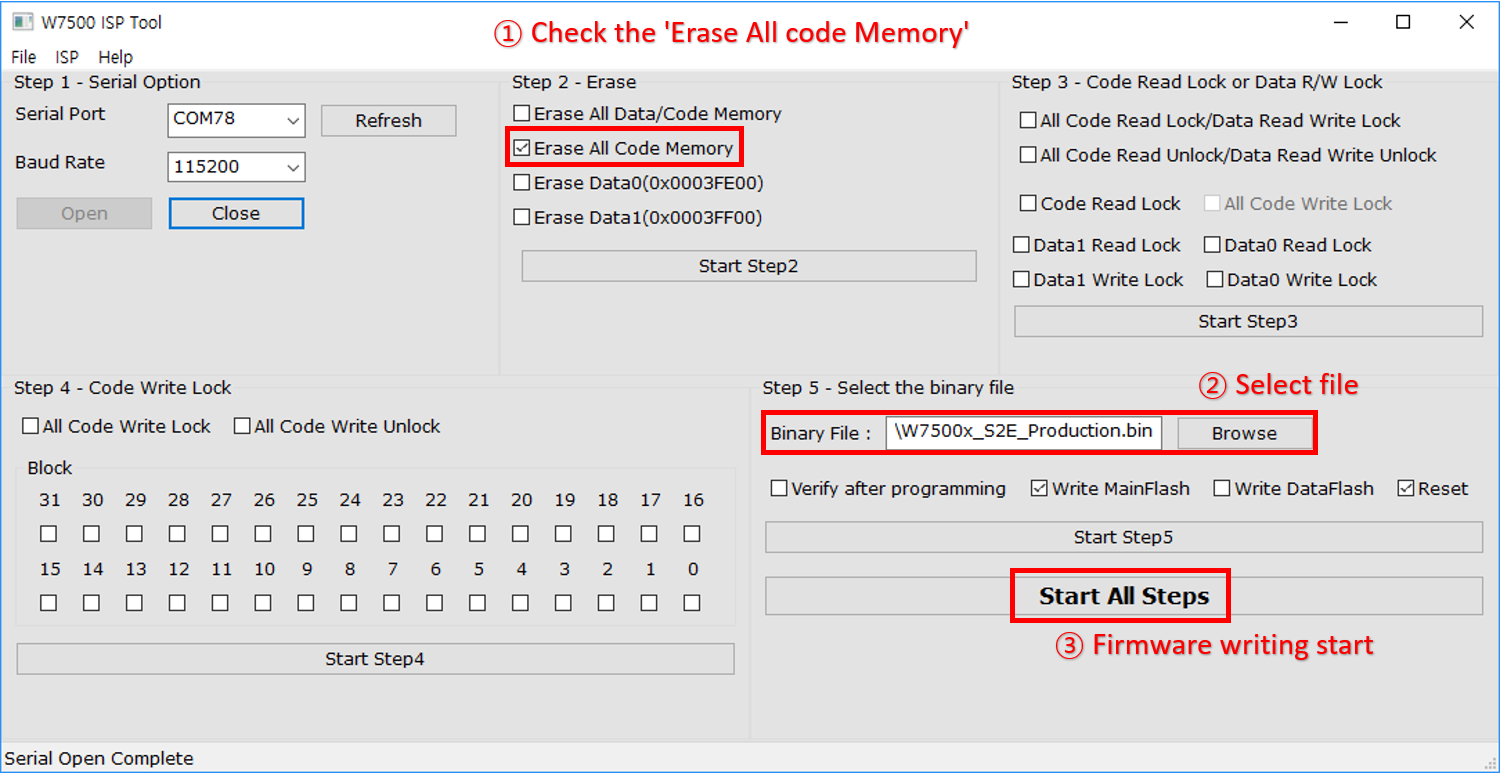

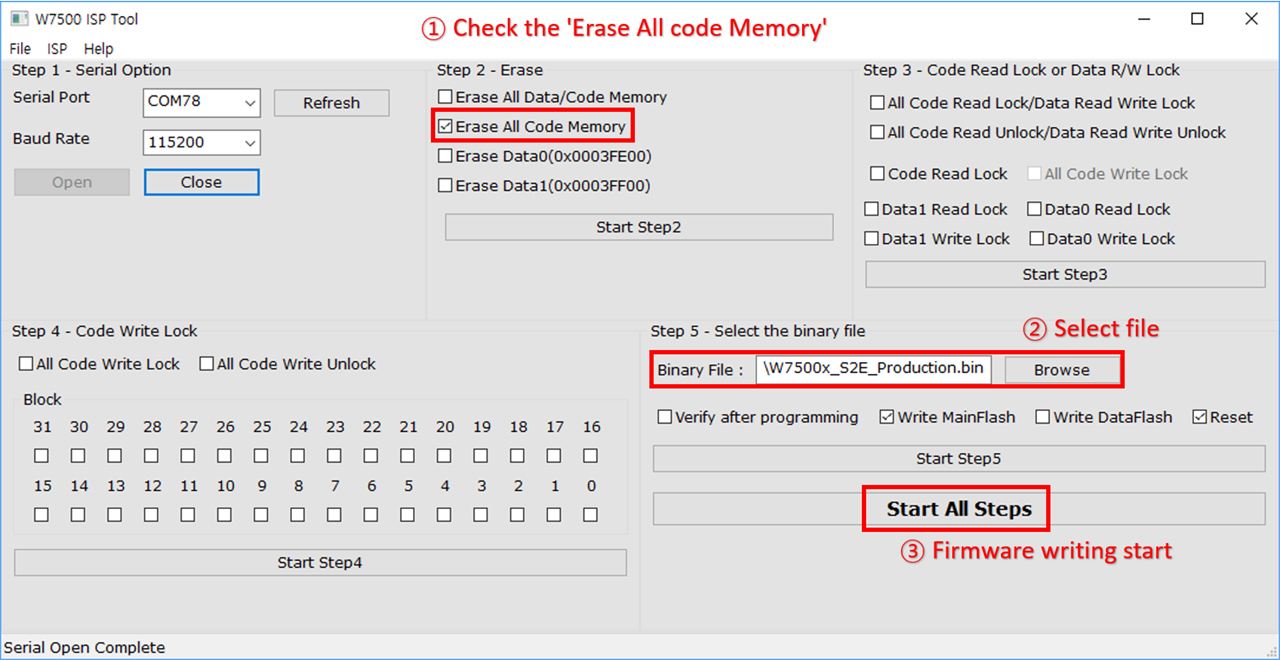

Hi, @Rathesh1. Rathesh1: i uploaded firmware as flash programming Did you use the ISP program when uploading firmware? If you did not check the ‘Erase all code block’ option, the data area of memory may have been cleared. First, connect the device using the USB type B cable and check the debug message. and you can refer below link. WIZ750SR Recovery User guide Thank you.

Swap · Answer

Hi Rena, I have same issue. I programmed it using wizconfig-V1.0.0.exe. Firmware updated okay. After programming blue light doesn’t glow. Also it doesn’t detect on above utility. I also managed to recover it. But then how to program it? Please help. Regards, Swapnil

Swap · Answer

Hi rena, I took source code from following link of v1.2.4 GitHub Releases · Wiznet/WIZ750SR WIZnet Serial to Ethernet(S2E) module based on W7500 chip, WIZ107/108SR S2E compatible device - Wiznet/WIZ750SR Compiled this code in Keil without any changes in source code. I updated firmware using config tool. For updation I used binary file “W7500x_S2E_App.bin” from “WIZ750SR-1.2.4\WIZ750SR-1.2.4\Projects\S2E_App\bin” path. I found same issue. So I again updated file using config tool with binary file “WIZ750SR-1xxv124.bin”. Then it is working fine. Means I only updating App part. So there is no requirement of WIZISP. It is not working only when I complied source code and using this binary file. Is there any issue with source code or starting address? Starting address of IROM1 is 0x7000 and IRAM1 is 0x20000000. Please help. Thanks and regards, Swapnil

Swap · Answer

Hi rena, Following are debug messages for your reference. phy id detect error!! phy id detect error!! ================================================== WIZ750SR >> WIZnet Serial to Ethernet Device >> Firmware version: 1.2.4 Stable ================================================== - Device name: WIZ750SR - Device mode: TCP_CLIENT_MODE - Network settings: - Obtaining IP settings: [Static] - TCP/UDP ports + S2E data port: [5000] + TCP/UDP setting port: [50001] + Firmware update port: [50002] - TCP Retransmission retry: [8] - Search ID code: - Disabled: [None] - Ethernet connection password: - Disabled (TCP server / mixed mode only) - Connection timer settings: - Inactivity timer: [1000] (sec) - Reconnect interval: [3000] (msec) - Serial settings: - Data UART port: [UART0] + UART IF: [RS-422/485] + 115200-8-N-1 / Flow control: NONE - Debug UART port: [UART2] + 115200-8-N-1 / NONE (fixed) - Serial data packing options: - Time: Disabled - Size: Disabled - Char: Disabled - Serial command mode switch code: - Enabled - [2B][2B][2B] (Hex only) - Hardware information: Status pins - Status 1: [PA_10] - PHY link - Status 2: [PA_01] - TCP connection - Hardware information: User I/O pins - UserIO A: [PC_13] - Digital / Input - UserIO B: [PC_12] - Digital / Input - UserIO C: [PC_09] - Digital / Input - UserIO D: [PC_08] - Digital / Input ================================================== # MAC: 00:08:DC:55:CC:1C # IP : 192.168.11.8 / Port: 5000 # GW : 192.168.11.1 # SN : 255.255.255.0 # DNS: 8.8.8.8 # Destination IP: 192.168.11.3 / Port: 5000 > SEG:TCP_CLIENT_MODE:SOCKOPEN Thanks and regards, Swapnil
