Write error to change ip address for wiz107sr
Serial-to-Ethernet & ConfigTool
No replies yet. Be the first to reply.
Join the discussion.
Serial-to-Ethernet & ConfigTool
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: Write error to change ip address for wiz107sr
by rena ·
Hi, @NewUser.
I’m sorry for the late reply.
First, please let me know which firmware version you are using and detail test procedure for setting IP address. (program information, used command, etc)
Thank you.
RE: RE: Write error to change ip address for wiz107sr
by NewUser ·
Hello rena. the firmware version for wiz107sr is 4.06. We use FPGA with 8051 hdl core with peripheral design. Writing 8051 C code firmware to use uart to program cmd “LI\r\n” (4C490D0A in hex) to serial wiz107sr. Use logic analyzer to capture wiz107sr pin 3 “RXD” and pin 7 “TXD” serial communication. FPGA uart TXD sent “4C490D0A” to wiz107sr RXD pin. From logic analyzer could see log debug cmd respond given by wiz107sr TXD to FPGA uart RXD.
RE: Write error to change ip address for wiz107sr
by rena ·
Hi, Please check the following.
RE: Write error to change ip address for wiz107sr
by NewUser ·
Hello rena. (1) Initial power-up/startup the device status is open. (2) Sent “LI\r\n” only , got two respond cmd :=> (a) LGWIZ107SR:VER4:06:STARTED1310 (b) LGHWSWITCHOKLGMAC:00.08.DC.53.2B.C8LGGW:192.168.11.11310LGSN:255.255.255.01310LGIP:192.8.8.21310
LGSEGCP:TCP:STARTED1310LGSEGCP:UDP:STARTED1310 . Later check , status became ATMODE.

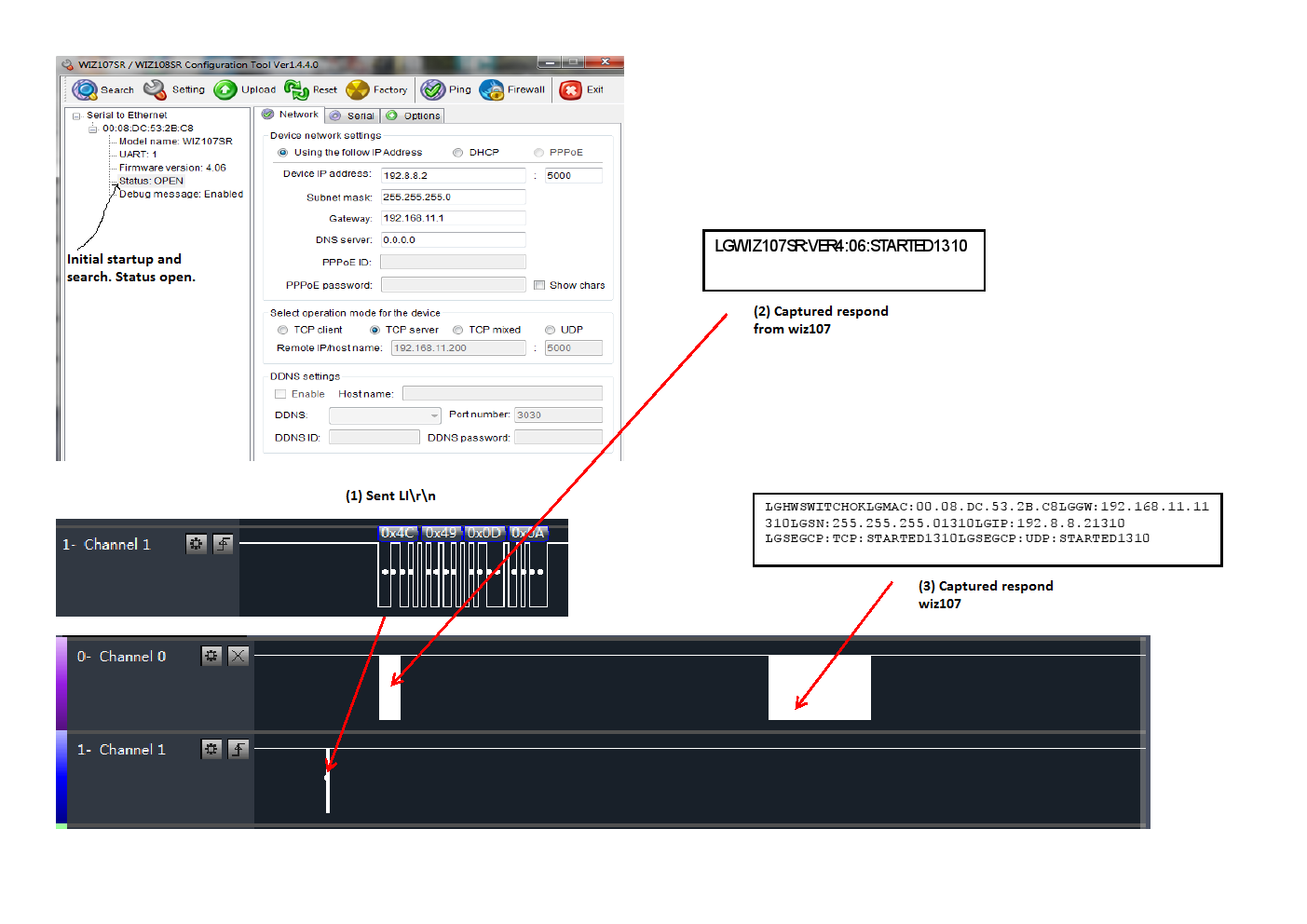

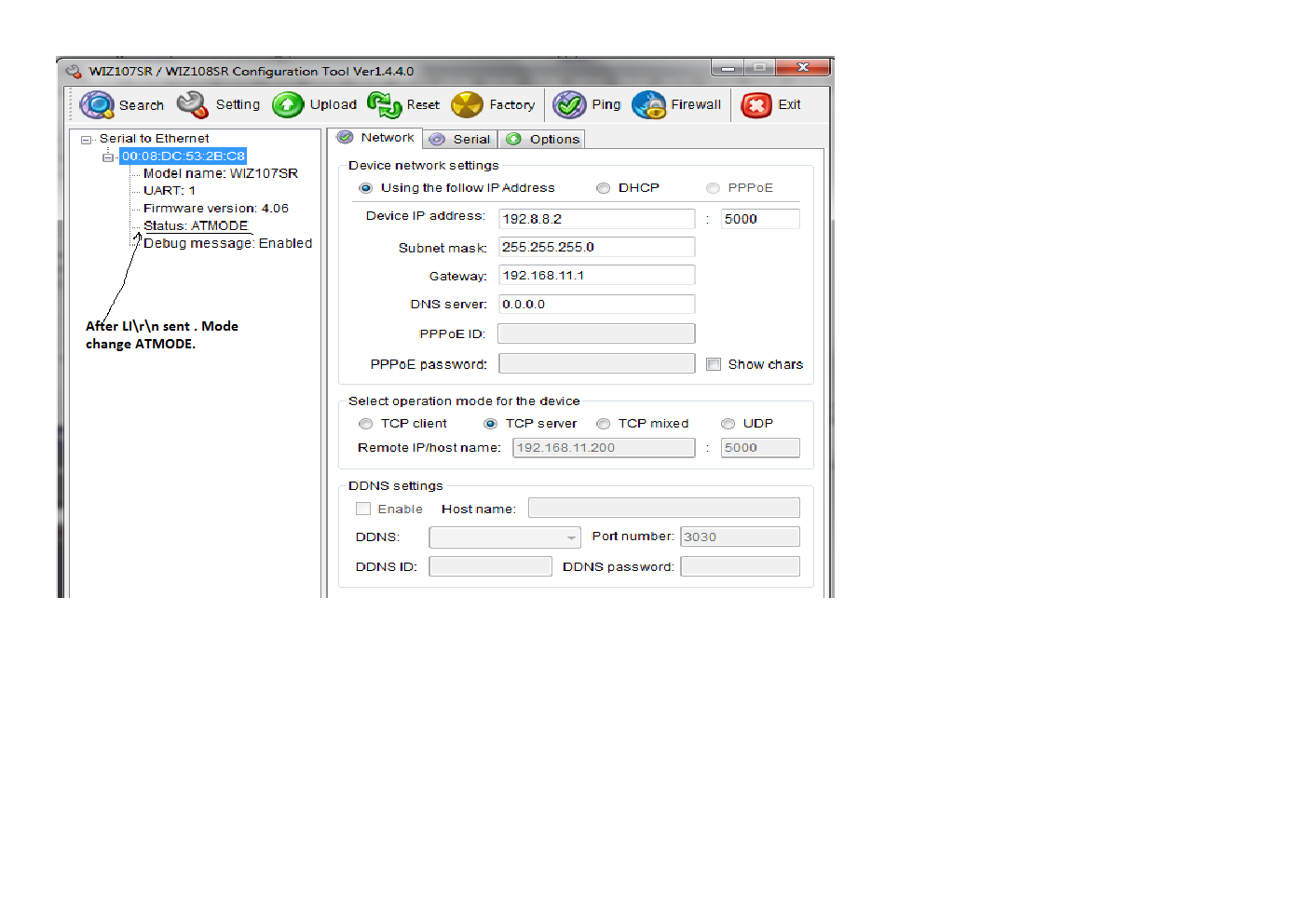

Below snapshot logic analyzer captured :
RE: Write error to change ip address for wiz107sr
by rena ·
As shown in the manual, if you send the ‘LI’ command to the device, it will respond with LI+IP information. for example, “LI192.168.11.2”.

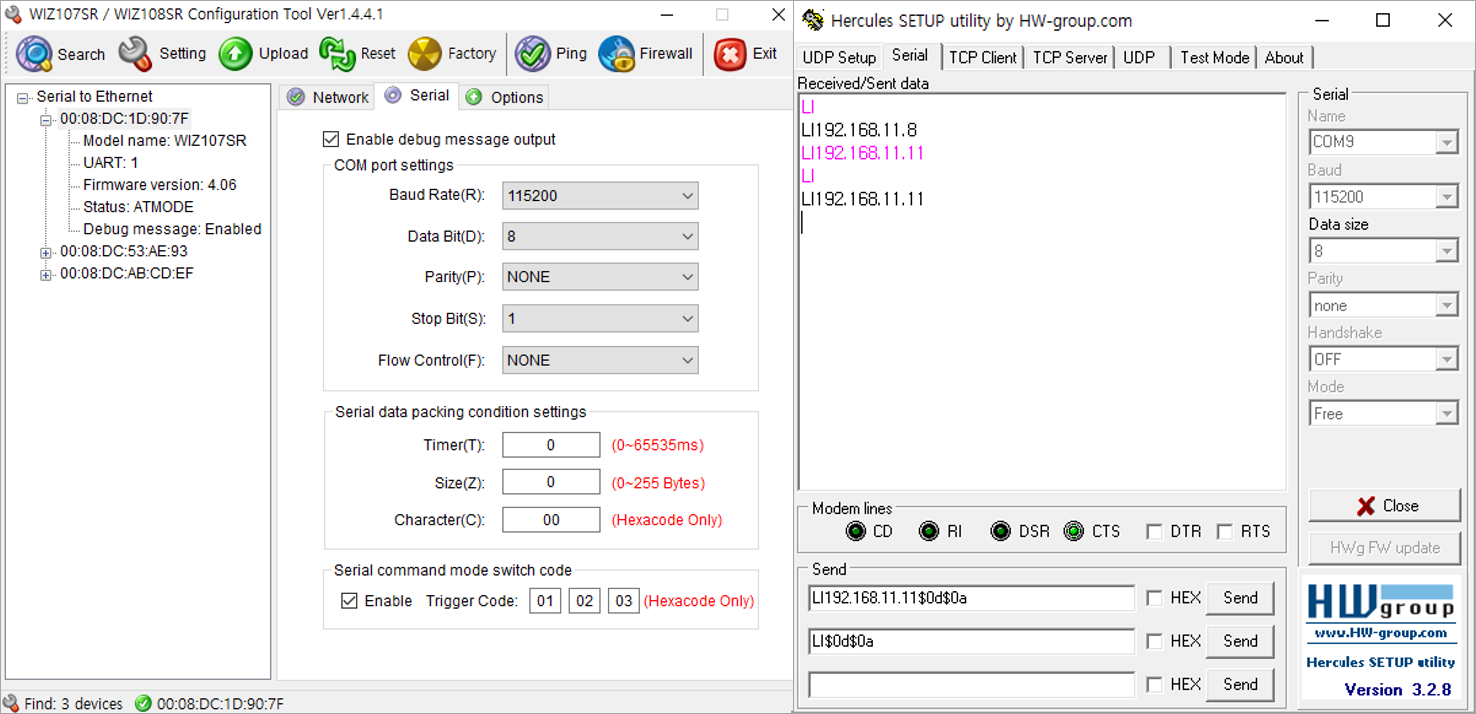

Like below image.
(‘$0d$0a’ is ‘\r\n’)
Did you test the device with other test programs?
If not, you should check the device operation with the test program first.
The program can be downloaded from the link below.
Thank you.
