WIZ107SR need to factory reset module...

Question

Hi. I have two TTL 107SR module, neither of which will respond to the config tool, and they cannot be found. I CAN ping them on 192.168.1.5, but even a TCP search fails with the config tool. I would like to force a factory-reset on both of these modules, so I know where I am. I have tried shorting J1 and also linking nFAC_RST to ground and cycling power, but they are still invisable to the config tool. Config tool version 1.4.4.1, which seems to be the latest you can get. Windows 8 Professional 64-bit. Have also tried using the config tool from Windows XP, but still no comms. Brand new RS232 versions DO talk to the config tool just fine, but the TTL ones won’t. This is most likely cos I have setup the TTL ones previously with some setting that makes them hard to find with the config tool, so the easiest solution, would be someway to force a factory reset on both of these modules, so that the config tool will then respond. Can anyone help?

irina · Answer

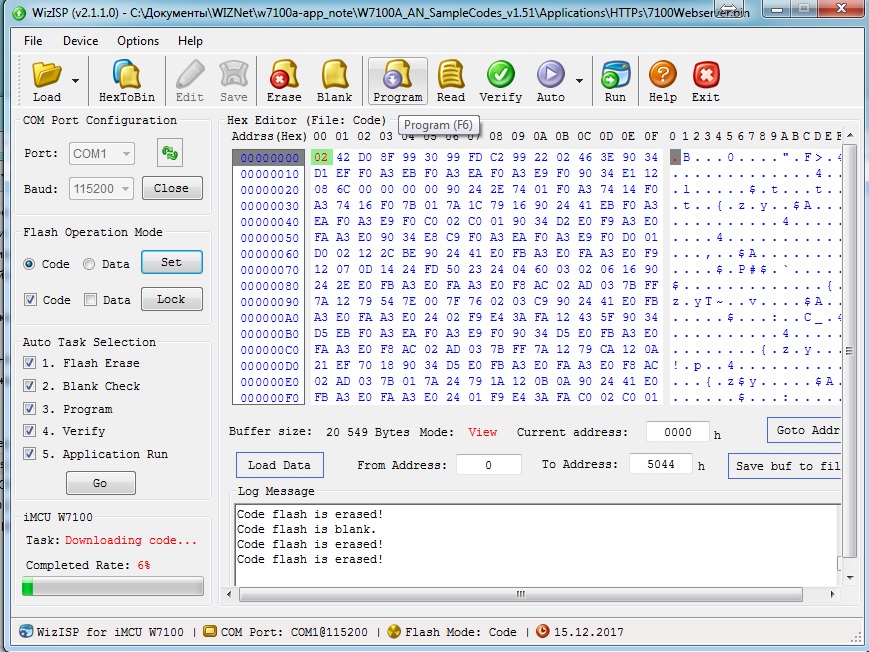

Hi, Grogster. Grogster: This is most likely cos I have setup the TTL ones previously with some setting that makes them hard to find with the config tool, so the easiest solution, would be someway to force a factory reset on both of these modules, so that the config tool will then respond. The latest version of WIZ107SR module does not support the physical(hardware) factory reset function. Below links will help you. Change W7100 Chip For W107SR module WIZ107/108SR hi i’m using W107SR Module to send data from serial to Ethernet suddenly the Rx pin was shorted to Ground , i think it was a mistake from me caused this pin to be shorted from inside the Chip i have changed the on Board W7100 Chip(NAJTS-00001521) with another one (N9KH3-00001440) the slide button of booting the software in 1 to but the on chip software my question is is the new W7100 chip is configured to work properly with the default ip of W107SR which is 192.168.11.2 ? or i need to re… I can`t load WIZ107/108SR I can not download the firmware via the program WizISP: 1.I put the mode code 2. I’m erase the chip. 3. Checking the blank 4.I press to program. And the process stops all the time in different places but has never reached the end. I tried with different .bin from examples, the situation is the same. [error] The download process can stop all the time in different places. For programming, I use the 107SR module, which was soldered with a clean 7100A. If you are having difficulty performing firmware recovery, Please contact the person you purchased the product from and request a RMA.

irina · Answer

Hi, Grogster Grogster: Can you please give me more exact instructions on what I should be doing to effect a factory reset on these modules. You can recover your WIZ107SR module using factory firmware in below link. Problem making W7100A-100 equal to W7100A-S2E-100? W7100A Hi. you must be WIZ107SRv4_06p.bin file. no WIZ107SRv4_06.bin. It is no include boot code. refer to below binary. WIZ107SRv4_06p.zip (22.6 KB) Thank you. At this time, you have to program the flash memory using the WIZISP tool for W7100A MCU. Download the WIZISP program via the link below and try to recover your product. http://www.wiznet.io/wp-content/uploads/wiznethome/Chip/W7100A/Utility/WizISP_Program2.1.1_and_Guide1.0.zip Below link will help you for using WIZISP tool. I can`t load WIZ107/108SR Hi, NKIM. I suggest using the ‘Auto Task Selection’ and ‘Go’ button located at the bottom left. Please check the steps 1 through 3 only. (For the W7100A chip, the ‘Verify’ step is meaningless due to the specificity of the memory structure, such as lock bit) After the serial connection of the ISP port, please press the ‘Go’ button to perform the ISP process. I’ll guide you through a simple product recovery steps. Connect WIZ107SR and PC via the serial interface. (Check the COM port, If necessary, use USB-RS232 converter) Reboot the module while shorting 1 and 2 of J1 on board. (Enter MCU boot mode) Run WIZISP tool and ‘Open’ the serial port [WIZISP] Select the firmware binary file attached to the link above [WIZISP] Check the Step 1 ~ 3 of ‘Auto Task Selection’ and then click ‘Go’ button Reboot your WIZ107SR module I hope this answer will help you. Regards, Eric

Grogster · Answer

Awesome, thank you very much. I will try this later tonight and report back. I also thank you for such a quick reply - was not expecting that.

Grogster · Answer

Hi there. OK, downloaded new firmware OK, but still can’t talk to the module. In the Config Tool, what should be in the ‘Input code’ box of the search window? I expect this needs to say something like WIZ107SR or something - I tried that just to see, but no response. EDIT: I have tried another module, and I can talk to this one just fine with the config tool. Perhaps the one I have been trying to get working has been damaged or something? I am open to any other suggestions, but I think I will just swap modules for now. I would have quite liked to have got the problem one going again though.

Grogster · Answer

Yes, I think that must be the case. Oh well. At least I tried. I will throw this one away and use the other one that IS working. I will have to replace the dead one from your on-line shop. Thanks for trying to help me anyway. G.
