RE: Mag Jack and PoE
by CristianM ·
The mag jack from Wurth works. I have used it in my design without problems.

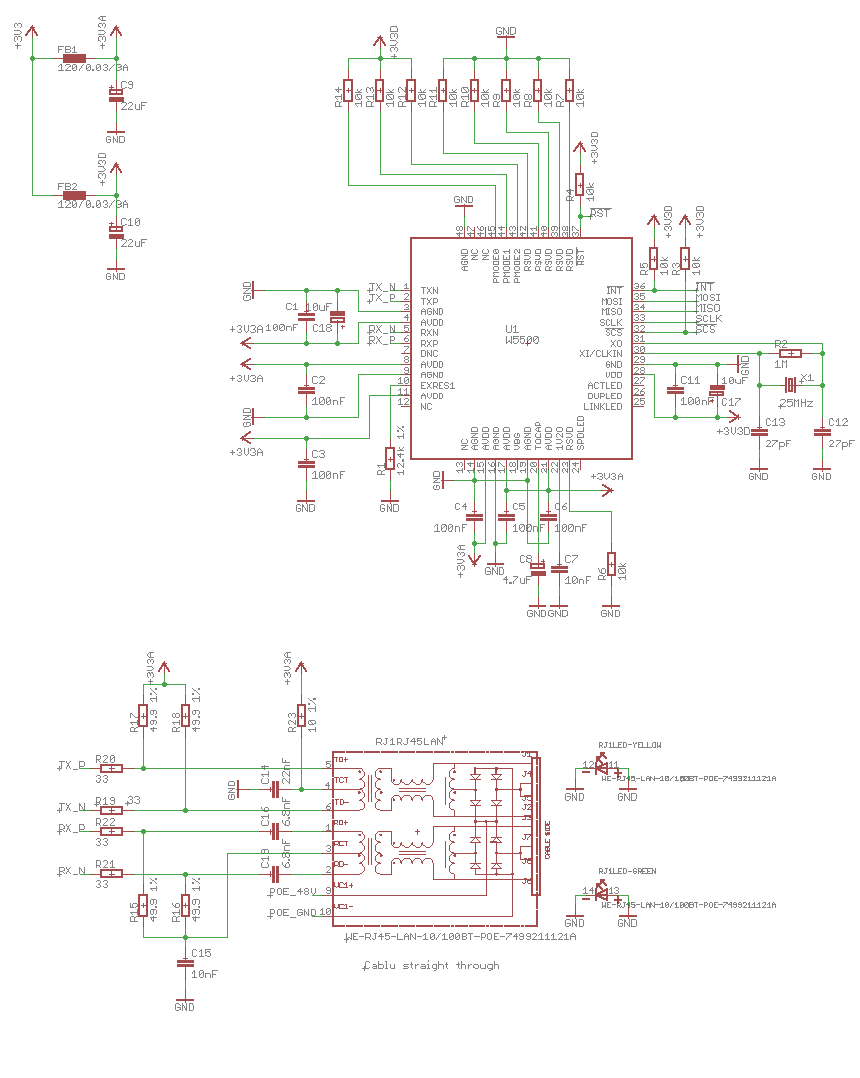

This is the schematic I used.
You can find the footprint for the mag jack on the manufacturer’s website.
Hope it helps,
Cristian
RE: RE: Mag Jack and PoE
by kumme74 ·
Hi Cristian,
Thank you very much for your help.
Regards
Klaus
