RE: Need Help with configure WIZ550IO to work with LabView and MForce MicroDrive
by Edward ·
Hi.
What is the main MCU?
Is the MForce MicroDrive Motor and WIZ55io used directly connected?
In the attached data, MForce MicroDrive Motor is just a driver.
Separately, I think you need a control MCU.
For example, if you put the MCU between WIZ550io and MForce MicroDrive Motor and control it with SPI.
Thank you
RE: RE: Need Help with configure WIZ550IO to work with LabView and MForce MicroDrive
by zengks ·
Hi,
Thanks for taking your time.
MForce MicroDrive is indeed a driver, which sends signal to an actual stepping motor from the same factory.
I did connect WIZ550io directly to one of the ports on the MicroDrive, which obviously didn’t work out.
If a controlling MCU unit could be a solution to this case, what MCU would you recommend to be connected between WIZ550io and MicroDrive?
And for the connections I am trying to accomplish, between the MicroDrive and WIZ550io, which one would be a master device over another slave device?
Thanks
RE: Need Help with configure WIZ550IO to work with LabView and MForce MicroDrive
by Edward ·
Hi.
There are two opinions.
If WIZ550io must be used, the MCU must have two SPI functions.
The MCU can be anything. ex) cortex series.
W7500 or W7500P module is a module with built-in MCU + TCP / IP Stack + PHY. Typically, there are WIZwiki-W7500 and WIZwiki-W7500P.

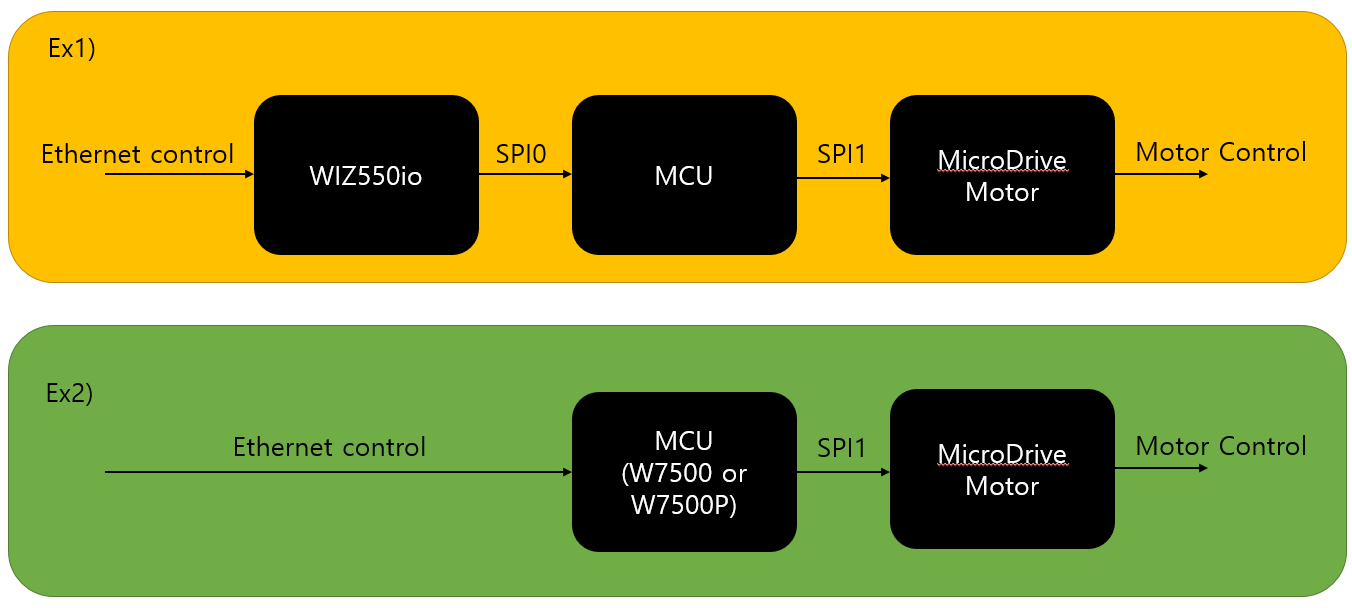

Please refer to the picture below. The picture below is the two ways I mentioned above.
Thank you
RE: Need Help with configure WIZ550IO to work with LabView and MForce MicroDrive
by zengks ·
Hi,
Given the datasheet from Wiznet, I’m aware of its default IP address is 192.168.1.2.
Is there way I can find what the default port number is on WIZ550io is ?
RE: Need Help with configure WIZ550IO to work with LabView and MForce MicroDrive
by Edward ·
Hi.
Read the SIPR Register of the W5500.
You can check the code in Iolibrary.
There is a SIPR register code for the W5500 in the library. (link below)
Thank you
