RE: WIZ550web - clearance under module?
by Edward ·
Hi.
Your question is board side height ? It is correct?

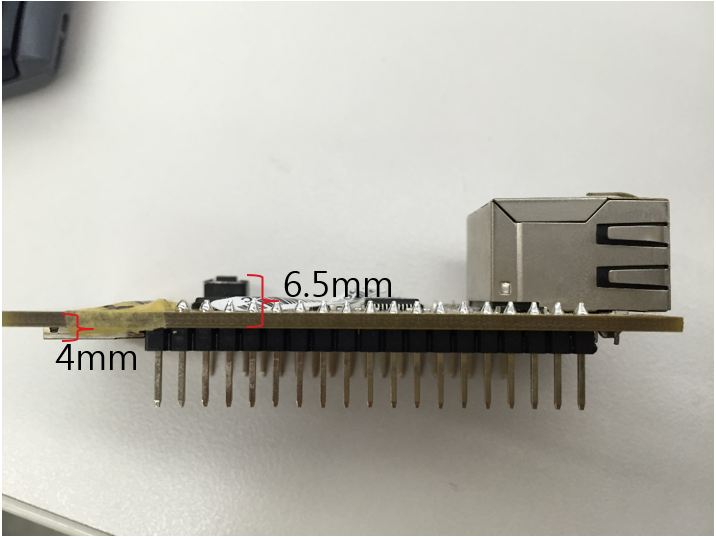

refer to below picture.

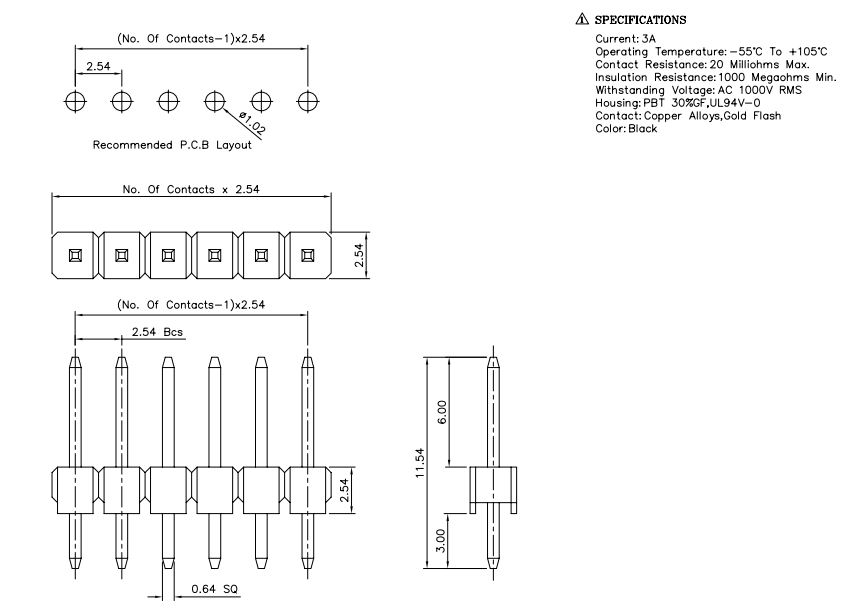

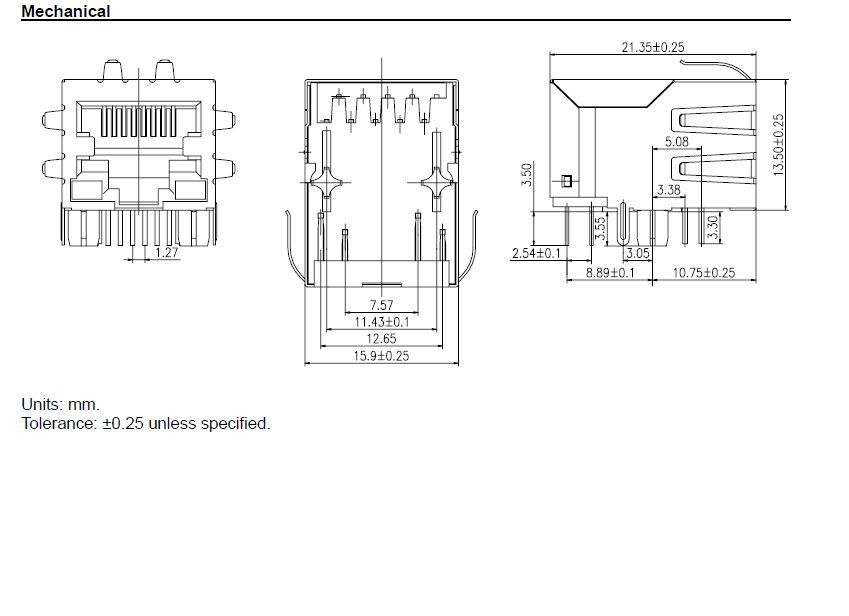

It is 2.54mm pin-header, RJ-45(MAGJACK) Dimension.
If don’t soldering pin-header & RJ-45,
Thank you
RE: WIZ550web - clearance under module?
by stinkindiesel ·
I was asking about the distance from the base board to the largest component on the back side of the module. This would be important if you wanted to place other logic on your base board under the module. I ended up just getting a module and measuring it, but this might be a good dimension to document in the future.
Gary
