RE: Wiz100sr
by jim ·
안녕하세요.

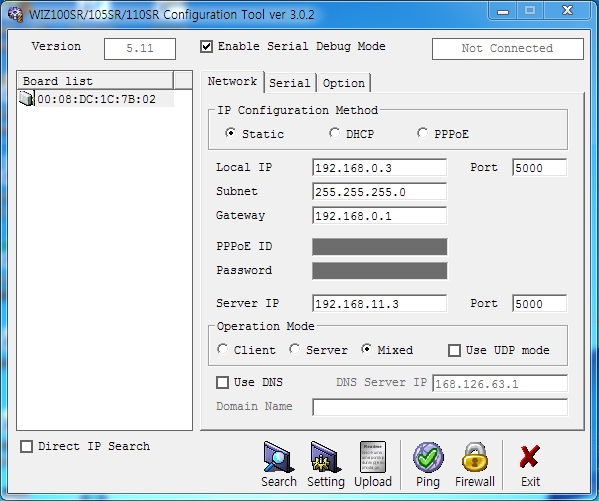

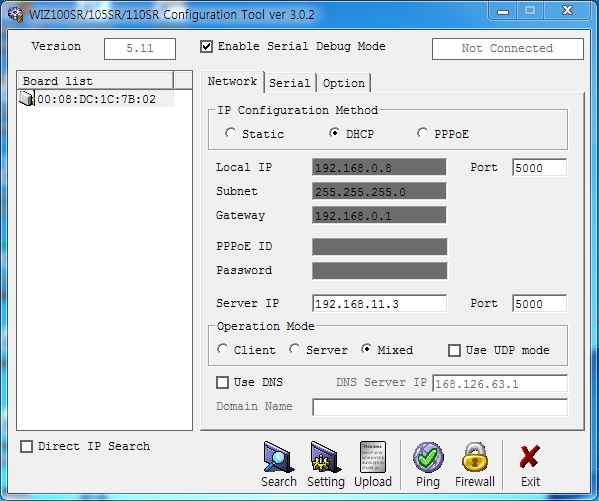

4.1버전에서 5.11 버전으로 Upload 후 재현 시험을 진행한 결과로는 이상이 없습니다. (첨부파일 참조)

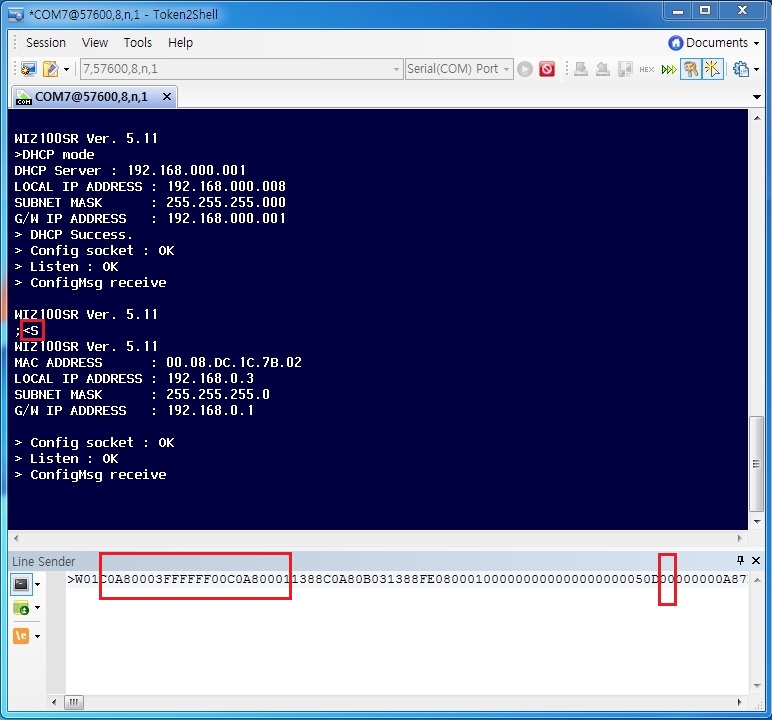

Write 동작 후 <S 응답을 확인하시고 HW trigger는 High로 원위치해야 합니다.
Write 동작 시 command의 ETX는 CR(0x0D) 값이어야 합니다. (User Manual 참조)
old.wiznet.co.kr/sub_modules/en/ … F_KeyWord=
감사합니다.
