RE: WizFi220 chip 안테나
by kaizen ·
안녕하세요.

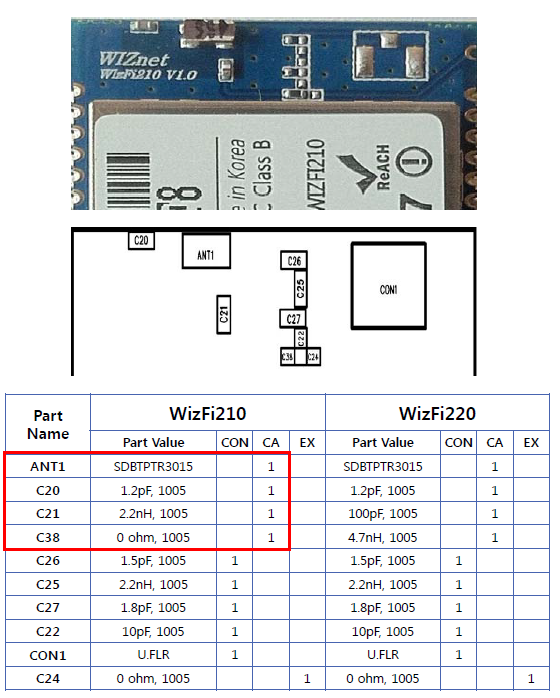

WizFi210 CON Type의 안테나를 Chip 안테나로 변경 하시려면 아래 그림에 명시 되어 있는 부품을 제거하고, 빨간 박스로 표시한 부품을 부착 하시면 됩니다.
감사합니다.
