Preview of W5500IoT in WIZ820io footprint + opt CPU

Question

I am just finalizing my W5500 design and have squeezed it into the same footprint as the WIZ820io which I have been using in another design. So this new module can drop in without changes into this older design and also multipurposes some of the pins to simplify interfacing in newer designs. There was also room to incorporate a small Cortex M0 + 16Mbit Serial Flash on-board as which means when I port my very compact code over then it can not only run as a serial server but also web and ftp as well, so it’s stand-alone too!. I’ve brought out Rxd and Txd onto the 10 pins in compatible format as well. The idea is that the M0 would always allow access to the host system even if the host software is in control normally. The reset is also bidirectional so it can reset or hold the host in reset if necessary, perfect for remote debugging or serial ISP. Since WIZnet only had chunky W5500 modules I was forced to do it my way and make a few improvements along the way too Although this is primarily for internal use I may consider selling them as well. [color=#FF0000]edit: Just changed the name to W5500IoT to reflect it’s usage in the Internet of Things.[/color] 773×383 143 KB

peterjak · Answer

[quote=“midnightcow”]Hi, Peterjak. Can you show me the photo of W5500Iot module ? Thank you.[/quote] This has been renamed IoT5500 so as not to be confused with WIZnet modules. [url]Dropbox - Error

peterjak · Answer

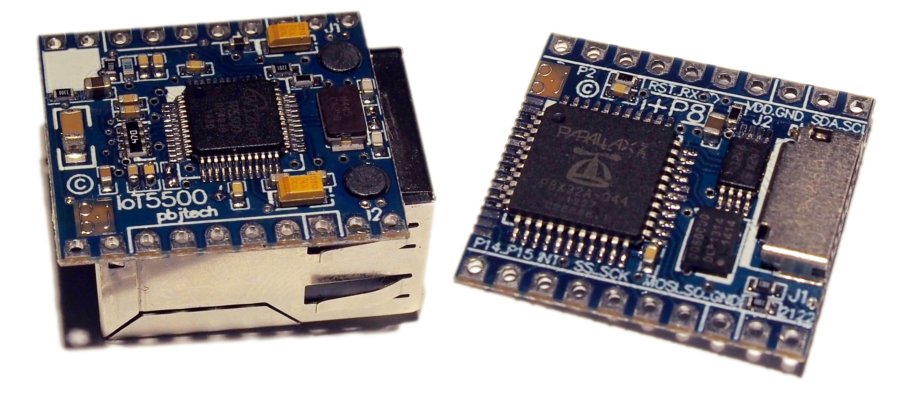

Latest product shot of both the IoT5500 module plus the optional +P8 network/file server with microSD header (or 16MB SPI Flash). The +P8 is normally sandwiched on top of the IoT5500 pcb to form a complete stand-alone HTTP/FTP server plus telnet and SMTP. So the W5500 can either be interfaced normally via SPI to the host CPU or the host CPU can interface serially to the +P8 network/file server to offload this overhead. The +P8 can even perform datalogging at the same time. 910×397 80.3 KB Interactive session [size=85][code]Tachyon> ifconfig ************ NETWORK STATUS ************ HARDWARE: CE1432 P8M using WIZnet W5500 LINK UP CHIP VER 0004 SRC IP 192.168.016.150. MASK 255.255.255.000. GATEWAY 192.168.016.001. MAC 02.FF.4F.39.66.FC. *** SOCKETS *** #0 00:00:00 MODE= CLSD PORT# TXRW= . .RXRW= . .RXSZ= .IR=00 ST=00 closed #1 00:00:00 MODE= TCP PORT# 21 53534 TXRW= . .RXRW= . .RXSZ= .IR=00 ST=14 LISTEN #2 00:00:00 MODE= TCP PORT# 57634 TXRW=4B55.4B55.RXRW= . .RXSZ= .IR=13 ST=00 closed #3 00:00:00 MODE= TCP PORT#10001 TXRW= . .RXRW= . .RXSZ= .IR=00 ST=14 LISTEN #4 00:00:00 MODE= TCP PORT# 80 49904 TXRW= . .RXRW= . .RXSZ= .IR=00 ST=14 LISTEN #5 00:00:00 MODE= TCP PORT# 911 TXRW= . .RXRW= . .RXSZ= .IR=00 ST=14 LISTEN #6 00:00:00 MODE= CLSD PORT# TXRW= . .RXRW= . .RXSZ= .IR=00 ST=00 closed #7 00:00:00 MODE= CLSD PORT# TXRW= . .RXRW= . .RXSZ= .IR=00 ST=00 closed ok Tachyon> ls IoT5500 WORDS .DCT FIRMWARE.ROM WORDS2 .DCT W5200 .FTH EASYNET .FTH EASYFILE.FTH SDCARD .FTH CE1372 .FTH EXTEND .FTH PREVIOUS.ROM SITE0001.LOG HELP .TXT MENU .TXT WELCOME .TEL WELCOME .FTP DEBUG .ROM POPCORN .WAV P8X32A .PDF HOME .HTM IMAGE3 . FRED .PNG CE1372 .PDF FSRSCH .PNG FSRPCB .PNG IMAGE . HTTP404 .HTM IMAGE2 . IMAGE1 . LOGON .HTM TACHYON .HTM SITE0008.LOG SITE0007.LOG SITE0006.LOG SITE0005.LOG SITE0004.LOG SITE0003.LOG SITE0002.LOG FAVICON .ICO SYSLOG .TXT HCB4208 .JPG CHARLCD .JPG ECOLCD .PDF FORUM .TXT LOVE .MP3 DRAGON .JPG IOT5500 .JPG DRAGON1 .JPG ok ok Tachyon> #1 00:00:00 MODE= TCP…

bangbh · Answer

Hi, peterjak. I like your logo on the PCB. In my case, I like to write the name of the girl group idol on the PCB.
