VITCON IM-10R
Serial type ETHERNET communication module.
adopted DC-DC convertor to supply input +24VDC, output +5VDC DC-DC
COMPONENTS
Hardware components
Software Apps and online services
WIZnet - W5500
x 1
Arduino - Arduino IDE
x 1
PROJECT DESCRIPTION
Module Spec.
- Power Supply input voltage : 24VDC
- Power Supply output voltage : 5VDC / 2A
- Ethernet controller : W5500
- Connection speed : 10/100 Mbps
- TCP, UDP
- Connection with Arduino on SPI port
- Operating ambient temperature: -20 ~ +50℃

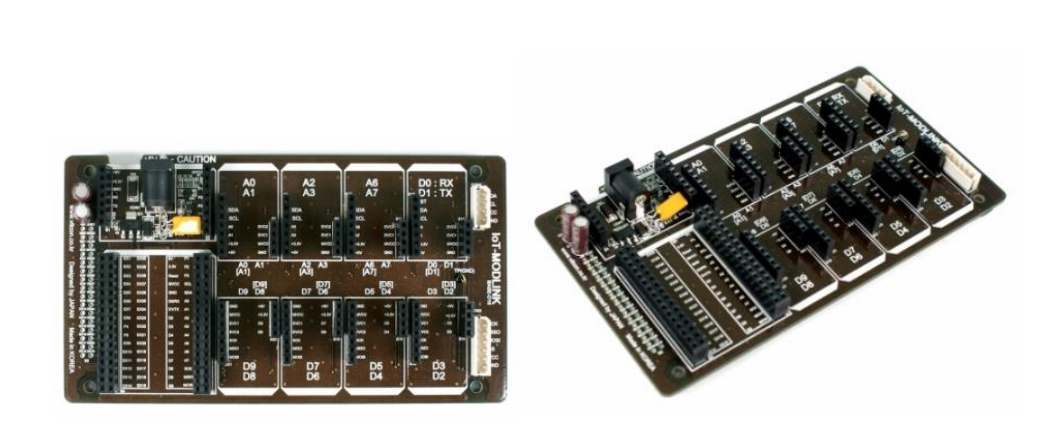

Base Baord
