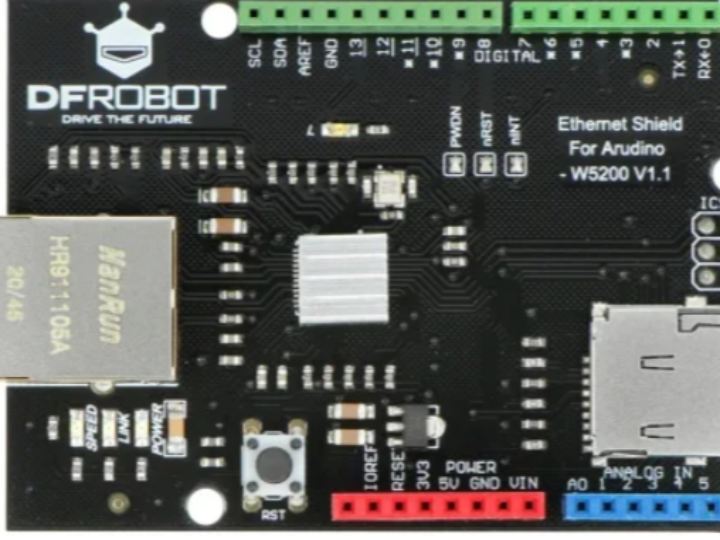

DFRobot Ethernet W5200 v1.1 microSD - Shield for Arduino

Project description

DFRobot Ethernet Shield specification - W5200 v1.1 with microSD card reader Operating voltage: 5 V RJ45 Ethernet socket Equipped with Wiznet W5200 InstalledmicroSD memory cardreader Communication via SPI interface Works with ArduinoUno andMega2560 Supports the officialArduino Ethernetlibrary Supports the officialArduino SD Cardlibrary It has an aluminium heat sink installed to dissipate excess heat Plate dimensions: 70 x 55 x 30 mm
