WIZnet Controlled Robotic Arm

Control your robotic arm from long distance using Ethernet.

WIZnet

Published April 04, 2023

Original author: Md. Khairul Alam · BangladeshOriginal source (new tab)

WIZnet Controlled Robotic Arm

Components

Hardware components

Project description

INTRODUCTION
If you want to communicate with a serial device then possibly maximum cable length is the main barrier. The maximum cable length for standard baud rate can be 50 ft. You can increase the cable length further by sacrificing the data rate. Moreover now a days most of the PC come without the serial port. An Ethernet to Serial converter may be an ideal solution of the above problems. You can transfer data to a serial device in a high speed through Ethernet port. Cable length can be 100 meters or more.

In this projec, I used WIZnet's Serial to Ethernet (S2E) device (WIZ750SR) for controlling a 3D-printed robotic arm. This is a prof of concept project and the capacity of the arm is very much limited. I developed a Windows application using open source Processing environment for controlling the arm from my desktop PC.

Before going further, please watch the demo video.

https://youtu.be/LMr3Y97pOqI


HOW TO USE

First, I configured the WIZnet device using S2E configuration tool from WIZnet as follows (note the IP address and the port number). WIZnet device is configured as TCP server. The Baud rate of serial communication should be 115200 (ignore the rate on the image).

WIZnet Controlled Robotic Arm

Then I connected a 3.3V USB FTDI converter to the WIZ750SR to check the serial communication. I used PuTTY to test the communication.

WIZnet Controlled Robotic Arm

I open two PuTTY windows one as Telnet client and another as Serial client.

WIZnet Controlled Robotic Arm

After successfully checking the serial communication I connected an Arduino board to the WIZ750SR using TX and RX pin.

For connecting WIZ750SR with Arduino board it is safe to use a level converter because WIZ750SR works at 3.3V where Arduino works at 5V. Here I connected a level shifter between WIZ750SR an Arduino board. High voltage side of the level shifter must be connected with Arduino and low voltage side of the level shifter must be connected with WIZ750SR.

WIZnet Controlled Robotic Arm

I tested the WIZ750SR device with both Arduino NANO and Arduino UNO.

WIZnet Controlled Robotic Arm

For controlling the robotic arm from my PC through Ethernet I developed an desktop application using Processing. Processing is sending data to Arduino using a virtual COM port.

A virtual COM port or a virtual serial port is an ideal solution for when a legacy software application expects a connection to a serial device port (COM port) but cannot connect, due to a physical lack of available serial ports. Instead, we reconfigure the computer to send serial port data over a local area network or the Internet as if over a true serial port. When the legacy application sends data to a serial COM port, it is actually transmitted over a TCP/IP network and back from the network to your legacy application — and presto! — we have a virtual serial or virtual COM port.

To know details about virtual COM port (how they work and how to configure) please keep a look of the link: https://www.netburner.com/learn/how-to-create-a-virtual-serial-port

To set up a virtual COM port to your PC you will be required a third party tool. You may use WIZ VSP for this purpose. I used another tool from NetBurner. I downloaded the NetBurner virtual COM port tool from here and configure it as follows:

WIZnet Controlled Robotic Arm WIZnet Controlled Robotic Arm

After configuring the virtual COM port as COM20 I developed a Processing program to interact graphically to Arduino robotic arm using WIZ750SR. To run the processing code you need to add the ControlP5 GUI library for Processing. Download the library from here: http://www.sojamo.de/libraries/controlP5/. Please note the COM port number which must be the number of the virtual COM port you created using NetBurner.

WIZnet Controlled Robotic Arm

The graphical output of the Processing program is as follows:

WIZnet Controlled Robotic Arm

From five slider I can control the rotation of the five servo motors of the robotic arm very smoothly and easily.

The complete source code for the application is attached to the code section.

The following figure shows the connection among PC, WIZ750SR and Arduino.

WIZnet Controlled Robotic Arm

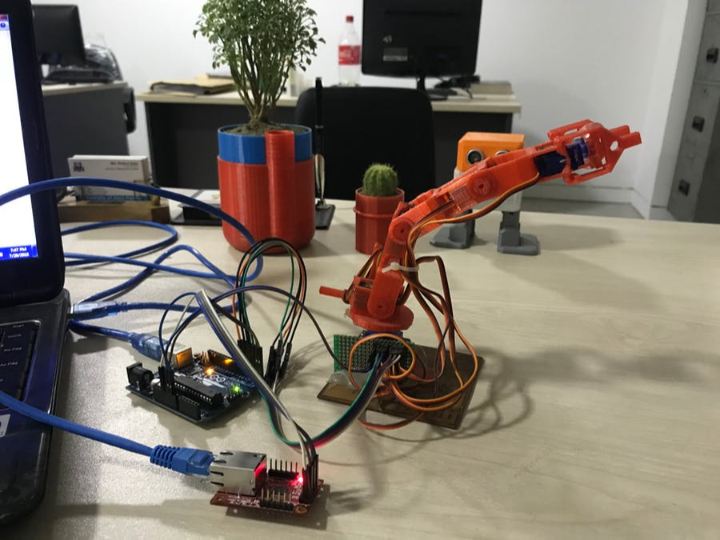

The tiny robotic arm is 3D-printed and design files are available in Thingiverse. I used five servo motor to control the arm. The servo motors are connected to Arduino digital pins.

WIZnet Controlled Robotic Arm


The arm is controllable from a long distance using Ethernet. No need to have a serial port in your PC. The complete Arduino sketch of for the arm is also attached to the code section. So make and enjoy!



Schematics

Connection of servo motors to Arduino


Arm schematic ytlxulke1o

Graphical Interface of Desktop Application


Output buisyhmsxc

Virtual COM Port


Vcom notional1 knuho9ovxd

WIZ750SR Pinout


Wiz750sr all pinout 20160628 nzs9bne 2batdiisrh shyh4taxag
