Smart Greenhouse

A complete functional unit for monitoring and controlling the internal environmental conditions of a greenhouse

WIZnet

Published February 10, 2023

Original author: Dr PanosOriginal source (new tab)

Smart Greenhouse

Components

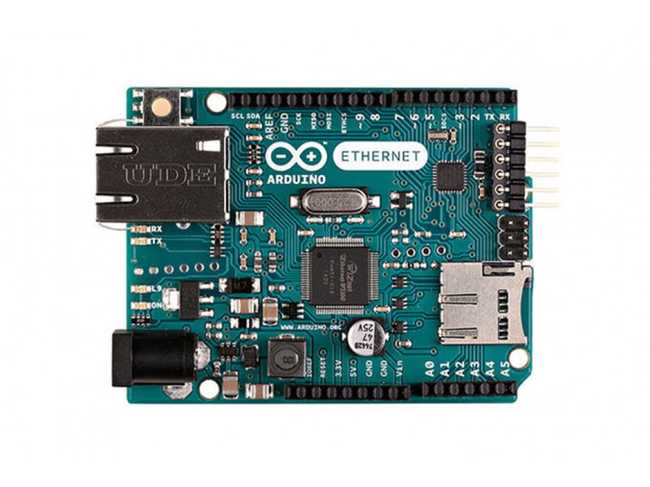

Hardware components



Software Apps and online services

Project description

ABOUT THIS PROJECT

This work was inspired by the effects of climate change taking place on our planet and affecting agriculture. It is immediately applicable to the optimization of agricultural production in greenhouses and contributes to slowing down the phenomenon of climate change through water and energy savings.

For this purpose, a complete functional unit for monitoring and controlling the internal environmental conditions of a greenhouse was implemented using a microcontroller (Arduino) and the development of the appropriate software.

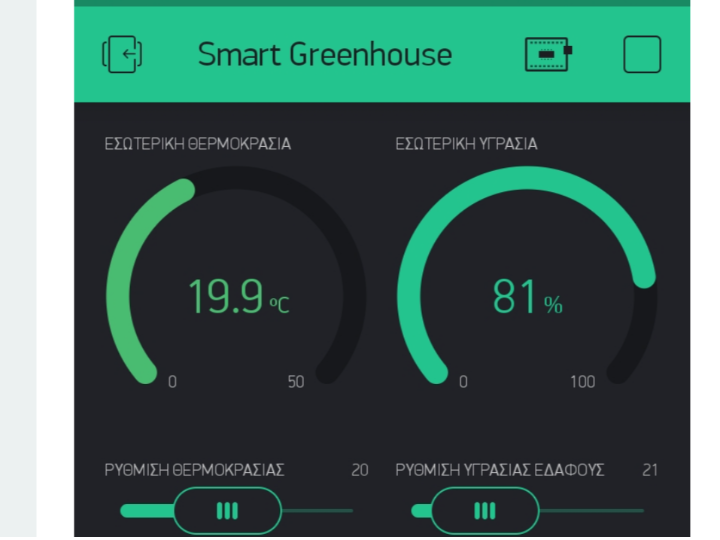

Also with internet connection we can remote monitor and control with an android or iOS device (a common smartphone or PC), using the application created for this purpose.

Although it did not exist at initial objectives of the work, at the process, export of automated crop yield measurements was achieved. But the most important addition would be the use of machine learning so that the unit can continuously improve the settings of the environmental conditions, therefore without external intervention to apply the ideal conditions for each type of crop and soil.

The total construction cost of the unit is very low, in our case a few tens of euros.

Features:

i. Water saving through controlled irrigation based on the existing soil moisture and the definition of the desired value.

ii. Energy saving through controlled heating and cooling in combination with external conditions.

iii. Monitoring and display of internal (temperature โ€“ humidity, soil humidity) and external environmental conditions (temperature โ€“ humidity) in real time and on a graph for a period of time.

iv. Control of internal conditions (greenhouse), with selection by the user of the desired value of temperature (heating) and soil moisture (automatic irrigation).

v. Monitoring and controlling system processes in real time, at any location, using a mobile phone or computer application.

vi. Fire detection โ€“ fire extinguishing.

vii. Motion detection in space (damage from animals).

viii. Measurement of production growth.

Screenshot 2021 01 14 08 10 07 354 cc blynk htydbxvqsh
Img 20210119 211551 69ffdu7u8a
Img 20201116 191800 6yfc8j9s1y
Screenshot 2021 01 20 13 07 16 408 cc blynk gq6fz0lrup
Smartgreenhouse tmdv80d6sz
EXPIREMENTAL MEASUREMENT OF PRODUCTION GROWTH WITH ULTRASOUND
 2 9kxmnhqguj
Img 20201230 184957 epfdzcjkdg
Screenshot 2021 01 10 19 15 06 750 cc blynk xkjulpktpz
WIN 10 ANDROID EMULATOR
Blynk win10 meappc3j0m
