Hub75 Studio – LED Matrix Display Design Platform Extended with WIZnet W5500 Ethernet
Hub75 Studio & Base Kit leverage WIZnet W5500 for 100 Mbps Ethernet, plus WiFi, 4G, RS485; GUI-based graphics, OTA, MQTT, HTTP, Modbus protocols.
0
Project description

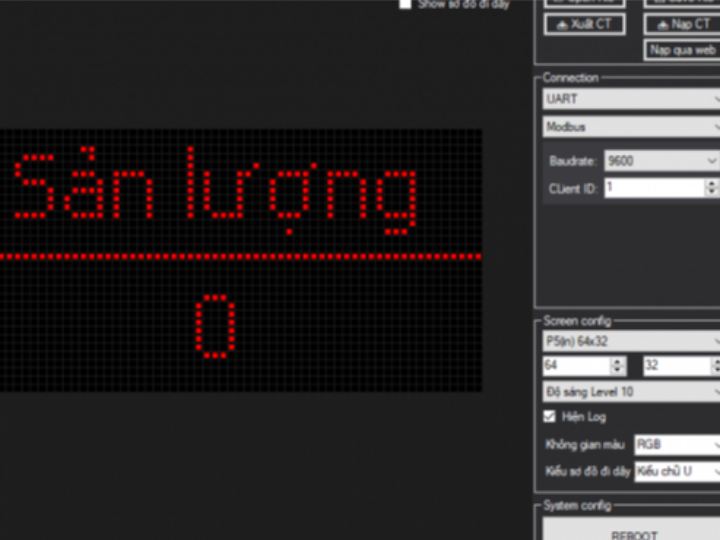

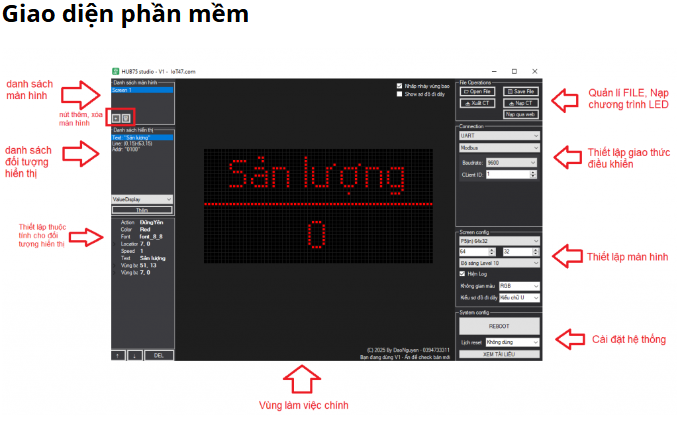

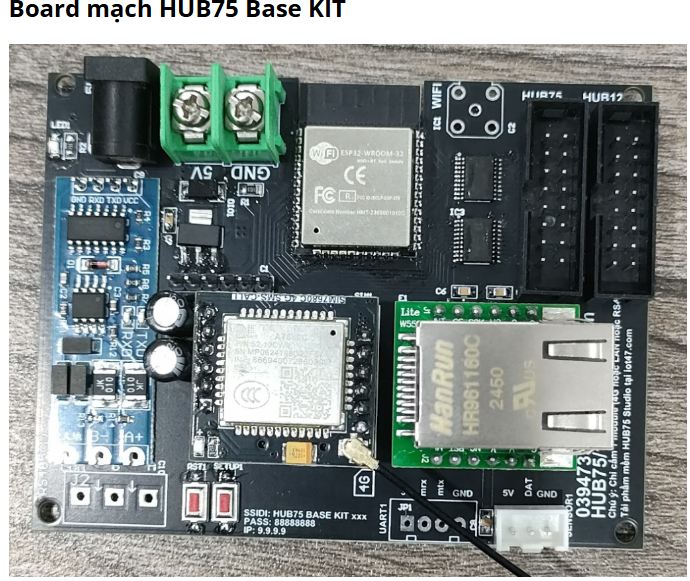

Utilization of WIZnet W5500 The Hub75 Base Kit uses an SPI-connected W5500 module to provide 100 Mbps Ethernet with full hardware TCP/IP off-load, reducing MCU load and preventing SIM (4G) or RS485 module conflicts when W5500 is installed Tự học IoT, Lập trình nhúng. Technology and Innovative Techniques Hardware: Supports 4G, WiFi, 100 Mbps Ethernet, UART, RS485, one sensor input, Hub75/HUB12 output (~300 P10 32×16 panels), min 1 972 Hz refresh, 60–120 FPS Tự học IoT, Lập trình nhúng. Software: Controls up to 350 P10 or 90 P5 panels, auto-remaps and detects panel configs, drag-and-drop GUI…
