An ESP32 Firmware That Watches Five Industrial Protocols

Francesco Adriani works in Perugia, Italy, and describes himself on GitHub as an OT cybersecurity and automation engineer covering PLC, SCADA and MES systems, industrial protocols, and teaching. His account, opened in October 2022 under the handle il-prof-f-a, holds seventeen public repositories, many of them small Python and Java teaching pieces, two local-only MQTT bridges for Tuya and Kasa devices, and an ESP32 bell manager for schools and workplaces. ESP32-OT-Security-Assessment is a much larger piece of work: roughly 90,000 lines of C and C++ across 176 source files, created on 15 August 2026 and last pushed on 23 August 2026, checked here on 27 August 2026.

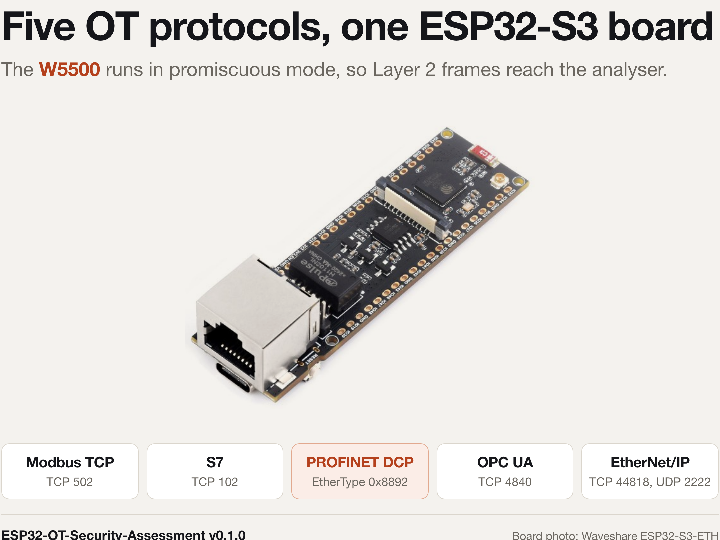

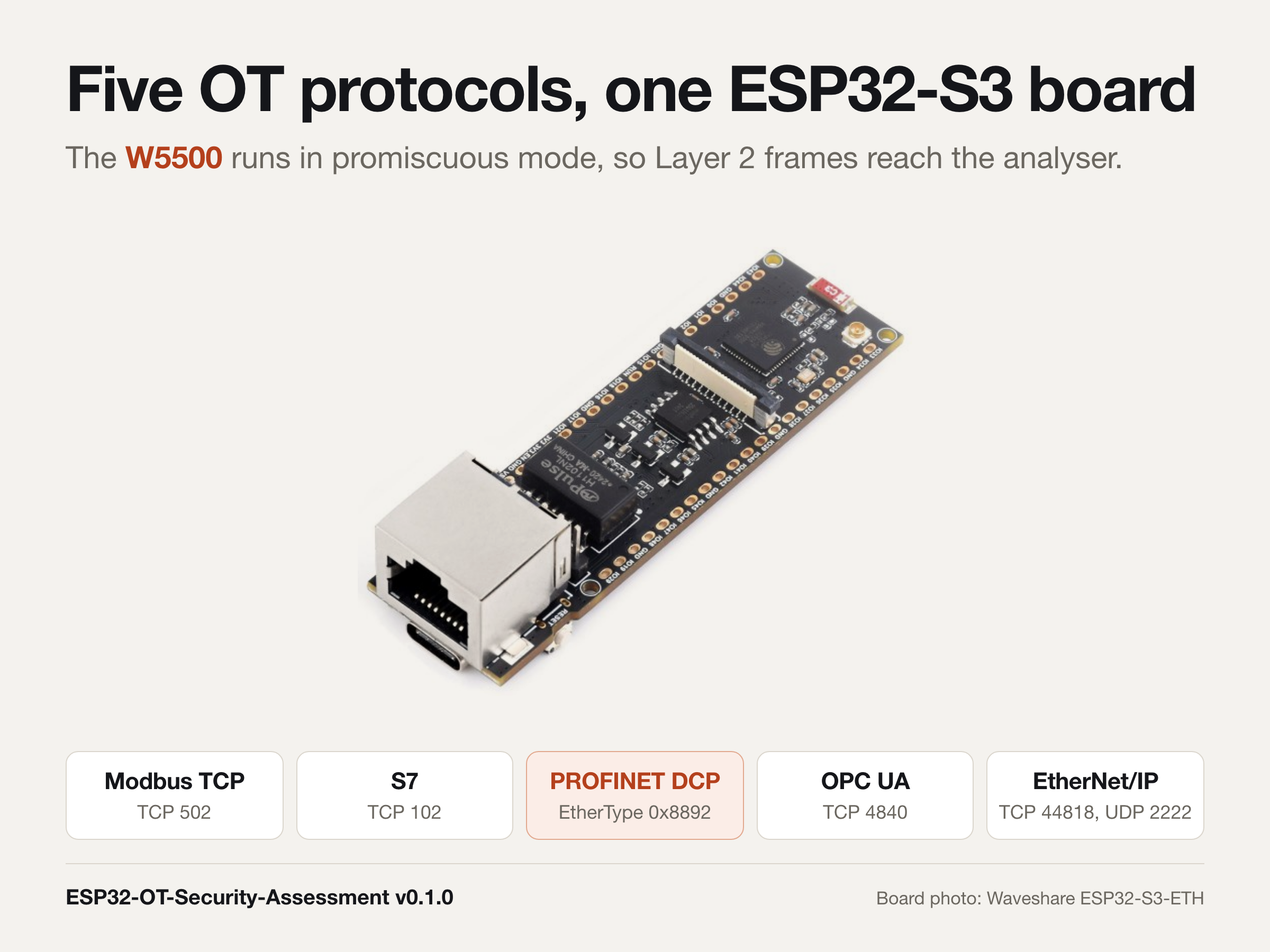

The tested W5500 target. Board photo: Waveshare ESP32-S3-ETH product page.

The firmware turns a development board into a passive observer of a plant network. It watches five operational-technology protocols, keeps a rule-based intrusion detection engine, runs authorised vulnerability checks and rate-limited fuzzing jobs, and serves all of it from a web interface on the device. One of the three tested hardware profiles is the Waveshare ESP32-S3-ETH, and the README states its make-up in one line: "This target combines ESP32-S3 Wi-Fi with a W5500 SPI Ethernet controller."

Two Networks on One Board

Operational technology has an awkward requirement for any monitoring device. The tool has to sit on the plant segment to see the traffic, while the person configuring the tool must not have to reach that segment to do so. The W5500 profile answers this with two separate interfaces: Wi-Fi carries the management web interface, and the wired port faces the network under assessment.

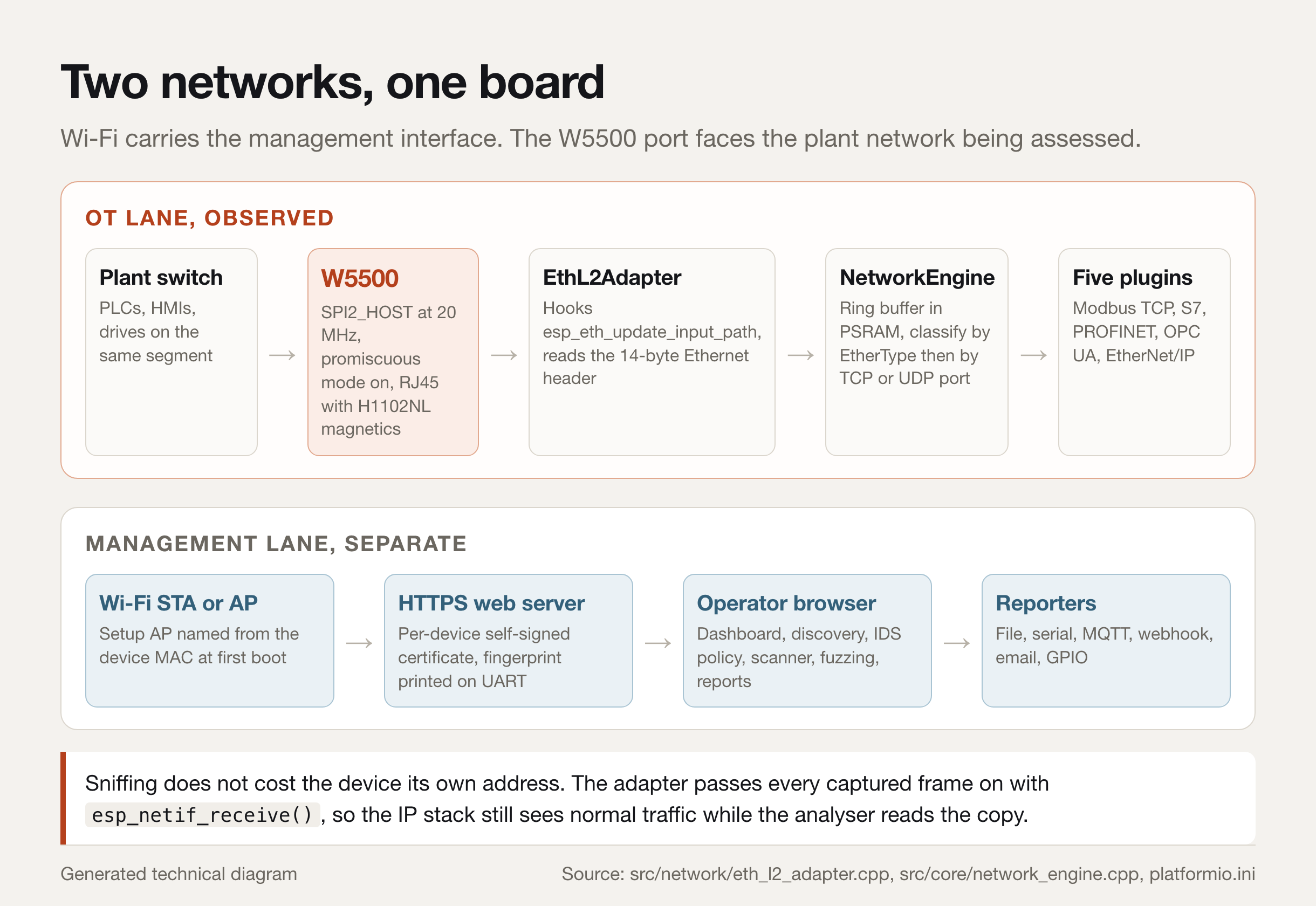

Generated technical diagram of the two lanes, drawn from platformio.ini and the network sources.

The capture path is short. EthL2Adapter installs itself as the driver input path with esp_eth_update_input_path(), reads the fourteen-byte Ethernet header off each frame, and hands the source MAC, destination MAC, EtherType and payload to NetworkEngine, which parks them in a ring buffer in external RAM. Every frame is then passed on with esp_netif_receive(), so the device keeps its own IP address and normal networking while the analyser works on the copy.

Why the W5500 Runs in Promiscuous Mode

An Ethernet controller normally throws away frames that are not addressed to it. That default makes a sniffer useless, so the esp32-s3-eth build sets CONFIG_ETH_ENABLE_PROMISCUOUS=y in its sdkconfig defaults and the adapter calls esp_eth_ioctl(eth_, ETH_CMD_S_PROMISCUOUS, &enable) once the input path is hooked. The code comment credits the LILYGO eth2ap example as the source of that call.

Generated technical diagram of the bring-up sequence in src/network/ethernet_manager.cpp.

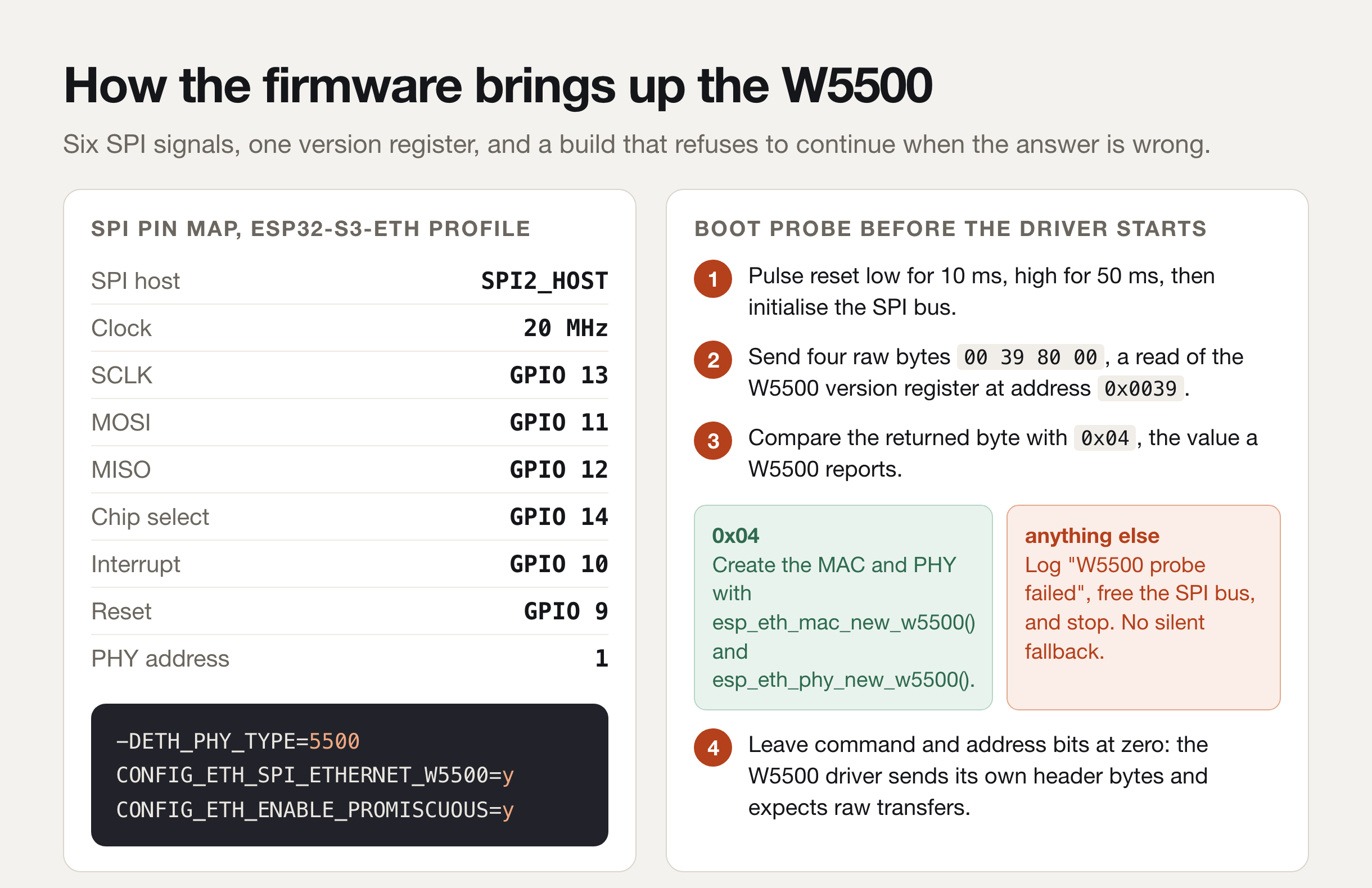

The chip evidence sits in the build files rather than in prose. platformio.ini gives the esp32-s3-eth environment -DETH_PHY_TYPE=5500 with SCLK on GPIO 13, MOSI on GPIO 11, MISO on GPIO 12, chip select on GPIO 14, interrupt on GPIO 10, reset on GPIO 9, SPI2_HOST and a 20 MHz clock. sdkconfig.esp32s3eth.defaults sets CONFIG_ETH_SPI_ETHERNET_W5500=y, and ethernet_manager.cpp builds the interface with esp_eth_mac_new_w5500() and esp_eth_phy_new_w5500().

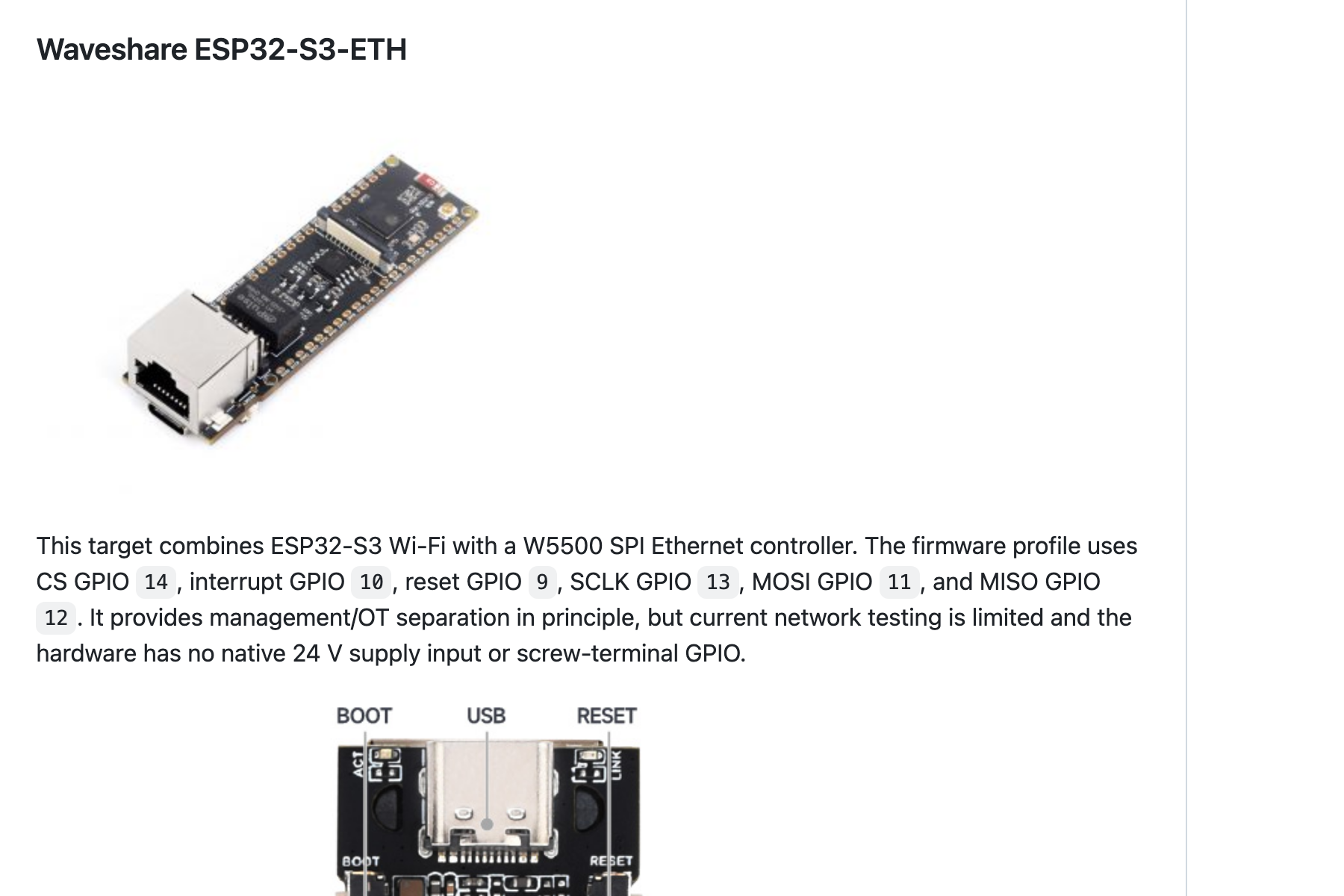

The README passage that names the controller and the pins. Screenshot: github.com.

One detail is worth borrowing regardless of the application. Before creating the driver the firmware pulses reset low for 10 ms and high for 50 ms, then sends the four raw bytes 00 39 80 00 over SPI, a read of the W5500 version register at address 0x0039. A W5500 answers 0x04. Anything else makes the firmware log "W5500 probe failed", free the SPI bus and stop, which turns a vague ESP_ERR_INVALID_VERSION into a pin or chip-select fault the installer can act on. The Waveshare board carries a Pulse H1102NL magnetics package next to its RJ45 jack, visible in the vendor product photograph.

Which Protocols the Firmware Watches, and How

The classifier in NetworkEngine reads the EtherType first and the transport port second. PROFINET DCP frames carry EtherType 0x8892 and LLDP frames carry 0x88CC, and both are routed to the PROFINET plugin because PROFINET builds its topology view from neighbour announcements. Everything else is matched on port: TCP 102 for S7, TCP 502 for Modbus TCP, TCP 4840 for OPC UA, and TCP 44818 with UDP 2222 for EtherNet/IP.

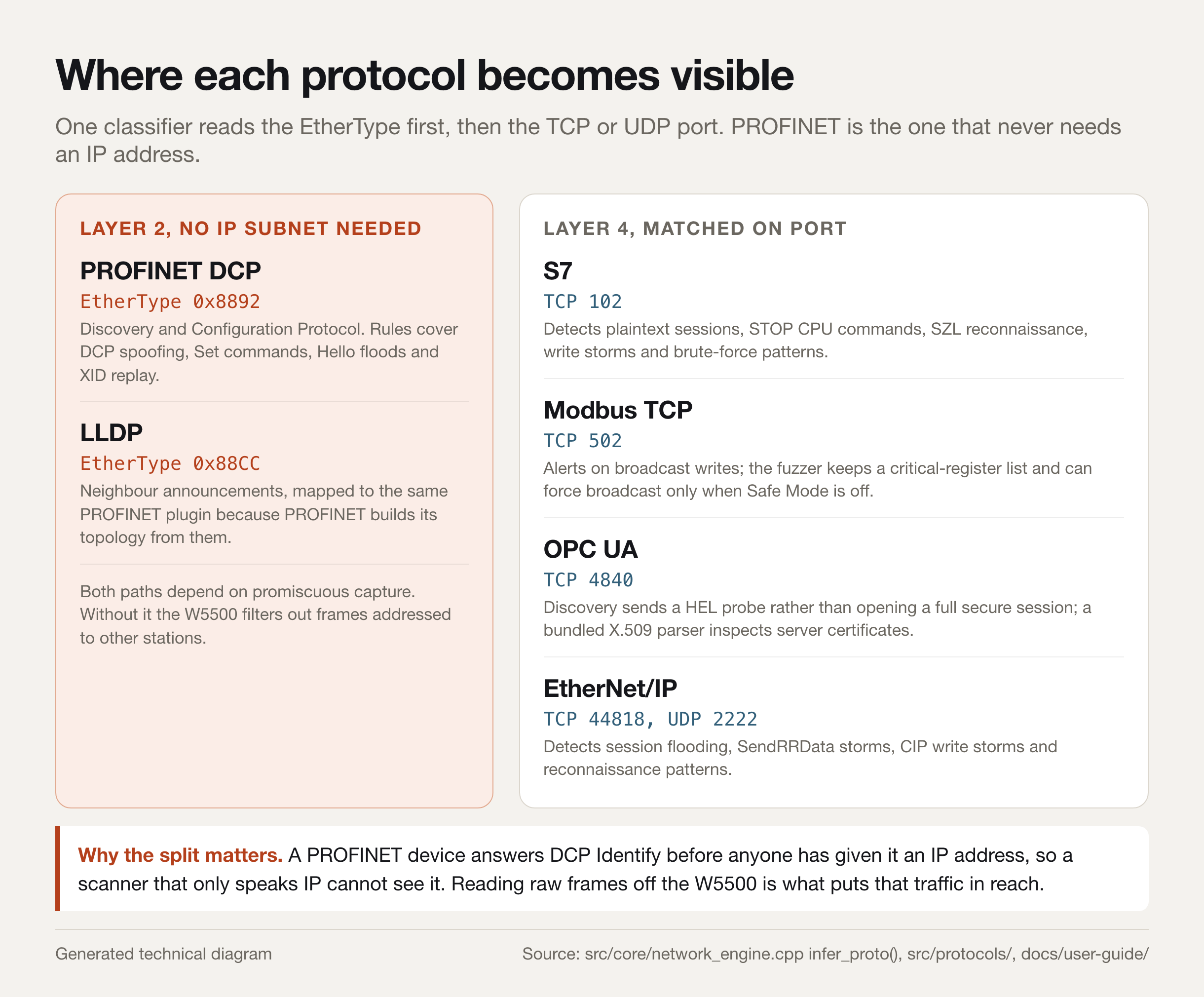

Generated technical diagram of the classifier, drawn from infer_proto() and the protocol plugins.

The Layer 2 path is the part that needs the W5500 in promiscuous mode. The project user guide is explicit about what that buys: PROFINET DCP discovery "uses Layer 2 discovery and therefore does not require an IP subnet". A PROFINET device answers DCP Identify before anyone has assigned it an address, so an IP-only scanner cannot see it at all.

Detection rules differ per protocol and are configurable from the IDS page. PROFINET rules cover DCP spoofing, DCP Set commands, topology changes, Hello floods and XID replay. S7 rules cover plaintext sessions, STOP CPU commands, SZL reconnaissance, write storms and brute-force patterns, with thresholds expressed as writes per 60 seconds and reads per 30 seconds.

Three Tested Targets, and What Each One Gives Up

The README publishes a hardware table that is unusually candid about limits. The W5500 board is not the best performer in the repository, and the author says so.

Read as a whole, the hardware table describes a trade rather than a ranking. The ESP32-P4 target gives the "best current functional result" but has no radio, which collapses the management and OT networks onto one wire. The W5500 target is rated "Functional on a limited set of tested networks", yet it is the only one of the three that keeps the operator on Wi-Fi while the wired port stays on the plant segment.

What the Operator Sees

First boot is deliberately awkward, which is the right instinct for a tool that reads industrial traffic. A release image contains no administrator password. The device raises a WPA2 setup access point named from its own MAC, prints a one-time setup token and the HTTPS certificate fingerprint on the serial console, requires an administrator password of at least 16 bytes, and stores only a PBKDF2-HMAC-SHA-256 hash. Five wrong tokens in a minute lock setup for 60 seconds, and the session expires after 15 minutes.

Beyond provisioning, the interface covers discovery, IDS policy and allowlists, a CVE byte-signature editor, scanner jobs with cron scheduling, fuzzing jobs, diagnostics, a serial monitor and reporting. Findings leave the device through six reporters: file, serial, MQTT, webhook, email and GPIO. Eighteen markdown pages of illustrated user guide, index included, document those screens against the running v0.1.0 interface.

What Keeps the Tool Off the Process

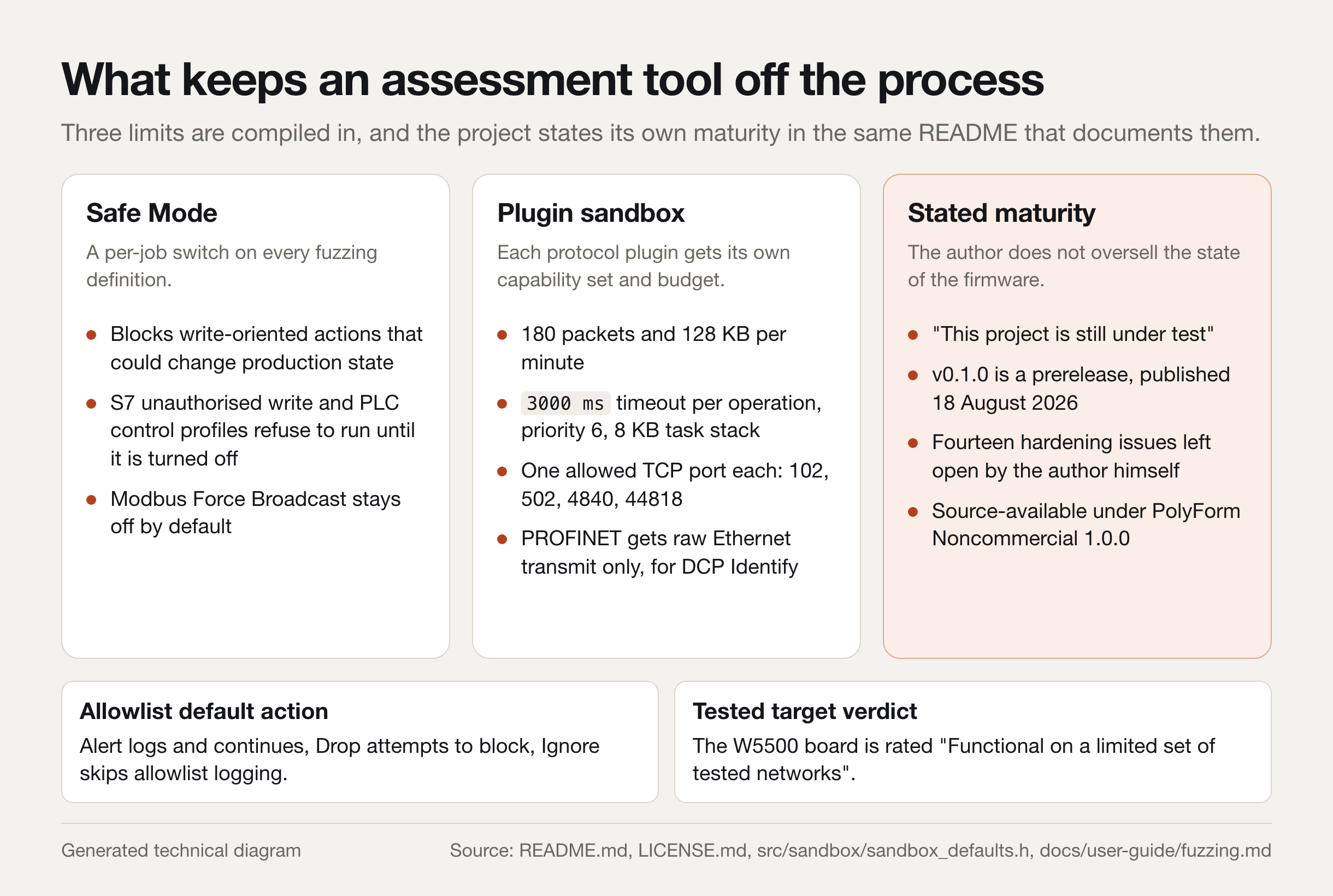

Generated technical diagram of the guard rails, drawn from the README, sandbox_defaults.h and the fuzzing guide.

Every fuzzing job carries a Safe Mode flag that blocks write-oriented actions, and the profiles that can stop a PLC refuse to run until it is switched off. Underneath, each protocol plugin runs against its own sandbox policy: 180 packets and 128 KB per minute, a 3000 ms timeout per operation, priority 6, an 8 KB task stack, and exactly one permitted TCP port. PROFINET gets no TCP at all, only raw Ethernet transmit for DCP Identify.

Where This Fits, and What It Is Not

The repository is honest about its stage. The README warns above the hardware table, "This project is still under test", v0.1.0 is a prerelease published on 18 August 2026, and the fourteen open issues were all filed by the author himself on 17 August as a hardening backlog covering watchdog registration, crash diagnostics, HTTPS lifecycle and packet-pipeline load. External validation is absent: one star, no forks, no watchers, and one download each for the three flash bundles.

Licensing matters here more than usual. LICENSE.md is the PolyForm Noncommercial License 1.0.0 with the notice "Copyright 2026 Francesco Adriani", and the README states plainly that this is "source-available research software under the PolyForm Noncommercial License 1.0.0, not OSI-approved open-source software". Anyone planning a commercial deployment needs a separate arrangement with the author.

For a WIZnet reader the value is the pattern rather than the product. A W5500 is normally chosen for its hardwired TCP/IP sockets, and here it is doing the opposite job: the sockets are bypassed, the MAC filter is switched off, and the chip becomes a Layer 2 capture front end for an ESP32-S3 that still needs its Wi-Fi for something else. Continuous integration builds all three targets on every push, and each release ships a factory image, an app image, a flash bundle and a manifest per board with a sorted SHA256SUMS.txt, so the pattern is reproducible by anyone with the same board.
